Quick Details
-
Brand Name:
-
MEATROL
-
Model Number:
-
ME435
-
Accuracy Class:
-
1.0
-
Output Voltage:
-
85-240V
-
Operating Temperature:
-
-20 ~ 70
-
Dimensions:
-
96*96
-
Rated Current:
-
1
-
Color:
-
White
-
Display:
-
6 Digits
-
Name:
-
power analyzer/electric energy meter /energy monitor
-
Standard:
-
IEC62053-21
-
Frequency:
-
50Hz
-
Function:
-
Measurement
-
Communication:
-
RS485 Serial
-
Rated voltage:
-
AC 100V
-
Certificate:
-
ISO9001:2000
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
0-9999.9
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
MEATROL
-
Model Number:
-
ME435
-
Accuracy Class:
-
1.0
-
Output Voltage:
-
85-240V
-
Operating Temperature:
-
-20 ~ 70
-
Dimensions:
-
96*96
-
Rated Current:
-
1
-
Color:
-
White
-
Display:
-
6 Digits
-
Name:
-
power analyzer/electric energy meter /energy monitor
-
Standard:
-
IEC62053-21
-
Frequency:
-
50Hz
-
Function:
-
Measurement
-
Communication:
-
RS485 Serial
-
Rated voltage:
-
AC 100V
-
Certificate:
-
ISO9001:2000
|
Specification |
|||
|
Model |
ME435 |
||
|
Product component type |

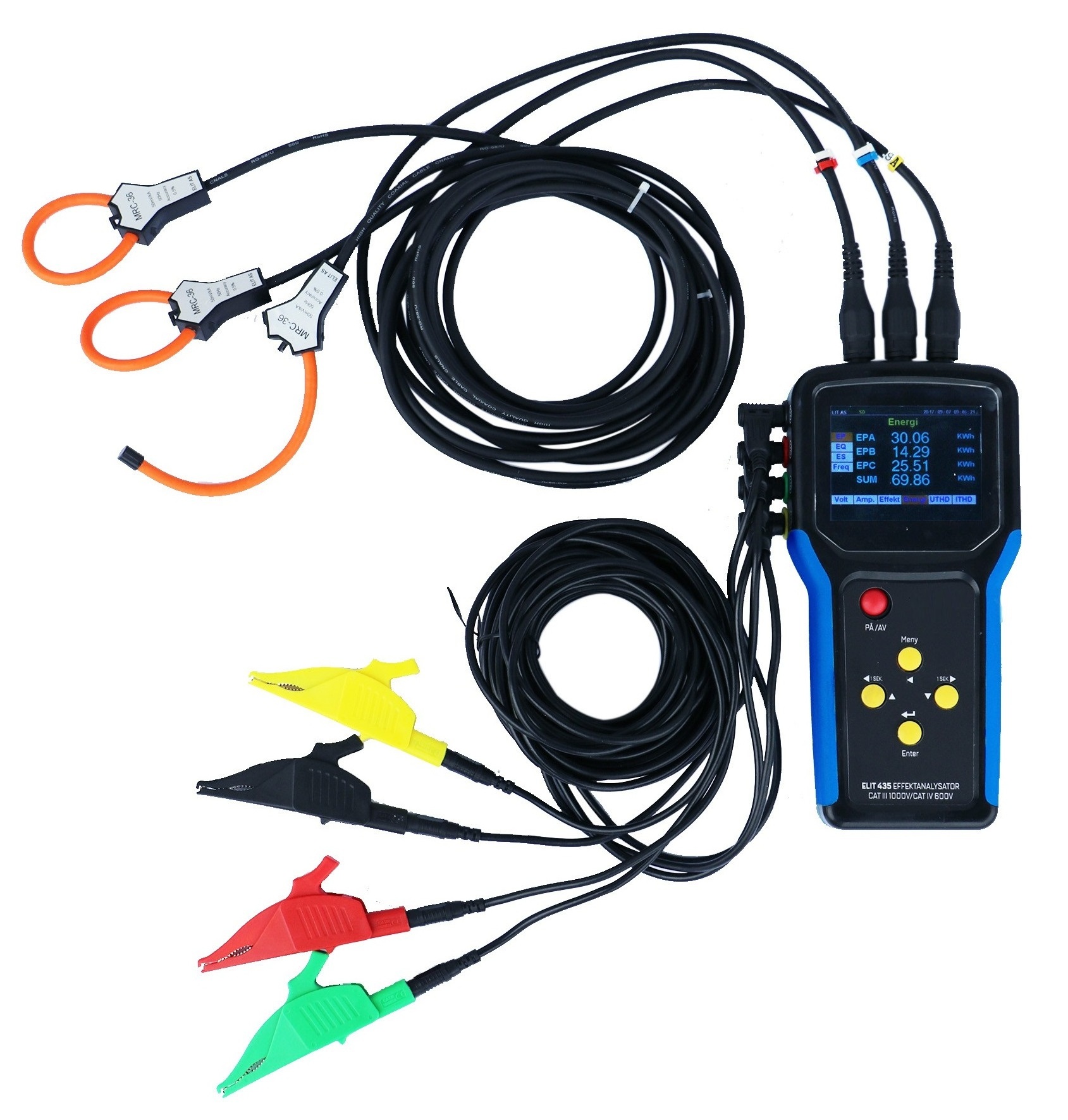

Handhold three phase rogowski power quality analyzer |
||
|
Poles description |
3PH4W 3PH3W 1 PH2W (L-N); 1PH2W( L-L );1PH3W(L-L-N) |
||
|
Device application |
Power analysis Energy meter |
||
|
Input type |
BNC terminal 333mV CT BNC terminal Rogowski coil |
||
|
Display |
3.5 inch TFT screen display |
||
|
Sampling rate |
8k samples per second |
||
|
Harmonic |
52th Max |
||
|
Display characteristics |
|||
|
Feature |
3.5 Inch TFT screen display 320*480 |
||
|
Mechanical characteristics |
|||
|
Weight |
350 g |
||
|
Dimension |
L*W*D: 21.5*10*3.5CM |
||
|
Record |
|
|
Record interval |
1s to 9999s( default 1min ) |
|
Record format |
csv |
|
Record capacity |
Micro SD card 1GB( default ) |
|
|
Store about 1K B ytes data each time |
|
|
record 2 years ( 1min & 1GB ) |
|
Record data |
Date&time, Voltage(V),UTHD(%),Current(A),ITHD (%), ITHD2(%),ITHD3(%), ITHD4(%), ITHD5(%), ITHD6(%), ITHD2(A), ITHD3(A), ITHD4(A), ITHD5(A), ITHD6(A) Frequency(Hz), PF(power factor), Active Power(W),Reactive Power(Var),Apparent Power(Va), Active Energy(Wh),Reactive Energy(Varh),Apparent Energy(Vah) |
|
Measurement accuracy |
||
|
Current |
0.5% from 1 % to 120% (don ’ t ensure accuracy when <10A) |
|
|
Rated current |
5 level selectable. 100A (0.5% from 10A to 120A) 600A (0.5% from 10A to 72 0A) 1000A(0.5% from 10A to 1200A) 3000A(0.5% from 30A to 3600A) 6000A(0.5% from 60A to 7200A) |
|
|
Rogwoski coil specification |
100A |
MRC-16 |
|
600A |
MRC-36 |
|
|
1000A |
Y-FCT-200 or Y-FCT-350 or NRC-100 |
|
|
3000A |
NRC-150 or Y-FCT-510 |
|
|
6000A |
NRC-200 or Y-FCT-800 |
|
|
Voltage |
0.2% from 8 0V to 40 0V (or 100 to 500V) |
|
|
Power factor |
±0.005 from 10% to 120% |
|
|
Active/Apparent Power |
IEC62053-22 Class 0. 5 |
|
|
Reactive power |
IEC62053-21 Class 2 |
|
|
Frequency |
0.01% from 45 to 65Hz |
|
|
Active energy |
IEC62053-22 Class 0. 5 s |
|
|
Reactive energy |
IEC62053-21 Class 2 |
|
|
Measurement arrange |
||
|
Measured voltage |
80 V to 40 0V AC (or 100 to 500V) |
|
|
Frequency range |
50/60 H z |
|
|
Power Supply |
||
|
Power |
4*AA battery(working time: approx. 7hours) |
|
|
5V-9V DC power supply(included adaptor) |
||
|
power consumption |
||
|
Screen Backlight On |
1100mW |
|
|
Screen Backlight Off |
900mW |
|
|
Wire diameter for terminals |
||
|
Current input |
BNC connector |
|
|
Voltage input |
banana plug |
|
|
DC power supply |
DC 5.5*2.1 plug |
|
Order code
Coil:
Final Code= Coil model+Coil length + Output ratio tolerance + Signal cable length
For example:
Y-FCT-350-100-2m is Y shape connector,coil length 350mm,output 100mV/kA@50Hz 0.5% tolerance,signal cable length is 2meter.
Integrator:
Final Code= In tegrator+Output form + Output value + R ated current +Power supply
For example:
D1.1-1-500A-12 is D1 integrator,AC voltage output,500A rated,output 1V,power supply 12V DC
A01-1kA is A01 integrator,rated 1kA,output 1A,power supply 85-265V AC DC
