Quick Details
-
Optical Resolution:
-
0.10mm (4mil)
-
Scan Speed:
-
500 Scans/sec
-
Brand Name:
-
GTCODESTAR
-
Place of Origin:
-
Guangdong, China
-
Color:
-
white/black
-
Sensor:
-
Planar CMOS sensor 480 * 640
-
Light Source:
-
Red LED
-
Reading ability:
-
all standard 1d&2d bar codes(QR CODE)
-
Certification:
-
CE,ROHS,FCC,ISO9001&ISO14001
-
Scanning Angle:
-
Rotation 360°, elevation ± 55°, deflection ± 55°
-
Application:
-
Supermarket, Logistics, Hospital E-payment
-
Weight:
-
291.0g±5g
-
Size(L*W*H):
-
L * W * H:106.2 * 105.0 * 155.3(unit:mm)
-
Shell material:
-
ABS+PC
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4 Size
-
Optical Resolution:
-
0.10mm (4mil)
-
Scan Speed:
-
500 Scans/sec
-
Brand Name:
-
GTCODESTAR
-
Place of Origin:
-
Guangdong, China
-
Color:
-
white/black
-
Sensor:
-
Planar CMOS sensor 480 * 640
-
Light Source:
-
Red LED
-
Reading ability:
-
all standard 1d&2d bar codes(QR CODE)
-
Certification:
-
CE,ROHS,FCC,ISO9001&ISO14001
-
Scanning Angle:
-
Rotation 360°, elevation ± 55°, deflection ± 55°
-
Application:
-
Supermarket, Logistics, Hospital E-payment
-
Weight:
-
291.0g±5g
-
Size(L*W*H):
-
L * W * H:106.2 * 105.0 * 155.3(unit:mm)
-
Shell material:
-
ABS+PC
HOT SELLING

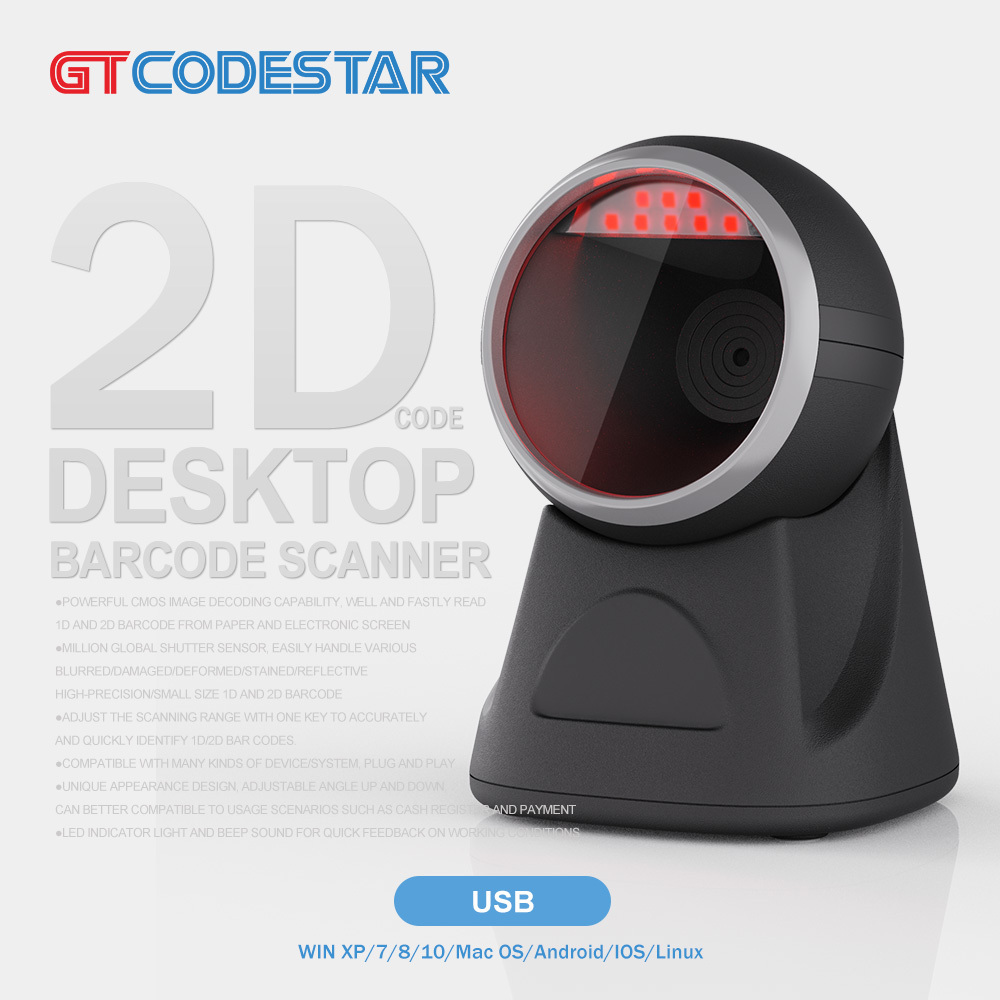

Desktop 2D Image Barcode Scanner
Technical Parameters
| GT-8801 Technical Parameter | |||||||
| Model | GT-8801Technical Parameter | ||||||
| Item | Wired 2D Image Desktop barcode scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+TPU | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 0.26A(Standby);0.29A(Operating);0.33A(Max)[Average] | ||||||
| Power consumption | 1.30W(Standby);1.45W(Operating);1.65W(Max)[Average] | ||||||
| Weight | 291.0g±5g | ||||||
| Size | L * W * H:106.2 * 105.0 * 155.3(unit:mm) | ||||||
| Color | Black,white | ||||||
| Performance Parameter | |||||||
| Interface | USB | ||||||
| System supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language supported |
English; Belgium; Finland; France; Germany; Italy; Sweden; Britain; Denmark; Norway; Spain; Portugal; Turkey Q; Turkey F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; Hungary; Netherlands; Poland; Romania; Slovakia;
[Support virtual keyboard] |
||||||
| Sensor | Planar CMOS sensor 480 * 640 | ||||||
| Light Source | Red LED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | 85cm/sec[10mil QR] | ||||||
| Resolution | Code39 ≥5mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Triggle Mode | Auto-sensing | ||||||
| Prompt Mode | Buzzer+Indicator Light(LED) | ||||||
| Scanning Angle | Rotation 360°, elevation ± 55°, deflection ± 55° | ||||||
| Invoice Code supported | Support | ||||||
| Print Contrast | ≥30% | ||||||
| Decoding Capability | 1D |
Interleaved 2 of 5 ITF-6 ITF-14 ISB-128 Code 11 UCC/EAN-128 GS1 Databar Industrial 2 of 5 Matrix 2 of 5 Code 32
Code 128 EAN-13 EAN-8 Code 39 UPC-A Codabar Standard 2 of 5 Plessey MSI-Plessey UPC-E Code 93 GS1 composite code |
|||||
| 2D |
PDF417 Data Matrix QR Code Micro PDF417
HanXin AZTEC Maxicode Micro QR |
||||||
| Scanning Depth |
QR Code 12.50mil(7bit):3cm - 12cm
PDF417 9.17mil(7bit):2cm - 15cm Data Matrix 12.50mil(8bit):2cm - 7cm Code 128 7.50mil(15bit):2cm - 10cm EAN13(10mil):2cm - 16cm |
||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.2m free fall on concrete surface | ||||||
| Ambient light | 0→100000Lux | ||||||
| International Certification | |||||||
