Quick Details
-
Brand Name:
-
KATU
-
Model Number:
-
LS500
-
Measuring range (guide bar length L) ::
-
0-2m Optional
-
Measuring medium::
-
Corrosive liquid compatible with stainless steel 304
-
Supply voltage::
-
12... 30Vdc
-
Communication output::
-
IO-Link/RS485
-
Protection level::
-
IP67
-
Outlet mode::
-
M12x1 connector
-
Accuracy::
-
10mm/5mm
-
Medium temperature::
-
-20... 85°C
-
Ambient temperature::
-
-20... 80°C
-
Storage temperature::
-
-30... 80°C
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KATU
-
Model Number:
-
LS500
-
Measuring range (guide bar length L) ::
-
0-2m Optional
-
Measuring medium::
-
Corrosive liquid compatible with stainless steel 304
-
Supply voltage::
-
12... 30Vdc
-
Communication output::
-
IO-Link/RS485
-
Protection level::
-
IP67
-
Outlet mode::
-
M12x1 connector
-
Accuracy::
-
10mm/5mm
-
Medium temperature::
-
-20... 85°C
-
Ambient temperature::
-
-20... 80°C
-
Storage temperature::
-
-30... 80°C
Products Description
Product principle

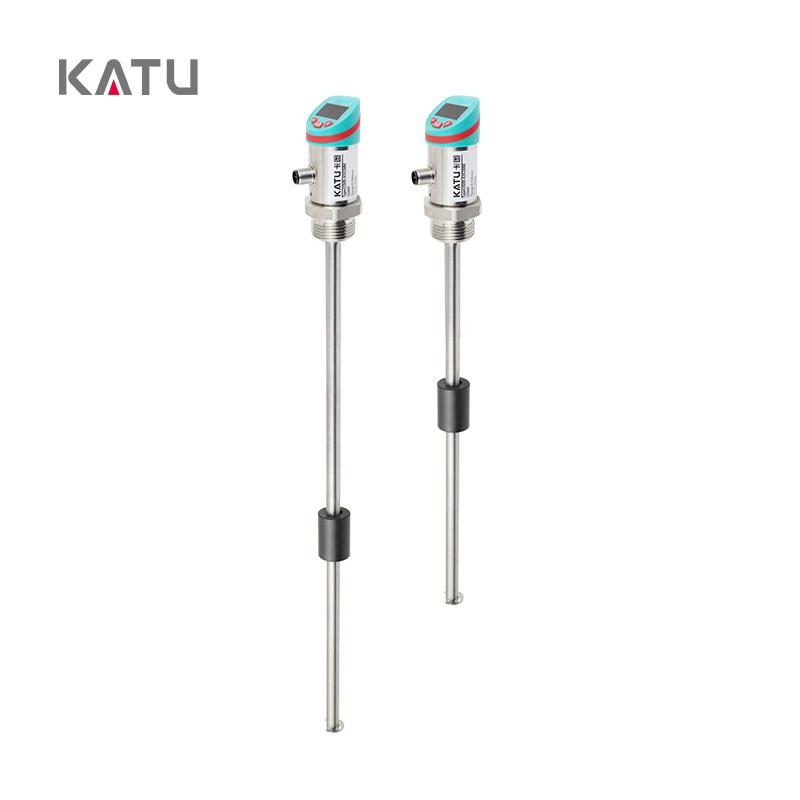

LS500 series adopts magnetic induction technology sensor for liquid level measurement, and the signal is converted into standard industrial electrical signal output and display after processing by the rear processing circuit. The float is equipped with Hall elements in a closed non-magnetic conductive stainless steel tube, and the float is equipped with a ring magnetic ring, and the float moves with the rise or fall of the liquid level, thereby triggering or releasing the switch in the stainless steel tube and issuing a switching signal.
|
Wiring protection:
|
Wiring protection:
|
reverse phase, overload, short circuit protection
|
|
|
Medium density:
|
Medium density:
|
≥0.7g/cm
|
|
|
No-load current consumption:
|
No-load current consumption:
|
maximum 40mA,24Vdc power supply
|
|
|
Switch output
|
Output type:
|
PNP/NPN switchable,
Normally open (NO)/Normally closed (NC) can be set
|
|
|
|
SP1, SP2 load:
|
< 11/24VDC
|
|
|
|
Response time:
|
＜10ms
|
|
|
Current mode
|
Analog output:
|
≤±0.5% range
|
|
|
|
Output type:
|
4... 20mA can be configured
|
|
|
|
Load RA:
|
≤0.5KOhm
|
|
|
|
Linearity:
|
≤0.5% range
|
|
|
Display
|
Design:
|
Red 4-bit 12mm high brightness LED
|
|
|
|
Display range:
|
-1999... 9999
|
|
|
Material
|
Watch head housing:
|
engineering plastic
|
|
|
|
Flame retardant class:
|
UL-94 V-0
|
|
|
|
Housing:
|
stainless steel 304
|
|
|
|
Medium contact part:
|
stainless steel 304/NBR
|
|
