Quick Details
-
Dimension(L*W*H):
-
7.1*2.44*3.3m
-
Power:
-
82KW
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Weight:
-
7500 kg
-
Dimension(L*W*H):
-
7.1*2.44*3.3m
-
Power:
-
82KW

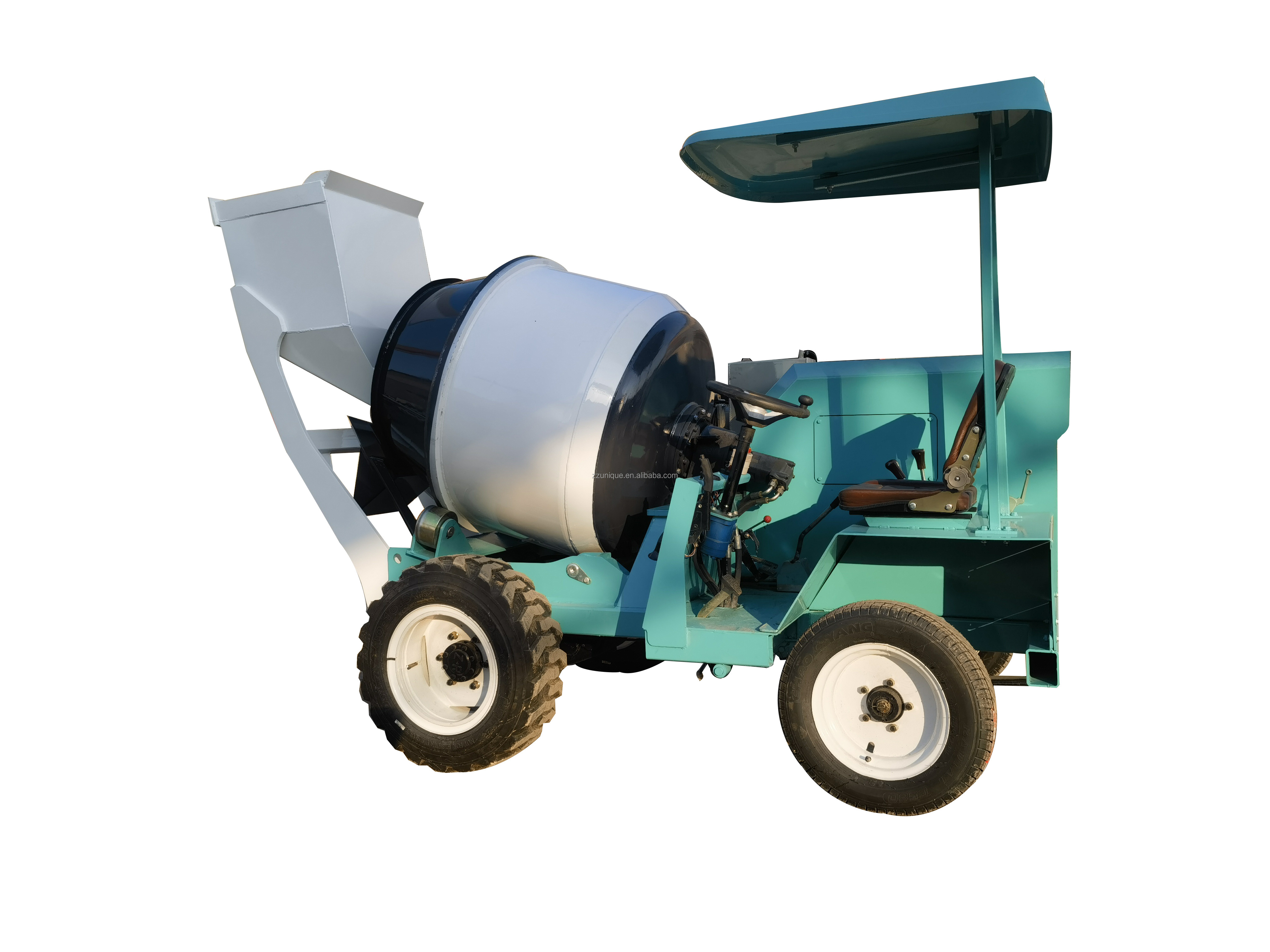

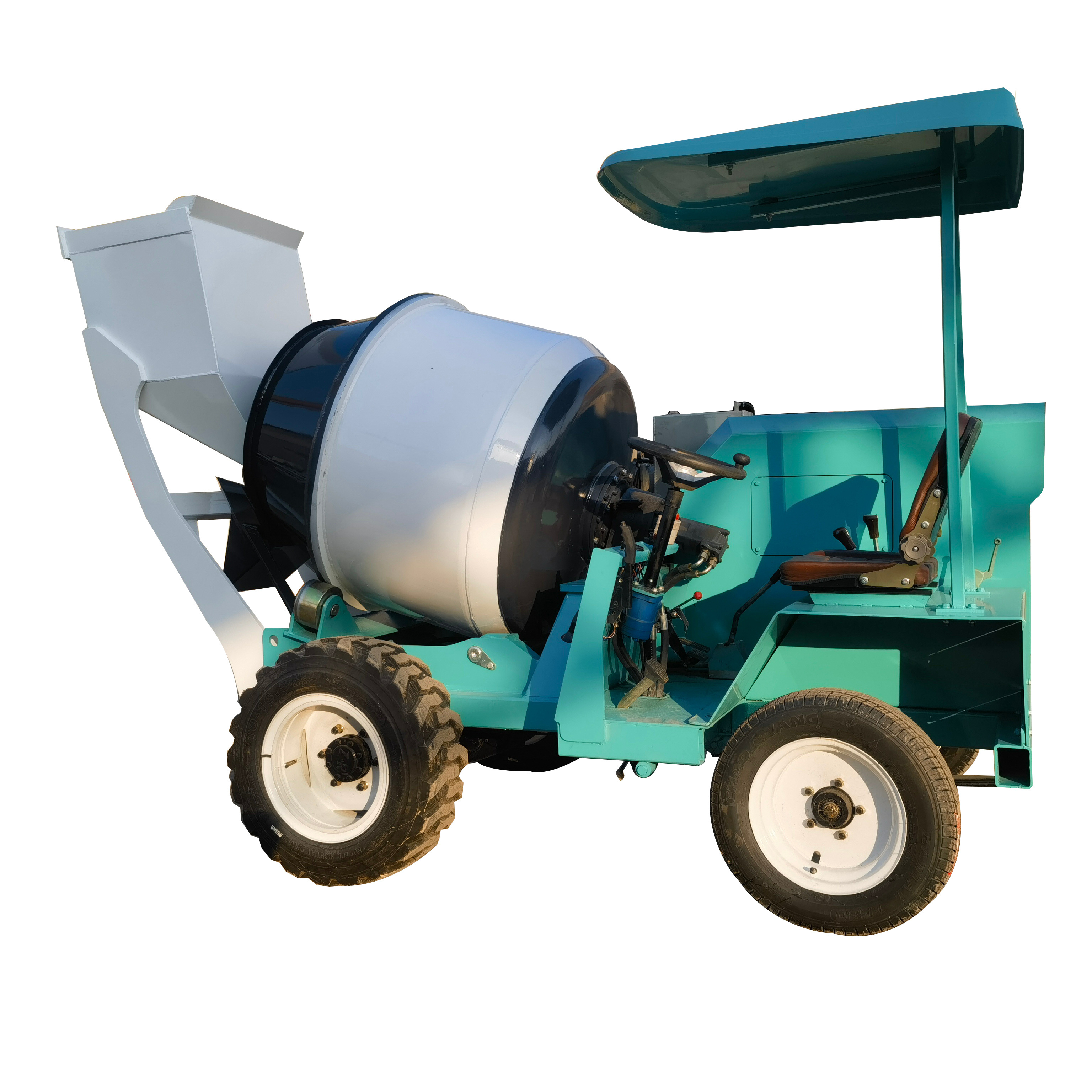

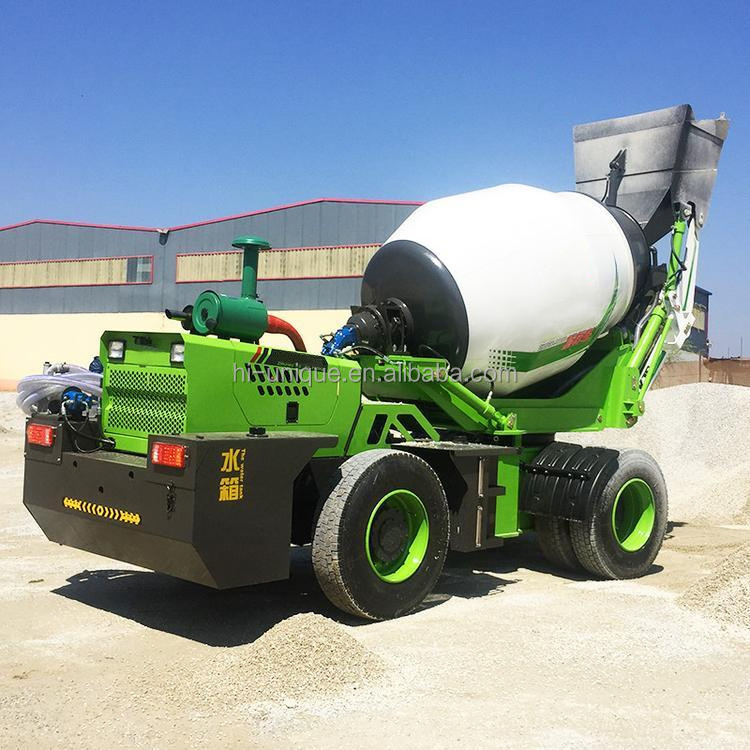

China Manufacturers Price Small Self Loading Concrete Cement Mixer Truck For Sale
Advanced Features of Self Loading Concrete Mixer:
Full in-cab machine control ensure easy and comfortable operation
Easy maintenance save labors for construction projects.
No dead angle assures safe and easy operation
Automatic loading and discharging largely improve working efficiency.
Electronic weighing system with printer
Efficient and reliable after-sale service
Parameters of Mobile Concrete Mixer:
| Equipment Model | JBC3.5 |
| Drum geometrical capacity | 3580L |
| Discharging Capacity | 3200L |
| Engine Model | YCD4105 |
| Rated Power | 85kw |
| Gear | 4 forward 4 back |
| Fuel tank | 75L |
| Total hydraulic system capacity | 75 liters |
| Oil tank | 16 liters |
| Hydraulic Pump | Parker pump |
| Water tank | 620L |
| Overall dimensions(L*W*H) | 7800*2720*3300 |
| Wheelbase (mm) | 2615 |
| Curb Weight (kg) | 7200 |
| Drum Rotary | 270º |
| Drum Mixing Speed (r/min) | 13 |
| Max.Speed (km/h) | 35 |
| Maximum grade | 30º |
| Other configuration | Air conditioner,Hydraulic water pump |
