Quick Details
-
Brand Name:
-
DT Imaging
-
Model Number:
-
X-Panel 1613a FDI
-
Properties:
-
Medical X-ray Equipments & Accessories
-
Application:
-
lithium battery chip wire bonding inspection
-
Texture:
-
CSI/GOS
-
Pixels:
-
1024 * 1248
-
Pixel Pitch:
-
125 μm
-
Active Area:
-
160 * 128 mm
-
Data Interface:
-
Wired
-
MOQ:
-
1set
-
Brand:
-
DT Imaging
-
Function:
-
X Ray Inspection
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DT Imaging
-
Model Number:
-
X-Panel 1613a FDI
-
Properties:
-
Medical X-ray Equipments & Accessories
-
Application:
-
lithium battery chip wire bonding inspection
-
Texture:
-
CSI/GOS
-
Pixels:
-
1024 * 1248
-
Pixel Pitch:
-
125 μm
-
Active Area:
-
160 * 128 mm
-
Data Interface:
-
Wired
-
MOQ:
-
1set
-
Brand:
-
DT Imaging
-
Function:
-
X Ray Inspection
Products Description
|
Name
|

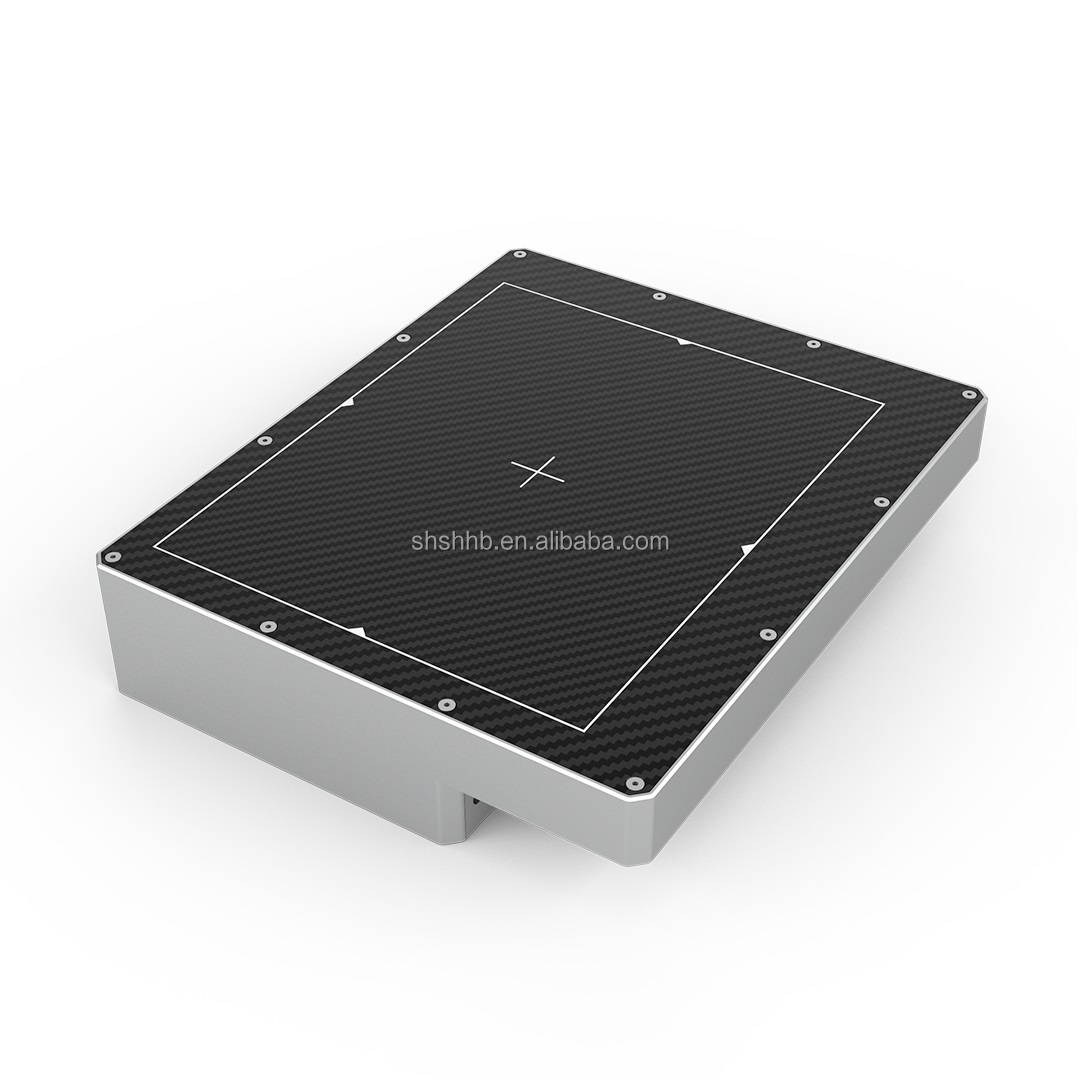

X-Panel 1613a FDI 160mmx130mm Flat Panel X-ray Detector
|
|
Model Number
|
X-Panel 1613a FDI
|
|
Sensor
|
A-Si (amorphous silicon)
|
|
Active Area
|
160 x 128 mm
|
|
Data Interface
|
Gigabit Ethernet
|
|
Energy Range
|
40-160KV / 350kv
|
|
Application
|
nondestructive testing (NDT), electronics inspection, lithium battery inspection and industrial CT
|
Sensor Protection Material:
Carbon Fiber
Housing Material:
Aluminum Alloy
Dimension: 196 x 162 x 42.7 mm
Weight: 1.5Kg
Production and Package
Certifications
We have obtained 28 patents
Feedback and Effect Pictures
Exhibition
Specifications
|
Technology
|
|
|
|
Sensor
|
A-Si
|
|
|
Scintillator
|
GOS / CSI
|
|
|
Active Area
|
160 x 128 mm
|
|
|
Pixel Matrix
|
1024 x 1248
|
|
|
Pixel Pitch
|
125 μm
|
|
|
AD Conversion
|
16 bits
|
|
|
Interface
|
|
|
|
Data Interface
|
Gigabit Ethernet
|
|
|
Exposure Control
|
Pulse Sync In / Pulse Sync Out
|
|
|
Mode
|
Software Mode / HVG Sync Mode / FPD Sync Mode
|
|
|
Frame Speed
|
30fps
|
|
|
Operating System
|
Windows7 / Windows10 OS 32 bits or 64 bits
|
|
|
Technical Performance
|
|
|
|
Resolution
|
4.0 lp/mm
|
|
|
Energy Range
|
40-160 KV
|
|
|
Lag
|
0.8% @1st frame
|
|
|
Dynamic Range
|
≥ 86dB
|
|
|
Sensitivity
|
460 lsb/uGy
|
|
|
SNR
|
48 dB @(20000lsb)
|
|
|
MTF
|
75% @(1 lp/mm)
|
|
|
|
46% @(2 lp/mm)
|
|
|
|
27% @(3 lp/mm)
|
|
|
DQE
|
64% @(0 lp/mm)
|
|
|
|
43% @(1 lp/mm)
|
|
|
|
30% @(2 lp/mm)
|
|
|
Mechanical
|
|
|
|
Dimension(HxWxD)
|
196 x 162 x 42.7 mm
|
|
|
Weight
|
1.5 Kg
|
|
|
Sensor Protection Material
|
Carbon Fiber
|
|
|
Housing Material
|
Aluminum Alloy
|
|
|
Environmental
|
|
|
|
Temperature Range
|
10~35℃(operating); -10~50℃(storage)
|
|
|
Humidity
|
30~70% RH(non-condensing)
|
|
|
Vibration
|
IEC/EN 60721-3 class 2M3(10~150 Hz, 0.5 g)
|
|
|
Shock
|
IEC/EN 60721-3 class 2M3(11 ms, 2 g)
|
|
|
Dust and Water Resistant
|
IPX0
|
|
|
Power
|
|
|
|
Supply
|
100~240 VAC
|
|
|
Frequency
|
50/60 Hz
|
|
|
Consumption
|
10W
|
|
|
Application
|
|
|
|
Industry
|
SMT, Electronics, Lithium Battery Chip and Wire Bonding Inspection
|
|
