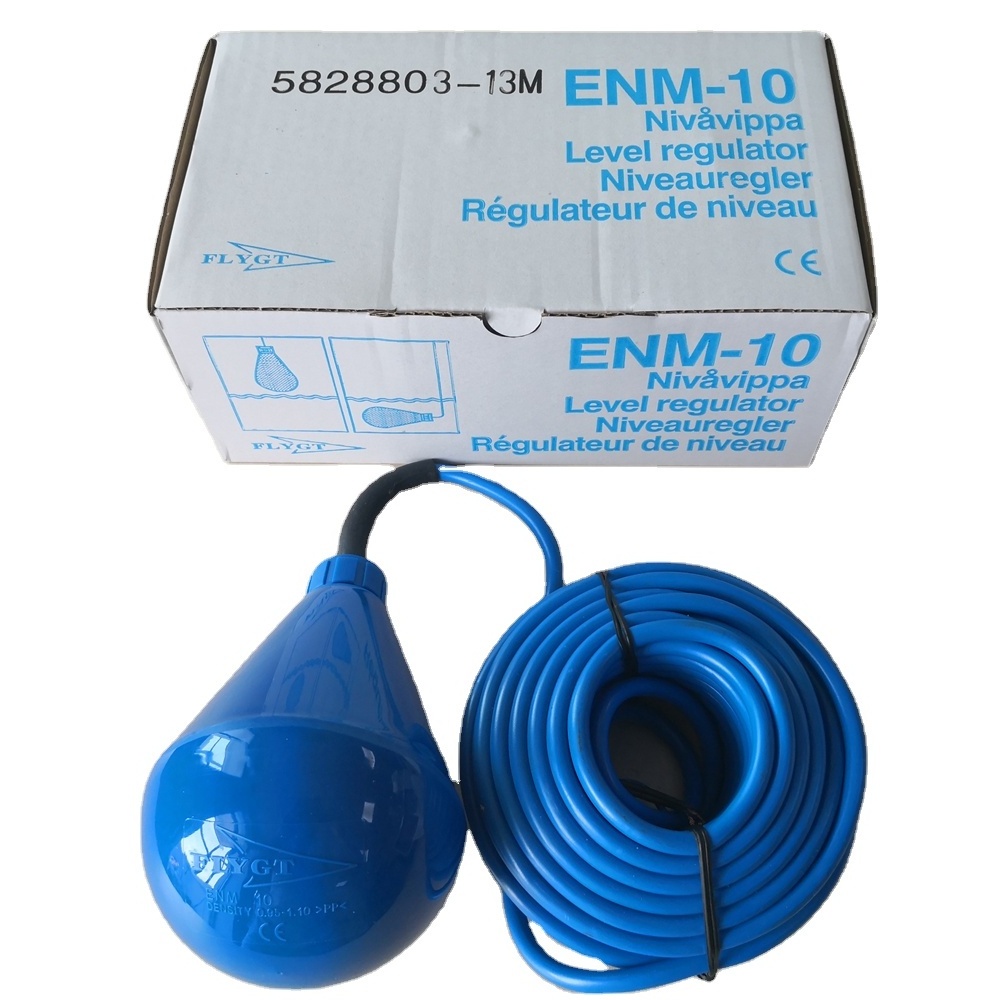

FLYGT ENM-10 Original water tank float switch water level automatic controller with 10m 13m 15m 20m cable

Technical parameters:

Operating temperature: 0 to 60℃

Specific gravity of liquid level: as small as 0.65 g/cm ³, as large as 1.5g/cm ³

protection grade : IP68

cable length 10m/13m/15m/20m

AC resistance load of micro switch : 250V 10A

breaking energy: Ac inductive load, 250V, 3A DC 30V, 5AEM-10

Level switch Material: main PP, protective elbow EPDM, cable PVC or CR (Neoprene rubber)
EM-10 Level switch Features :

Easy way to control level! Hammerless suspension mounting. Long-term stability. Suitable for water treatment engineering and pump control; Em-10 Liquid level switch; A mechanical switch is placed in a plastic housing that hangs freely at the required height of its own cable. When the liquid level reaches the controller, the plastic case tilts and a mechanical switch closes or cuts the circuit, starting or shutting down a pump or activating an alarm. No wear and tear, no maintenance required! In sewage pumping stations, where surface water is pumped and drained, the EM-10 is actually a good solution
in most level control applications.

Em-10 Float level switch Wiring:
Usually the level regulator is connected to the low voltage control circuit by a transformer. Use two regulators -- one for starting and one for stopping. If an alarm device is required at a given level, a third regulator can be connected. The same
regulator can be used for all functions.
