Quick Details
-
Model Number:
-
CWLCA2-2
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-10℃ to +80℃
-
Max. Current:
-
10A
-
Name:
-
Limit Switch
-
Humidity:
-
<95% RH
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TNHA
-
Model Number:
-
CWLCA2-2
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-10℃ to +80℃
-
Max. Current:
-
10A
-
Name:
-
Limit Switch
-
Humidity:
-
<95% RH

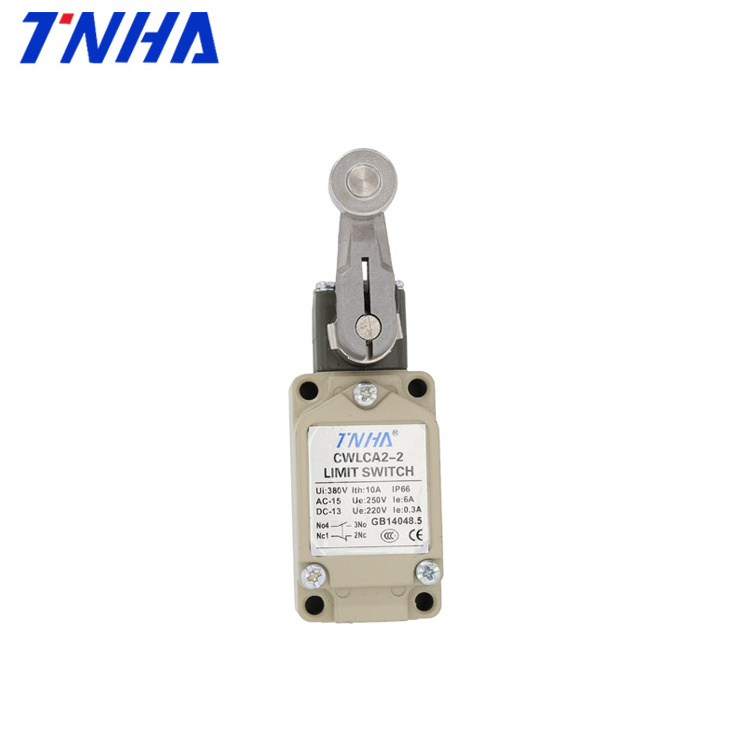

Product Pictures
Product Description
| Model No | CWLCA2-2 |
| Name | Limit switch |
| Operation speed | 1mm-2m/s |
| Operating frequency | Mechanical:120operations/minute Eectrical: 30 operations/minute |
| Contact resistance | 15mΩmax.(initial value) |
| Insulation resistance | 100mΩmin.(at 500VDC) |
| Dielectric strength | 1000VAC,50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 Hz for 1 minute between current-carrying | |
| and noncurrent-carrying metal parts | |
| 500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
| Vibration | 10-55Hz,1.5mm double amplitude |
| Shock |
Mechanical durable: 1,000m/Sec2 (about 100G'S) Malfunction :300m/Sec2(about 30G'S) |
| Life |
Mechanical:15,000,000 operations above (under rated OT)
Electrical:500,000 operations above |
| Weight | About 275g |
| Degree of protection | IEC specification: IP66 |
