Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HM Group
-
Model Number:
-
HM-FR006
-
Depth:
-
2.5 mm
-
Weight Capacity:
-
1100KG/2400LB
-
Width:
-
1100 mm
-
Height:
-
1600 mm
-
Product warranty:
-
1 year
-
Dimension:
-
1500x1100x1600 (L*W*H ) mm
-
Stacking:
-
4(open)-20(closed) high
-
Product shelf life:
-
Up to 3~5 years against proper handing
-
Surface treatment:
-
Black/colorful powder coating
-
Load in 1*40HQ:
-
288 sets
-
Usage:
-
Warehouse, logistic, Auto industry
-
Available accessories:
-
Forklift guide, bottom wire mesh, etc.
Quick Details
-
Type:
-
Vertical Type
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HM Group
-
Model Number:
-
HM-FR006
-
Depth:
-
2.5 mm
-
Weight Capacity:
-
1100KG/2400LB
-
Width:
-
1100 mm
-
Height:
-
1600 mm
-
Product warranty:
-
1 year
-
Dimension:
-
1500x1100x1600 (L*W*H ) mm
-
Stacking:
-
4(open)-20(closed) high
-
Product shelf life:
-
Up to 3~5 years against proper handing
-
Surface treatment:
-
Black/colorful powder coating
-
Load in 1*40HQ:
-
288 sets
-
Usage:
-
Warehouse, logistic, Auto industry
-
Available accessories:
-
Forklift guide, bottom wire mesh, etc.

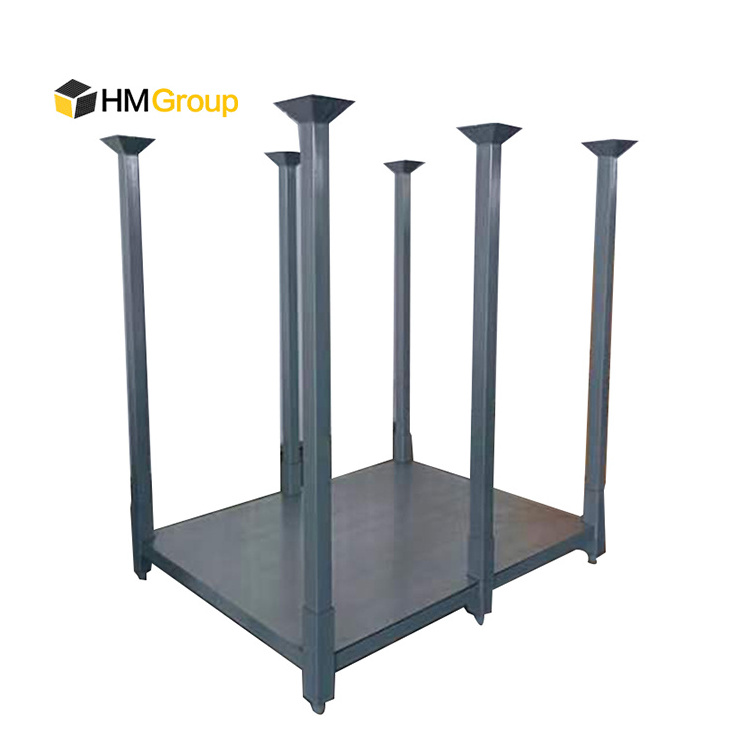

High Loading Capacity Warehouse Customized Movable Portable Stacking Pallet Rack
Stacking pallet rack are portable, stackable, and when not in use can be collapsible. Their corner posts safely support the sides of carpet rolls thus reducing product damage.
| Model No. | Exterior Dimension | Loading Capacity |
Loaded in 1x40'HQ |
| LxWxH | kg | pcs | |
| HM-FR001 |
1520x1380x1251 mm |
1500 | 82 |
| HM-FR002 | 1521x1000x1360 mm | 500 | 126 |
| HM-FR003 | 1540x1200x984 mm | 1000 | 90 |
| HM-FR004 | 1100x1100x900 mm | 1000 | 80 |
| HM-FR005 | 1500x1100x900 mm | 1100 | 320 |
| HM-FR006 | 1500x1100x1600 mm | 1100 | 288 |
| HM-FR007 | 48x48x36 inch | 1100 | 380 |
| Application area | Warehouse, logistics,auto, fabric industry | ||
| Stacking | 3-5 tiers | ||
| Finish | Powder coating color as per your request | ||
| Product features |
1. Welded steel structure, strong and durable 2. Foldable and stackable, easy to use 3. Can be stacking 3-5 high, folded to store and save space 4. Load capacity up to 1000kg, 2200lbs. 5. Improve product visibility 6. Two sides collapsible to save space |
||
Stacking pallet rack consist of a welded frame that is powder coated or galvanized. This frame is available in different sizes or can be customized to suit the dimensions of your goods.
There are different kinds of Stacking pallet rack in these categories that offer a wide range of flexible features.
