Quick Details
-
Max Speed:
-
OTHER
-
Voltage:
-
110/220/240(v)
-
Place of Origin:
-
Other Country
-
Brand Name:
-
DJVAC/DJPACK
-
Dimension(L*W*H):
-
525*256*250(mm)
-
Weight:
-
17 KG
-
Product Name:
-
Plastic Tray Sealing Machine
-
Material:
-
304 Stainless steel
-
Model:
-
DS-1
-
Frequency:
-
50/60 Hz
-
Production Cycle:
-
6-8 times/min
-
Net Weight:
-
17 kg
-
Certification:
-
CE,TUV,etc.
-
After Warranty Service:
-
Video technical support & Online support
-
After-sales Service Provided:
-
Video technical support & Online support
Quick Details
-
Packaging Type:
-
Tray
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Max Speed:
-
OTHER
-
Voltage:
-
110/220/240(v)
-
Place of Origin:
-
Other Country
-
Brand Name:
-
DJVAC/DJPACK
-
Dimension(L*W*H):
-
525*256*250(mm)
-
Weight:
-
17 KG
-
Product Name:
-
Plastic Tray Sealing Machine
-
Material:
-
304 Stainless steel
-
Model:
-
DS-1
-
Frequency:
-
50/60 Hz
-
Production Cycle:
-
6-8 times/min
-
Net Weight:
-
17 kg
-
Certification:
-
CE,TUV,etc.
-
After Warranty Service:
-
Video technical support & Online support
-
After-sales Service Provided:
-
Video technical support & Online support

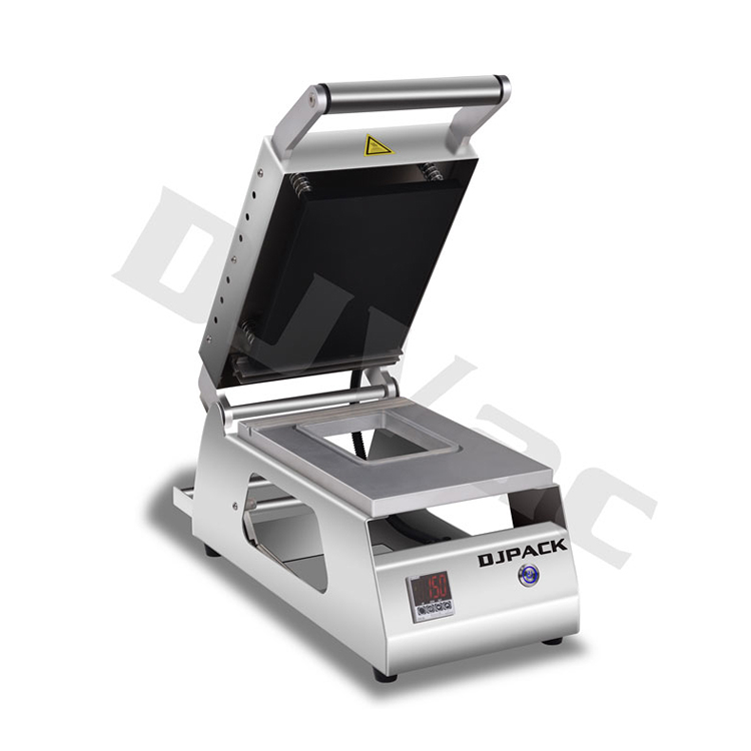

Direct Buy Factory DS-1 Food Plastic Tray Wrapping Map Sealing Machine
Product Description
|
Model
|
DS-1
|
DS-2
|
DS-3
|
DS-4
|
|
Max. Tray Dimension(mm)
|
250*180*100
|
240*150*100
|
270*220*100
|
260*190*100
|
|
Max. Width of Film(mm)
|
180
|
180
|
220
|
220
|
|
Max. Diameter of Film(mm)
|
160
|
160
|
160
|
160
|
|
Packing Speed(cycle/min)
|
6-8
|
6-8
|
6-8
|
6-8
|
|
Electrical Requirement(v/hz)
|
220/50 110/60
|
220/50 110/60
|
220/50 110/60
|
220/50 110/60
|
|
Consume Power(kw)
|
0.7
|
0.7
|
0.7
|
0.7
|
|
N.W(kg)
|
17
|
15
|
23
|
17
|
|
G.W(kg)
|
21
|
19
|
28
|
22
|
|
Machine Dimension(mm)
|
525*256*250
|
525*256*250
|
545*296*250
|
545*296*250
|
|
Shipping Dimensions(mm)
|
610*320*325
|
610*320*325
|
630*350*325
|
630*350*325
|
Description:
The Manual Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. It is an electrically heated, manual tray sealing machine, is used to seal the trays with lidding film. It is a simple and economical food packaging machine which is suitable for food shop and
small food processing workshop.
small food processing workshop.
Technical Characters
1.Stainless steel construction.
2.Tray mould fast replacement(DS-1/DS-3).
3.Electronic temperature controller.
4.Friendly and simply in operation for user.
5.Mould in customized dimension is acceptable to be made according to your own tray.
Main Products
WENZHOU DAJIANG VACUUM PACKAGING MACHINERY CO.,LTD.
manufactures vacuum packaging machine,modified atmosphere packaging machine,vacuum skin packaging machine,tray wrapper and other machine appliance.
