Quick Details
-
kw:
-
fiber opening machine
-
using for:
-
pillow fiber filling
-
size:
-
2200*550*980mm
-
capacity:
-
120-150kg/h
-
weight:
-
460kg
-
related machine:
-
fiber filling machine
-
motor:
-
3kw
-
filling machine capacity:
-
100kg/h
-
related machine 2:
-
cotton fiber machines
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
kw:
-
fiber opening machine
-
using for:
-
pillow fiber filling
-
size:
-
2200*550*980mm
-
capacity:
-
120-150kg/h
-
weight:
-
460kg
-
related machine:
-
fiber filling machine
-
motor:
-
3kw
-
filling machine capacity:
-
100kg/h
-
related machine 2:
-
cotton fiber machines

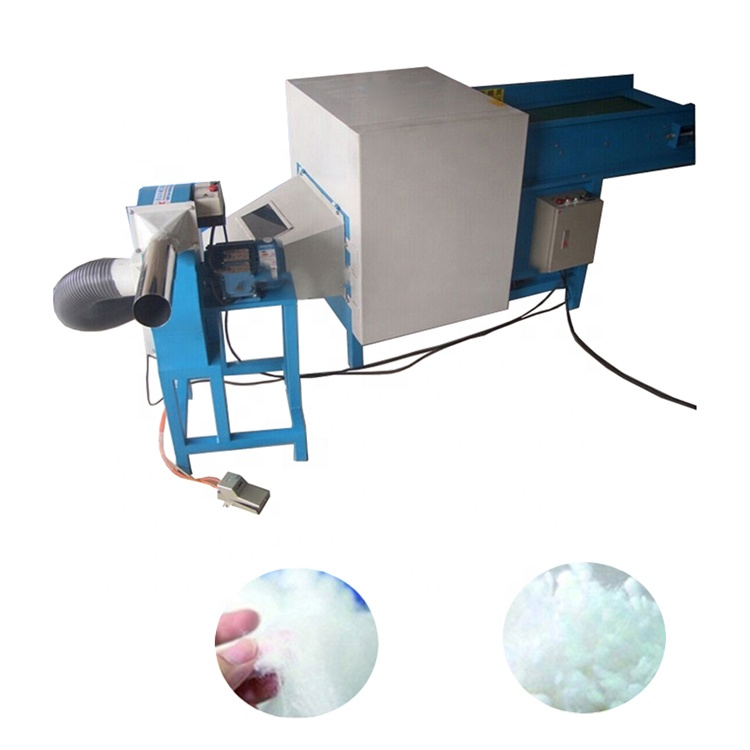

Automatic Pillows stuffing machine and poly ester fiber opening carding machine
It is mainly used for making pearl shaped fiber from conjugated siliconized hollow fiber. This kind of special fiber can be used for garments, comforters, pillows, toys, and make products look more rich and fluffy. The size and tension of fiber ball can be adjusted according to customer’s requirement.
2. Features of cotton fiber opening machine and filling machine for pillow
Step One: Cotton Fiber Opening machine to card fiber/ cotton into soft and smooth
Step Two: then via conveyor into mixing container
Step Three: fiber and cotton or other materials are mixed in mixing container; meantime the crusher crush sponge, and sponge also will going to the mixing container,
Step Four: then via blowers , to fill cushion /pillow or toy
3. Parameters of cotton fiber opening machine and filling machine for pillow
We have three models with different capacity.
MG-RQY-300A , MG-QRY-500A and MG-RQY-800A
|
Name |
Fiber opening machine |
Pillow Filler |
|
Model |
MG-RQY-300A |
MG-RTC-1.2 |
|
Dimension |
1900×350×950mm |
1050×7000×1050 |
|
Capacity |
90-100kg/h |
90-100Kg/h |
|
Voltage |
380V/50Hz/ Three Phase or 220Voltage/50HZ/Single Phase |
|
|
Weight |
340kg |
120Kg |
|
Motor |
3KW+0.25KW |
1.5KW +0.37kw |
|
Name |
Fiber Opener |
Filler Machine |
|
Model |
MG-RQY-500A |
MG-RTC-1.5 |
|
Dimension(mm) |
2600*550*1100mm |
1050×7000×1050 |
|
Capacity (kg/h) |
180-200kg/h |
180-200kg/h |
|
Motor(kw) |
4KW+ 0.75kw |
1.5kw |
|
Weight(KG) |
460KG |
120KG |
|
Name |
Fiber Opener |
Filler Machine(2sets ) |
|
Model |
MG-RQY-800A |
MG-RTC-1.5 |
|
Dimension(mm) |
2600*800*1200mm |
1050×7000×1050 |
|
Capacity (kg/h) |
280-300kg/h |
180-200kg/h |
|
Motor(kw) |
5.5kw+0.75kw |
1.5kw |
|
Weight(KG) |
760kg |
120KG |
4. More pictures of RQY series Fiber opening machine
MG-RQY-300A
MG-RQY-500A
MG-RQY-800A
5. Fiber opening machine in working
6. Final product of fiber opening machine
Packaging : Wooden Crate or Pallet or bare package in standard containers for export;
Shipping : All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
