Quick Details
-
Model Number:
-
SK10010
-
color:
-
black
-
Product name:
-
Gate water seal
-
Material:
-
natural rubber or synthetic rubber
-
Application:
-
water and electricity works
-
Certification:
-
ROHS,REACH
-
Function:
-
Sealing Effect
-
Design:
-
common, or can with ptfe film cladding
-
feature:
-
abrasion resistant, perfect sealing effect
-
Style:
-
Sealing Strip
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
skypro, skypro
-
Model Number:
-
SK10010
-
color:
-
black
-
Product name:
-
Gate water seal
-
Material:
-
natural rubber or synthetic rubber
-
Application:
-
water and electricity works
-
Certification:
-
ROHS,REACH
-
Function:
-
Sealing Effect
-
Design:
-
common, or can with ptfe film cladding
-
feature:
-
abrasion resistant, perfect sealing effect
-
Style:
-
Sealing Strip

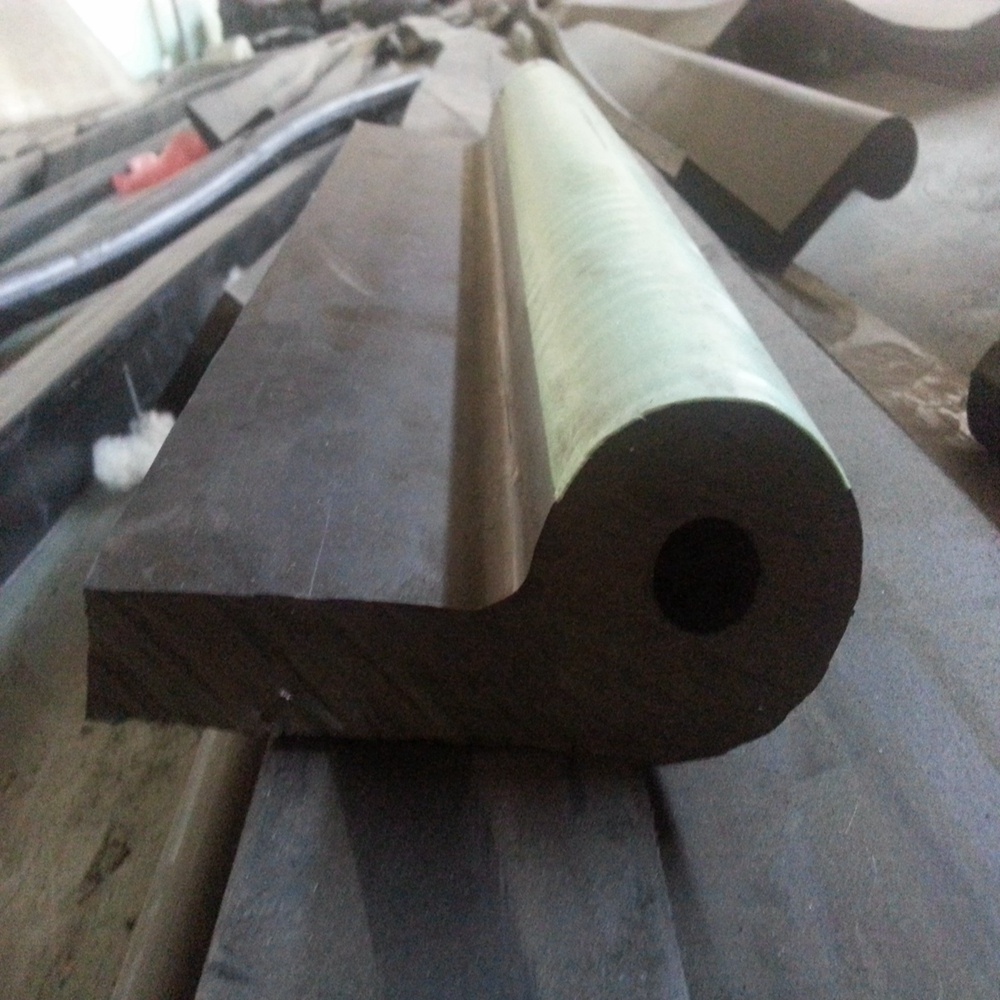

Good elasticity to ensure airtight sealing P shape PTFE rubber note dam water sealing gate stopper
rubber gate seals, is an important component of gate in hydropower engineering. It takes important part in keeping the gate sealed and no water leakage. It is also called waterstop rubber seals, P shape waterstop
Physical parameter:
| performance | unit | index | ||
| mpa | 1 | 2 | ||
| % | SF6674 | SF6474 | SF6572 | |
| hardness (IRHD) | % | 50+5 | ||
| tensile strength ,min | % | 18 | 13 | 14 |
| elongation at break, min | % | 450 | 400 | |
| deformation at compression, (70℃x22h), min | % | 40 | ||
| aging at hot air (70℃,96h), max | % | -20-10 | ||
| immersed into distilled water (70℃, 96h) quality change, max | % | 5 | ||
| adhesive strength (rubber and ptfe, 25mm wide sample), min | KX/M |
6
|
||
Application:
Gate seal, is also called P shape rubber water stop. It is important for hydroelectric projects gate sealing, and it's a critical component for ensuring gate sealing and no leakage.
Function:
water blocking, water stop and water sealing
Feature:
-elastic, can deform to suit specific conditions
-simple structure, tight sealing of water
-economic, and easy installation and change
-aging resistant, and long service
Types and sizes:
Type:
p type with round head, middle hole, p type with round head no hole, p type with square head middle hole, p type square head without middle hole, double p type with middle holes, double p type without holes, L type, L type with p head etc.
Size:
P30, P40, P45, P50, P60 etc.
customized sizes are available
Manufacturing:
It is made of natural or synthetic rubber, with some fillers, by valcanization at high temperature.
It can also with ptfe coating and fabric insertion.
Packing and transportation:
|
Packing way |
Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients |
|
Packing material |
Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary |
|
Shipping marks |
Neutral packing with printed marks. |
|
Delivery time |
15 days since receipt of PO and down payment |
|
Freight |
Sea(FCL & LCL) or air freight |
|
Special size |
We provide cutting services for special sizes |
|
Lamination |
We provides extra lamination with PSA, textiles or other materials. |
