Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hua Ming
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
28M*2.5M*5M
-
Power (kW):
-
37
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Certification:
-
CE ISO9001
-
Marketing Type:
-
New Product 2020
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
132:1
-
Screw Speed (rpm):
-
39 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hua Ming
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
28M*2.5M*5M
-
Power (kW):
-
37
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Certification:
-
CE ISO9001
-
Marketing Type:
-
New Product 2020

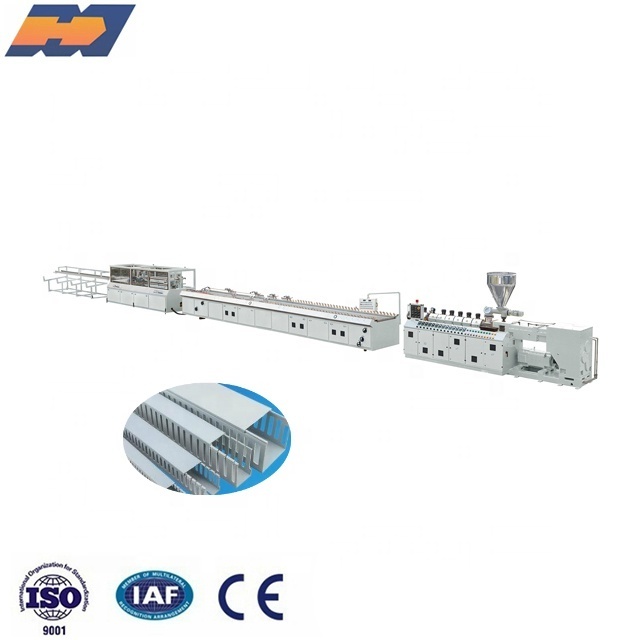

Professional PVC Profile Extrusion Line
Features:
--PVC profiles production line is mainly used to produce PVC profile, such as Ceiling, Deck, Floor, Cornice, Plank, Windows, Door frame and board and etc.
-- Conical twin-screw extruder, suitable for processing PVC powder and WPC raw materials.
--Changing the moulds to produce many kinds of different PVC profiles. .
--Auxiliary machine: Mixing unit, Mould, Vacuum calibration table, .Haul-off machine, Cutter and Stacker
--According to different mould specification, there are different length of table: 4m, 7.2m, 11m, etc.
--High plasticity state, low power consumption, high cost performance.
--Branded main components, such as: Siemens, ABB, Schneider, Air Tac, NSK, SKF and so on.
Main technical parameter
|
Model |
YF108 |
YF240 |
YF300 |
YF400 |
YF600 |
YF800 |
YF1000 |
|
Max. width of product (mm) |
108 |
240 |
300 |
400 |
600 |
800 |
1000 |
|
Extruder Model |
SJZ55/110 |
SJZ65/132 |
SJZ80/156 |
SJP93/31 |
SJP120/26 |
SJZ92/188 |
SJZ92/188 |
|
Max. Capacity (kg/h) |
150 |
250 |
290 |
350 |
550 |
580 |
580 |
|
Extruder power (kw) |
22 |
37 |
55 |
55 |
110 |
110 |
110 |
|
Cooling water (m3/h) |
5 |
7 |
7 |
8 |
10 |
12 |
15 |
|
Compressed air(m3/Min) |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.8 |
1 |
We can also manufacture various plastic sheet/board production machinery according to customers requirement .
Any futher information you want to know, contact me or send inquiry!
