>About ADV 116-1 Vertical/horizontal multi-use sand belt machine, easy operating, can adjust and change accordingly
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ADV
-
Voltage:
-
220 V/380V
-
Dimension(L*W*H):
-
700*580*380 mm
-
Weight (KG):
-
80
-
Power (kW):
-
1.5/2.2 kw
-
Product name:
-
ADV-116-1 knife belt grinder
-
Application:
-
Metal hardware grinding
-
Abrasive belt dimensions:
-
(1600-2100)*50 mm
-
Abrasive belt motor power:
-
1.5/2.2 kw(variable frequency drive)
-
Rubber wheel diameter*wide(D*W):
-
280*50mm
-
Metal contact wheel diameter*wide:
-
60*60 mm
-
Spindle ratational speed:
-
the highest 2800 rpm
-
Model:
-
3kinds of grinding heads,2kinds of shape
-
Abrasive belt speed:
-
0-35 m/s(infinitely variable speed is safer)
-
Motor:
-
Guarantee for 12 months
Quick Details
-
Wheel Size(mm):
-
150/200/250*50 mm
-
Year:
-
2020
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
ADV
-
Voltage:
-
220 V/380V
-
Dimension(L*W*H):
-
700*580*380 mm
-
Weight (KG):
-
80
-
Power (kW):
-
1.5/2.2 kw
-
Product name:
-
ADV-116-1 knife belt grinder
-
Application:
-
Metal hardware grinding
-
Abrasive belt dimensions:
-
(1600-2100)*50 mm
-
Abrasive belt motor power:
-
1.5/2.2 kw(variable frequency drive)
-
Rubber wheel diameter*wide(D*W):
-
280*50mm
-
Metal contact wheel diameter*wide:
-
60*60 mm
-
Spindle ratational speed:
-
the highest 2800 rpm
-
Model:
-
3kinds of grinding heads,2kinds of shape
-
Abrasive belt speed:
-
0-35 m/s(infinitely variable speed is safer)
-
Motor:
-
Guarantee for 12 months
We provide local services in below countries. And we are opening to have more agents.If you want to know whether your location has local service or not, please
click here.
Machine Description
Multifunction Vertical/horizontal belt grinder sander 2“*72”, 2"*82" 1.5 kw 3 mode for knife making
1.This brand high-precision belt grinder machine is an ideal machine for stock removal, profiling, handles and finish work, satin or mirror finish.
2.Machine frame is processed with No.45 steel, stable structure, slight noise, extreme slight vibration and long life using. It
represents the top level of ADV Grinding Tools company's production of belt grinder machines.
3.The ADV 116-1 belt grinder has multiple usages, highly creative. First choice for DIY changing.
4.Machine can change speed by tuning converter, more flexible and wide use
5.Machine with high stability. It has slight vibration even when putting a coin on the machine, rotation up to 2900rpm
2.Machine frame is processed with No.45 steel, stable structure, slight noise, extreme slight vibration and long life using. It
represents the top level of ADV Grinding Tools company's production of belt grinder machines.
3.The ADV 116-1 belt grinder has multiple usages, highly creative. First choice for DIY changing.
4.Machine can change speed by tuning converter, more flexible and wide use
5.Machine with high stability. It has slight vibration even when putting a coin on the machine, rotation up to 2900rpm
Machine Parameters
|
No
|
Item
|
Specification
|
|
1
|
Model
|
ADV 116-1
|
|
2
|
Abrasive belt dimensions
|
(1600-2100)*50 mm
|
|
3
|
Abrasive belt motor power
|
1.5/2.2 kw(variable frequency drive)
|
|
4
|
Three different grinding frame
|
Flat grinding frame, Arc grinding frame, Rubber wheel frame
|
|
5
|
Rubber wheel size
|
280*50mm(Diameter*Thickness)
|
|
6
|
Flat grinding frame aluminum wheel size
|
60*60mm(Diameter*Thickness)
|
|
7
|
Speed
|
0-35 m/s
|
|
8
|
Spindle rotational speed
|
The highest 2900 rpm
|
|
9
|
Packing size
|
640*640*450 mm
|
|
10
|
Packing weight
|
95KG
|
For more solutions,please
contact us.
Machine Parts

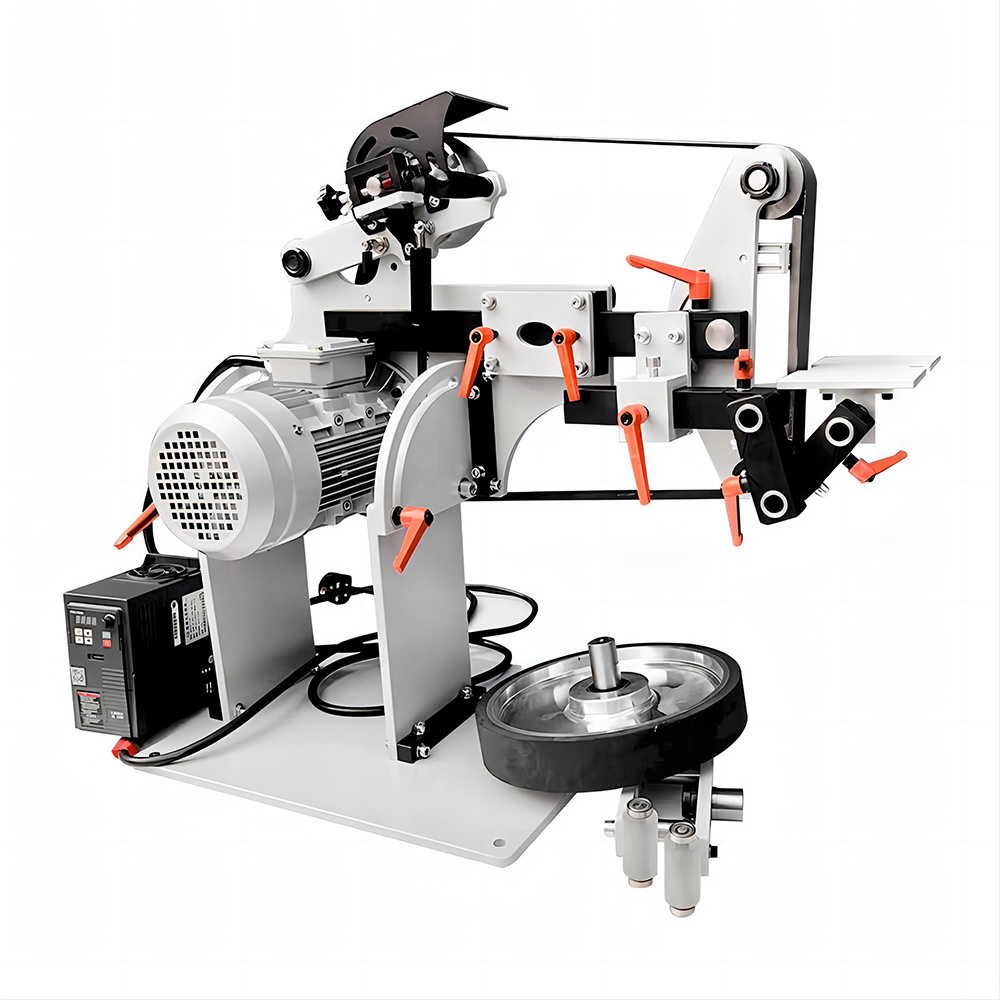

ADV 116-1 Vertical/horizontal multi-use sand belt machine.
Vertical and horizontal
Switch the convenient flipping mechanism, so that it can be used for both vertical and horizontal use
Available grinding wheel:
Rubber grinding wheel
Flat grinding wheel
Arc grinding wheel
Machine Application
Application materials:
ADV 116-1 belt sander is suitable for stainless steel, steel, aluminium, copper, wood, etc.
Application products:
Perfect for grinding different kinds of small items, such as knife, spoons, forks, mobile phone shell, watch, small
decoration,ect.
ADV 116-1 belt sander is suitable for stainless steel, steel, aluminium, copper, wood, etc.
Application products:
Perfect for grinding different kinds of small items, such as knife, spoons, forks, mobile phone shell, watch, small
decoration,ect.
Application scenarios:
We Support FREE Testing Samples for Customers
If you have any questions about the
ADV 116-1 belt grinder machine
or other related questions, please contact us without hesitation
