Quick Details
-
Model Number:
-
RL7311 (RA7311)
-
Protection Level:
-
IP64
-
Operating Temperature:
-
-20℃~+60℃ , 95% RH max.
-
Max. Current:
-
10A
-
Mechanical life:
-
10,000,000 cycles above
-
Eletrical life:
-
200,000 cycles above
-
Color:
-
gery
-
Protection degree:
-
IP64
-
Contact form:
-
SPDT
-
Certificates:
-
CE, CCC
-
Ratings:
-
10A, 250VAC
-
Certification:
-
CE CCC
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RENEW
-
Model Number:
-
RL7311 (RA7311)
-
Protection Level:
-
IP64
-
Operating Temperature:
-
-20℃~+60℃ , 95% RH max.
-
Max. Current:
-
10A
-
Mechanical life:
-
10,000,000 cycles above
-
Eletrical life:
-
200,000 cycles above
-
Color:
-
gery
-
Protection degree:
-
IP64
-
Contact form:
-
SPDT
-
Certificates:
-
CE, CCC
-
Ratings:
-
10A, 250VAC
-
Certification:
-
CE CCC

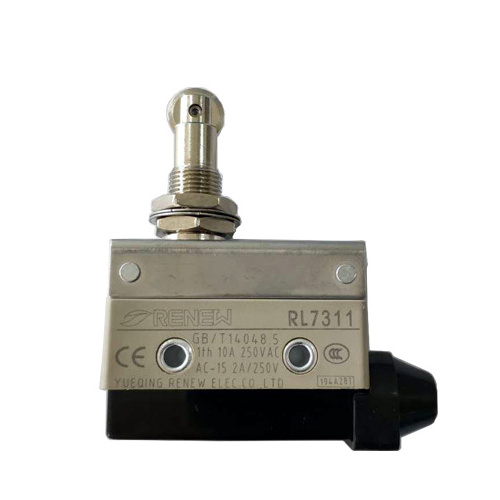

P/N: Panel mount roller plunger type limit switch 7311 roller shutter limit switch
Model No.: RL7311 (RA7311)
Rated value and characteristics
|
Rated working current |
10A 125V, 250VAC; 0.4A 115VDC(resistor load) |
||
|
Contact type |
Contact resistance (initial value ) |
Under 15 mΩ (not include copper resistance ) |
|
|
Contact material |
Sliver cadmium oxide contact(if no need cadmium,[according with ROSH certificate ] can customize |
||
|
Electrical |
Insulation resistance (initial value) |
100 mΩ min. (use the DC500V insulation resistance test) |
|
|
Dielectric strength |
Between Non-continuous terminals (initial value): 1500V 50/60HZ for 1 min Between dead metal parts and each terminal: 2000V 50/60HZ for 1min Between ground and each terminal: 2000V 50HZ for 1 min
|
||
|
Mechanical |
Shock resistance |
In the free position |
Less than 98m/s2(10G) |
|
In the full operating position |
Less than 294m./s2(30G) |
||
|
Vibration resistance |
1.5mm double amplitude 10-55HZ (contact gap is under 1 ms) |
||
|
Expected Life |
Mechanical |
10,000,000 operations min. (on/off frequency 50 operations/min) |
|
|
Electrical |
200,000 operations min.(on/off frequency is 20 operations/min) |
||
|
Using condition |
Ambient temperature /Ambient humidity |
-20~+60 (with no icing), 95%RH max. (at +5~20) |
|
|
The max on/off frequency |
120 operations/min |
||
Operating characteristics
|
Item |
Characteristics |
|
OF. max. |
5.88N {600gf} |
|
RF. min |
0.98N {100gf} |
|
PT. max |
2.0mm |
|
MD. max |
0.8mm |
|
OT. min |
6.0mm |
|
OP. |
33.3±1.2mm |
Purpose:
Food machine, automatic packaging machine, machine tool, conveyer, auto production line control, the machine of the light industry which need the strict protect and so on.
