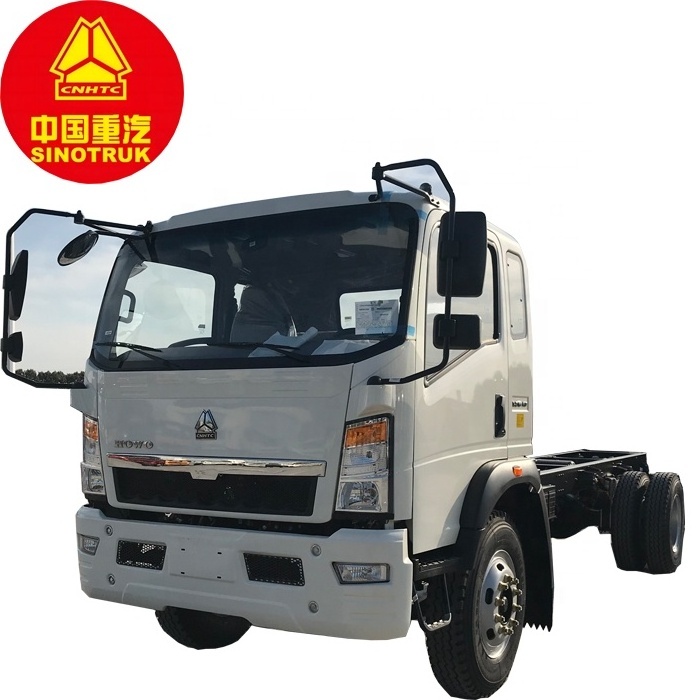

HOWO 4x4 4x2 Multifunction Light Truck Chassis

HOWO 4x4 4x2 Multifunction Light Truck Chassis

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10999

≥500 Pieces

US $9999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Horsepower:: 150 - 250hp

Cargo Tank Type:: Chassis

Gross Vehicle Weight:: 4984

Drive Wheel:: 4X2

After-sales Service Provided:: Video technical support, Online support

Brand Name:: SINOTRUK

Place of Origin:: Shandong, China

Size:: 8500*2500*2850

Cargo Tank Dimension:: 6200*2300*600

Drive type:: Left/Right Hand Driving

Chassis brand:: SIONTRUK HOWO

Engine:: YC4110

Wheelbase:: 4700/5200mm

Transmission:: Manual Transmission

Cabin:: 2080 Cabin, Single sleeper with AC

Displacement:: 4.275

Rear axle:: 10.5T

Front axle:: 3.6T 145 Front Axle X1

Quick Details

Condition:: New

Emission Standard:: Euro 3

Market Segement:: Logistics transportation

Horsepower:: 150 - 250hp

Cargo Tank Type:: Chassis

Gross Vehicle Weight:: 4984

Drive Wheel:: 4X2

After-sales Service Provided:: Video technical support, Online support

Brand Name:: SINOTRUK

Place of Origin:: Shandong, China

Size:: 8500*2500*2850

Cargo Tank Dimension:: 6200*2300*600

Drive type:: Left/Right Hand Driving

Chassis brand:: SIONTRUK HOWO

Engine:: YC4110

Wheelbase:: 4700/5200mm

Transmission:: Manual Transmission

Cabin:: 2080 Cabin, Single sleeper with AC

Displacement:: 4.275

Rear axle:: 10.5T

Front axle:: 3.6T 145 Front Axle X1

Product Description

10-12Ton Light Cargo Truck Chassis

Engine Horsepower: 140hp/160hp, EURO II, YC4110

Transmission: 6 F & 1 R

Tire: 9.00R20 steel wire tire, 6+1Spare

Cabin: 2080 Cabin, Single sleeper with air conditioner

Wheelbase: 4500mm/ 4700mm/5200

This Light Truck Chassis can be make for Water Tank Truck, Fuel Tank Truck, General Cargo Truck, Wing Truck, High Platform Truck, Tow Wrecker Truck, Suction Sewage Truck, Compressed Garbage Truck, Truck Mounted Crane etc.

Product Paramenters

Truck Brand						SINOTRUK—HOWO Light Truck
Driving wheel						4x2
Driving type						Right Hand Driving
Chassis Model						ZZ1127G4715D1R
Dimension(Lx W x H)（unloaded）（mm）						850025002850
Cargo Dimension(Inner)(mm)
Thickness(mm)
Cargo body shape
Approaching angle/Departure angle（°）						27/16
Overhang(front/rear) (mm)						1240/2505
Wheel base (mm)					4700
Leaf spring					Standard
Max speed（km/h）					90
Total weight					10-12ton
Engine	Model			YC4110 Engine, 4- stroke direct injection diesel engine, 4 cylinders in line with water cooling
		Fuel type			Diesel
		Horse Power			160hp
		Displacement(L)			4.257
		Emission			EURO II
Fuel tanker capacity (L)					Standard
Transmission			Model	DC6J65TC, 6 forwards and 1 reverse
Brake system			Service brake	Dual circuit compressed air brake
				Parking brake	spring energy, compressed air operating on rear wheels
Front axle			3.6T
Rear axle			10.5T
Color			Optional
Tyre			9.00R20 Steel , 6+1 Spare
Cab			2080 standard Cabin with Single sleeper, with air conditioner
