Quick Details
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
100 KG
-
Product Name:
-
beer brewing equipment for micro brewery
-
Standard:
-
CE UL TUV.
-
Material:
-
SUS 304, SUS 316
-
Polish:
-
0.6um
-
Thickness:
-
Inner:4.0mm, Jacket: 2.0mm
-
Pressure:
-
Test: 0.3Mpa
-
Capacity in liters:
-
200L,3000L, 5000L, 1000L, 2000L, 3000L, 4000L,5000L.
-
Capacity in BBL:
-
3BBL, 5BBL, 7BBL, 10BBL, 20BBL, 30BBL, 40BBL.
-
Insulation:
-
100mm Polyurethane
-
Valves:
-
carbonation stone, spray ball, sample, pressure, drain, release etc.
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Cassman
-
Voltage:
-
Adjustable
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
100 KG
-
Product Name:
-
beer brewing equipment for micro brewery
-
Standard:
-
CE UL TUV.
-
Material:
-
SUS 304, SUS 316
-
Polish:
-
0.6um
-
Thickness:
-
Inner:4.0mm, Jacket: 2.0mm
-
Pressure:
-
Test: 0.3Mpa
-
Capacity in liters:
-
200L,3000L, 5000L, 1000L, 2000L, 3000L, 4000L,5000L.
-
Capacity in BBL:
-
3BBL, 5BBL, 7BBL, 10BBL, 20BBL, 30BBL, 40BBL.
-
Insulation:
-
100mm Polyurethane
-
Valves:
-
carbonation stone, spray ball, sample, pressure, drain, release etc.
second hand beer brewery equipment to 400 l set for manufacturing plant
Turnkey Brewery Euipment
1----Mill System
Capacity: 100kg/h, 300kg/h, 500kg/h, 800kg/h, 1000kg/h.
Description: CE or UL listed Motor, Double roller, distance adjustable, stainelss steel 304 material.
Optional: Flexible Auger.

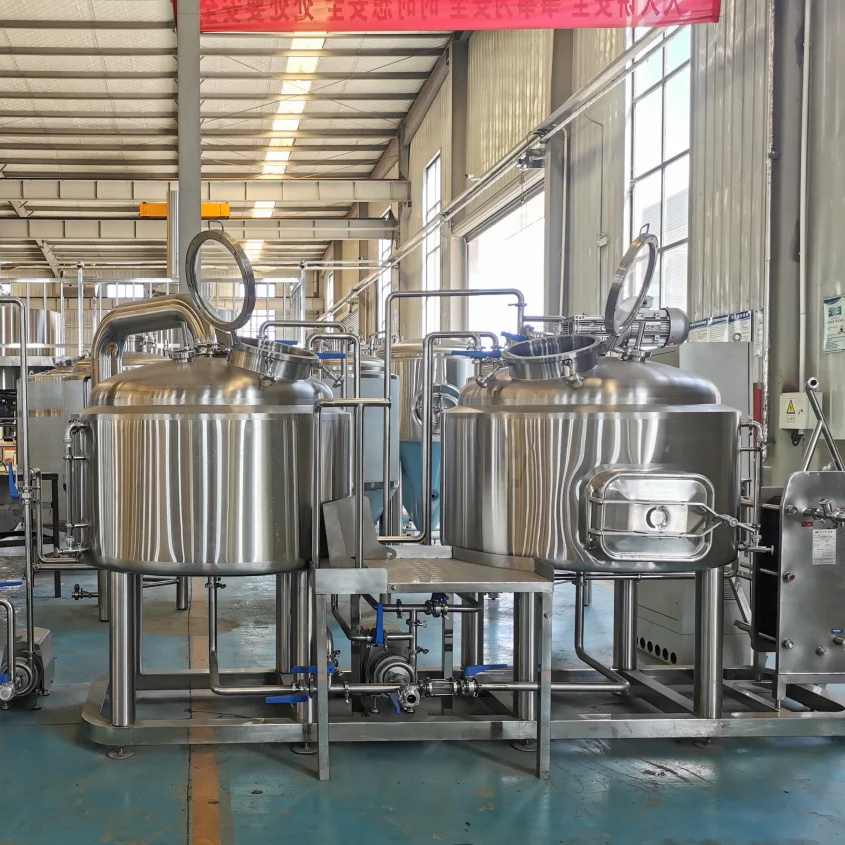

2----Brew House System
-Two-Four vessles or combined system.
-Capacity 100L-5000L, 1bbl-40bbl.
- Steam heated, electrical heated or natural gas
-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.
-Lauter tun with rake system, milled false bottom, sparging spray ring, VFD motor, insulated 80mm.
-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.
-Whirlpool with Tangential whirlpool inlet . insulated 80mm. Stainelsss steel 304.
-Insulated HLT and CLT with the pipelines and pumps
- External grant, hops back, heat exchanger. Wort oxygenation system, working platform.
-All the necessary pipelines and pumps.
| 50L | 100L | 200L | 300L | 400L | 500L | 1000L | 2000L | 3000L | 5000L |
| 60/72 | 60/72 | 60/72 | 60/72 | 60/72 | 60/72 | 60/72 | 60/72 | 60/72 | 60/72 |
3----Fermenter&BBT System
-Capacity: 100L-30000L, 1bbl-100bbl, + 25 % Head space
-Interior shell thickness 3-6 mm, Exterior shell=2mm
-100% TIG welding with pure argon gas shield
-Interior finish: pickled and passivated, external polished, 80mm insulated
- Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-60°conical bottom for Fermener, Shadow less side man way
-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-Mechanical relief valve 3 bar on CIP arm with pressure gauge
-Adjustable tank leveling pads
3----Cooling System
Description: Air type chiller + Ice water tank or Glycol tank
Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank
Brand: Copeland, SANYO.
4----Control System
-PID or PLC system
-SIEMENS program S7-200, Siemens touch screen.
-Penumatic valves for optional
5----Canning line, Kegging line
-Double station Kegging line.
-Small capacity Canning line.
