Product Description
Description

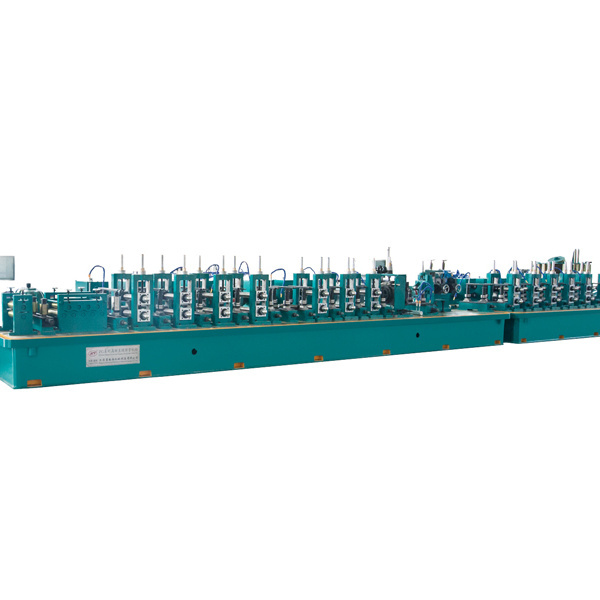

This equipment is specially used for
producing Φ15-Φ63.5mm
,
0.8-2.5mm
high-frequency straight seam welded tube and corresponding square tube and
special-shaped tube (δ≤2.0mm)
. The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of tube diameter and wall thickness.
Applicable material:
(1) Hot or cold-rolled steel strip (As per GB700-88)
(2) Material: Low-carbon steel, low alloy steel, galvanized steel strip
(3) The thickness of steel strip: 0.8-2.5mm (As per GB708-88)
(4) The width of steel strip: 50-200mm
(5) I.D. of steel coil: Φ450-Φ550mm
(6) O.D. of steel coil: Φ800-Φ1200mm
(7) Maximum weight coil: 2500kgs
(2) Material: Low-carbon steel, low alloy steel, galvanized steel strip
(3) The thickness of steel strip: 0.8-2.5mm (As per GB708-88)
(4) The width of steel strip: 50-200mm
(5) I.D. of steel coil: Φ450-Φ550mm
(6) O.D. of steel coil: Φ800-Φ1200mm
(7) Maximum weight coil: 2500kgs
Dimension range of processing steel tube:
(1) O.D.: Φ22-Φ76mm
(2) Square pipe size: 18x18~60x60mm
(3) rectangle pipe size:15x20~40x80mm
(4) Wall thickness: 1.0-3.0mm(square pipe and special-shaped pipeδ≤3.0mm)
(5) Length: 3.0-8m
Milling speed: 30-70M/min (choose different speed as per different pipe diameter and thickness)
Product (steel tube) process flow:
Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube
Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube
Technical appendixes
Structure type: Double-side 180ºrotary hydraulic expanding tight, which insure steel coil feeding alternatively and make steel strip going into accumulator freely.
Applicable range:
Steel strip width:50-200mm
Thickness: 0.8-2.5mm
Steel coil O.D.: Φ800-Φ1200mm
Steel coil I.D.: Φ450-Φ550mm
Steel coil weight: Max.2500kgs
Specifcation
|
Product&yield
|
Round Pipe
|
325mm-660mm Thickness: 6.0mm-20.0mm
|
|
|
|
Square & rectangle tube
|
250mm×250mm -500mm×500mm Thickness: 6.0mm-20.0mm
|
|
|
|
Length
|
6m-12m Length Tolerance: ±3mm
|
|
|
|
Production Speed
|
20 m/min
|
|
|
|
Production capacity
|
180,000ton/year
|
|
|
Consumption
|
Mill installed capacity
|
1200 kw
|
|
|
|
Line Area
|
350m(length) ×35m (width)
|
|
|
|
worker
|
6-8 workers
|
|
|
Raw Material
|
Carbon steel coil & steel plate Q235B(ASTM GR·D,σs 230) & High-strength steel
|
|
|
|
Model
|
12166
|
12167
|
12168
|
12169
|
12170
|
|
|
ZG76 (Unit)
|
ZG89 (Unit)
|
ZG115 (Unit)
|
ZG165 (Unit)
|
ZG219 (Unit)
|
|
Diameter of Welded Tubes
|
ø25-80mm
|
ø32-95mm
|
ø40-120mm
|
ø76-165mm
|
ø114-219mm
|
|
Wall Thickness of Welded Tube
|
1.5-4.0mm
|
1.5-4.5mm
|
2.0-5.0mm
|
2.0-6.0mm
|
3.0-8.0mm
|
|
Speed of Tube Welding
|
15-60M/min
|
15-50M/min
|
15-50M/min
|
15-50M/min
|
15-40M/min
|
|
Power of Major motor
|
160KW
|
110KWx 2
|
132KW x 2
|
160KW x 2
|
200KW x 3
|
|
High Frequency Power
|
300KW
|
300KW
|
400KW
|
600KW
|
800KW
|
