Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Traditional
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TYT
-
Model Number:
-
expandable metal shoring
-
Product name:
-
formwork support jack
-
Surface treatment:
-
Pre-galvanized/ painted/powder coated/HDG
-
Material:
-
Q195/Q235
-
Size:
-
40/48, 48/56, 48/60
-
Thickness:
-
1.6-4.0MM
-
Weight:
-
10-18KG
-
MOQ:
-
1000PCS
-
Packing:
-
in bundle
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Apartment
-
Design Style:
-
Traditional
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TYT
-
Model Number:
-
expandable metal shoring
-
Product name:
-
formwork support jack
-
Surface treatment:
-
Pre-galvanized/ painted/powder coated/HDG
-
Material:
-
Q195/Q235
-
Size:
-
40/48, 48/56, 48/60
-
Thickness:
-
1.6-4.0MM
-
Weight:
-
10-18KG
-
MOQ:
-
1000PCS
-
Packing:
-
in bundle
Light Weight Building Acrow Prop Galvanized Steel Adjustable Scaffolding Prop Sleeve Metal Shoring Steel Prop For Construction
Products Description
|
Item
|
Adjustable steel prop
|
|
Type
|
Heavy duty / Light duty
|
|
Inner pipe/ Outer pipe
|
48/60mm, 40/48mm, 48/56mm
|
|
Pipe thickness
|
1.6-4.0mm
|
|
Normal length
|
1.7-3m / 2.1-3.8m / 2.2-4m / 2.7-5m
|
|
Surface treatment
|
Pre-galvanized/ painted/powder coated/hot dip galvanized
|
|
Manufacturer
|
TYT, Tianjin
|
|
Material
|
Q235
|
|
Application
|
Construction
|
|
Packing
|
Bundle
|
|
Certificate
|
SGS
|
|
Payment terms
|
TT/LC
|
|
MOQ
|
1000pcs
|
|
Light duty prop - Spanish prop
|
|
|
|
|
||||
|
Min Height
|
Max Height
|
Inner Tube
|
Outer Tube
|
Tube Thk
|
||||
|
0.6m
|
1.1m
|
40mm
|
48mm
|
1.6-2.5mm
|
||||
|
0.8m
|
1.4m
|
40mm
|
48mm
|
1.6-2.5mm
|
||||
|
1.6m
|
2.9m
|
40mm
|
48mm
|
1.6-2.5mm
|
||||
|
1.8m
|
3.2m
|
40mm
|
48mm
|
1.6-2.5mm
|
||||
|
2.0m
|
3.6m
|
40mm
|
48mm
|
1.6-2.5mm
|
||||
|
2.2m
|
4.0m
|
40mm
|
48mm
|
1.6-2.5mm
|
||||
|
Light duty prop - Italian prop
|
|
|
|
|
||||
|
Min Height
|
Max Height
|
Inner Tube
|
Outer Tube
|
Tube Thk
|
||||
|
1.6m
|
2.9m
|
48mm
|
56mm
|
1.6-2.5mm
|
||||
|
1.8m
|
3.2m
|
48mm
|
56mm
|
1.6-2.5mm
|
||||
|
2.0m
|
3.5m
|
48mm
|
56mm
|
1.6-2.5mm
|
||||
|
2.0m
|
3.6m
|
48mm
|
56mm
|
1.6-2.5mm
|
||||
|
2.2m
|
4.0m
|
48mm
|
56mm
|
1.6-2.5mm
|
||||
|
Heavy duty prop - Middle east prop
|
|
|
|
|
||||
|
Min Height
|
Max Height
|
Inner Tube
|
Outer Tube
|
Tube Thk
|
||||
|
1.6m
|
2.9m
|
48mm
|
60mm
|
1.6-4.0mm
|
||||
|
1.8m
|
3.2m
|
48mm
|
60mm
|
1.6-4.0mm
|
||||
|
2.0m
|
3.5m
|
48mm
|
60mm
|
1.6-4.0mm
|
||||
|
2.0m
|
3.6m
|
48mm
|
60mm
|
1.6-4.0mm
|
||||
|
2.2m
|
4.0m
|
48mm
|
60mm
|
1.6-4.0mm
|
||||
|
3.0m
|
5.0m
|
48mm
|
60mm
|
1.6-4.0mm
|
||||
|
3.5m
|
6.0m
|
48mm
|
60mm
|
1.6-4.0mm
|
||||

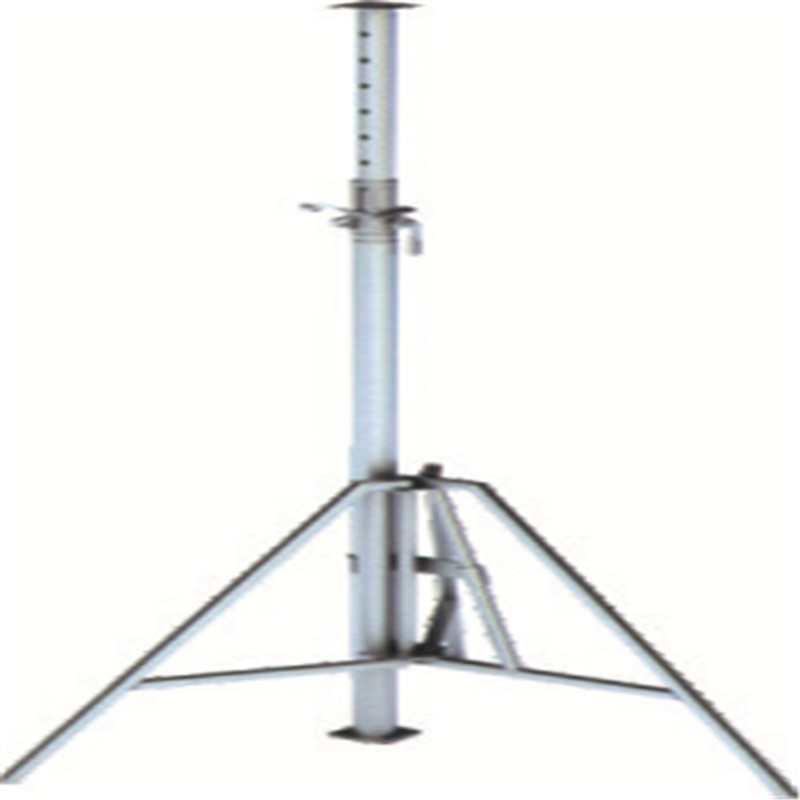

Steel Shoring Prop /Scaffolding Telescopic Prop
1. Simple steel tube construction formwork support, material saving.
2. No ledger required, fast to erect, time saving.
3. Most common adjustable height 2.0 to 3.5 meter for 3 meter high floor, other heights also available.
4. Rotating the collar nut with handle can clean the concrete on steel prop adjustable by itself.
5. Adjustable Prop sleeve thread rolling by lathe, smooth rotation of nut handle.
6. Base plates with punched holes can fit the prop on the sole plate or timber beam.
7. Adjustable scaffolding prop can serve different load capacity by using different dimensions of steel tubes
Product Features
Application Scenarios
Optional accessories
Related Products
About Us
Packaging & Transportation
FAQ
Q: How about the quality of products in your company?
A: We have high and best quality products and our products get some good feedbacks from clients all over the world.
Once you got our products with some questions under guarantee, we will provide helps at first place. At the usual time, we keep our records about products complaints as low as 1% .
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, not agent. We have own factory, which is located in TIANJIN,CHINA. We have a leading power in producing and exporting galvanized steel pipe etc. We promise that we are what you are looking for. Welcome to contact us.
Q: What is your MOQ?
A: Any quantity is acceptable, and when the quantity is less than 5 tons per size, we'll supply from our stock.
Q: Is 3rd inspection on welded steel pipe acceptable?
A: Yes. are all acceptable.
Q: Do you attend any exhibition?
A: Yes. We attend exhibition in the South America, Africa, and Southeast Asia every year.
Q: Do u have other relative production?
A: We have steel props / ringlock / jack base / frame system/galvanized steel pipe.
