Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Topten
-
Model Number:
-
TK428
-
Size:
-
5.4*5.1*2.8cm
-
Voltage:
-
10-90VDC
-
Backup battery:
-
rechargeable 3.7V 350mAh Li-ion battery
-
Network:
-
4G: LTE-FDD: B1,B2,B3,B4,B5, B7,B8,B28,B66
-
GPS Sensitivity:
-
162dBm
-
Tracking platform:
-
http://www.51track.com
-
Suitable for:
-
car and trucks
-
Working temperature::
-
-20 ~ 85℃
-
Application:
-
Web Platform Android APP IOS
-
Usage:
-
Car Tracking Locator
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, AGPS, Beidou, GLONASS, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
Over-Speed Warning, Wheel Path Playback, Geofence
-
Data Storage:
-
8MB
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Topten
-
Model Number:
-
TK428
-
Size:
-
5.4*5.1*2.8cm
-
Voltage:
-
10-90VDC
-
Backup battery:
-
rechargeable 3.7V 350mAh Li-ion battery
-
Network:
-
4G: LTE-FDD: B1,B2,B3,B4,B5, B7,B8,B28,B66
-
GPS Sensitivity:
-
162dBm
-
Tracking platform:
-
http://www.51track.com
-
Suitable for:
-
car and trucks
-
Working temperature::
-
-20 ~ 85℃
-
Application:
-
Web Platform Android APP IOS
-
Usage:
-
Car Tracking Locator

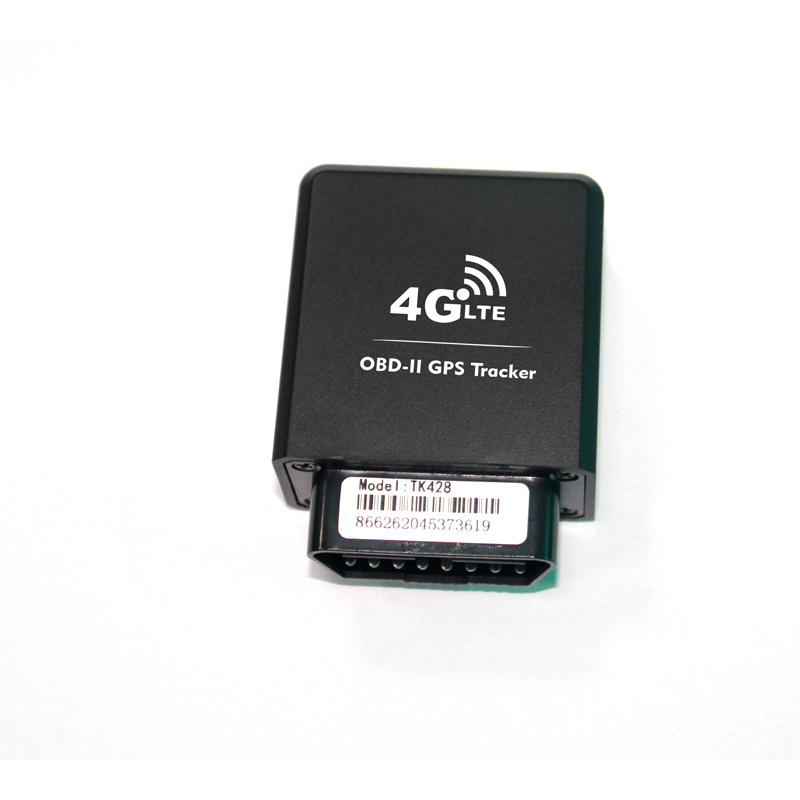

Topten TK428 4G Gps Device Obdii Obd2 Mileage Vehicle Tracker Engine Lock For Car Obd Port
4G OBDII GPS TK428 functions and features:
1. Plug & play design with OBD-II connector, compatible with all the vehicles with OBD-II connector, supports most of vehicles with the CAN-BUS;
2. Track on command or by time interval via SMS/GPRS;
3. Arm/disarm by SMS or phone call.
4. Check the car’s real physical address (such as city name, street name.);
5. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
6. Check the location directly by the Google map’s URL;
7. Data logger to store 5520 waypoints.
8. Smart engine ON/OFF detection;
9. OTA function, upgrade firmware on air;
10. Over-speed alarm;
11. Movement alarm which can be used as an alarm;
12. Engine on alarm;
13. Vibration alarm;
14. Power failure alarm, with internal rechargeable backup battery;
15. Turnover alarm when the vehicle falls down accidentally;
16. Acceleration and crash alarm(deceleration) ;
17.Trailer alarm .
18. Routine optimization when vehicle turns a corner.
19. Read remaining fuel level (only for some cars).
20. Voltage range:
10V-60VDC,
suitable for car or big truck.
21. Remote diagnostics function. Readings (1) Vehicle's real-time data:
battery's voltage, RPM, speed, TAP throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times; (2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times. (3) read VIN & DTC, clear DTC.
| Product name | 4G K428 OBDii OBD2 GPS Tracker Can Retrieve Car Telematic Reading Such As Fuel And Odometer, Ignition State |
| Model No. | TK428 |
| Keyword | OBDII Tracker |
| Working voltage | +9.0~+60VDC |
| Power Consumption |
Standby current:8mA Working current:20mA Deep sleep model current:<4mA |
| Inside backup battery | Rechargeable 3.7V 350mAh Li-ion battery |
| Tracker size | 54.0*51.5*28.5mm |
| Tracker weight | 73g |
| Working temperature | -20~85Celsius |
| Humidity | 0-95% |
| GSM frequencies |
GSM: 900MHz/1800MHz
WCDMA:B1/B8, TD-SCDMA: B34/B39 LTE-FDD:B1/B3/B5/B8 (optional B7/B20) LTE-TDD:B34/B38/B39/B40/41 |
| Receiving ways | 56 channels |
| Working frequencies | 1575.42Mhz C/A (GPS) |
| Receiving sensibility | -162dBm |
| Positioning accuracy | <=10m (wide-open area) |
| Speed accuracy | <=0.2M/S (wide-open area) |
| Positioning mode | Auto 2D/3D |
| Hot start | 1 sec.,average |
| Warm start | 2 sec., average |
| Cold start |
40 sec.,average |
Support CAN-BUS protocols as follow:
In arming status, if the vehicle is vibrated, it will send out the alarm.
Power Failure Alarm
At any time, ff the car battery is cut off, it will send out the alarm.
Engine ON Alarm
In arming status, if the vehicle engine is ON, it will send out alarm SMS and call the preset phone.
Movement Alarm
In arming status, the movement alert is enabled automatically. Once the car moves away from the parking point for the preset distance, it will send out the alarm.
Over-speed Alarm
At any time, if the vehicle runs over the speed limitation, it will send out the alarm.
Acceleration & Deceleration Alarm
At any time, if the vehicle speeds up suddently or harsh brake, it will trigger the event alarm.
Turn-over Alarm
At any time, if the vehicle turns over, it will trigger the event alarm.
Trailer Alarm
At any time, if the vehicle is dragged away when parking, it will trigger the event alarm.
SOS Alarm (optional)
At any time, if the SOS button is pressed, it will trigger the SOS alarm.
