Quick Details
-
Dimension(L*W*H):
-
1400*1100*1540mm
-
Weight:
-
400 KG
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
Yes
-
Product name:
-
Mini Diesel Engine Hydraulic Water Well Drilling Machine
-
Max Drilling Depth:
-
0-150m
-
Engine:
-
Diesel
-
Drill rod length:
-
1.5m
-
Drill rod diameter:
-
42/50mm
-
Drilling bit:
-
Alloy/PDC Diamond Bit
-
Color:
-
Customer Required
-
Key words:
-
Core Drilling Machines Equipment
-
MOQ:
-
1 Set
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIEZHUO
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1400*1100*1540mm
-
Weight:
-
400 KG
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
Yes
-
Product name:
-
Mini Diesel Engine Hydraulic Water Well Drilling Machine
-
Max Drilling Depth:
-
0-150m
-
Engine:
-
Diesel
-
Drill rod length:
-
1.5m
-
Drill rod diameter:
-
42/50mm
-
Drilling bit:
-
Alloy/PDC Diamond Bit
-
Color:
-
Customer Required
-
Key words:
-
Core Drilling Machines Equipment
-
MOQ:
-
1 Set
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
Product Overview

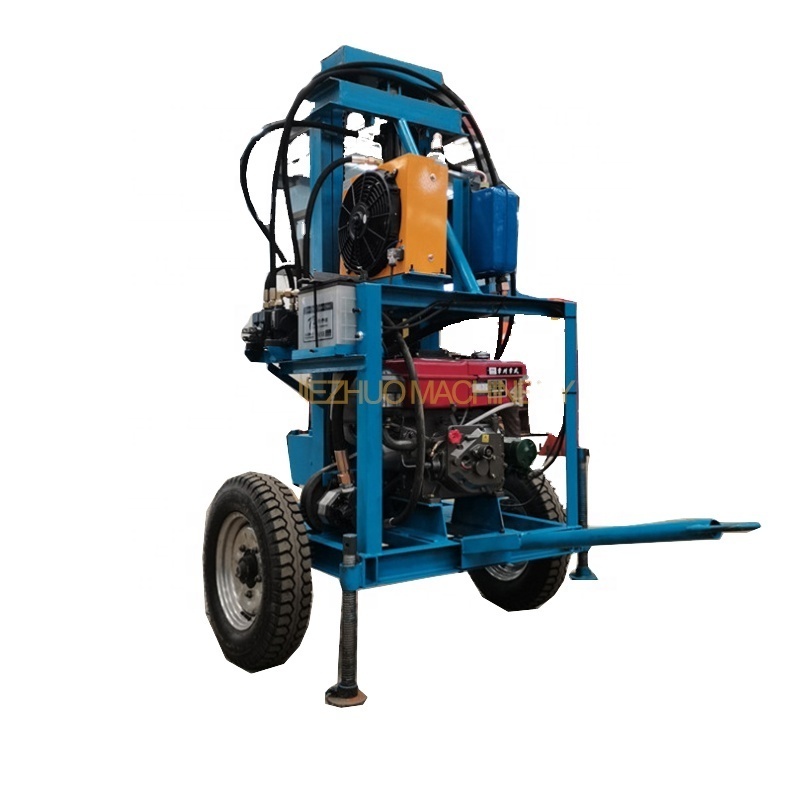

12/15hp Diesel Engine 100m Wheel Drilling Rig Mine Drilling Rig Water Drilling Rig For Well
Hydraulic lift electric drilling rig is a new mechanized drilling rig with high efficiency, light weight, economy and
practicability produced by our factory. Its advantages are: large torque, small volume, portable, high efficiency, easy operation,low noise and adaptability to various environmental topography. The machine is easy to use, simple to operate, fast to form holes.It can be operated by a single person at about 10 meters per hour. It can dump the drill pipe mechanically. Taking a well drilled at 100 meters as an example, the average time of drill pipe disassembly takes about 10 minutes. After completion of drilling operation, the machine can be moved by a single person.
Features:
1.Light weight, energy saving
2.Unique design and simple drilling structure
3.Easy to transport and can learn how to operate the machine in short time
4.Can drill through hard stratum, unless thick rock layer
5.Assure easily operation and long time service life
6.One person can operate, reduce the labor intensity
7.High efficiency and can work fast
1.Light weight, energy saving
2.Unique design and simple drilling structure
3.Easy to transport and can learn how to operate the machine in short time
4.Can drill through hard stratum, unless thick rock layer
5.Assure easily operation and long time service life
6.One person can operate, reduce the labor intensity
7.High efficiency and can work fast
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Model
|
JZ-T120
|
|
2
|
Engine
|
Diesel 8/12/18HP
|
|
3
|
Drilling diameter
|
75-220mm
|
|
4
|
Drill pipe diameter
|
42/50mm
|
|
5
|
Drill pipe length
|
1.5m/pcs
|
|
6
|
Bit specification
|
More caliber alloy and diamond bit are optional
|
|
7
|
Max Drilling depth
|
120 meters
|
|
8
|
Weight
|
400KGS
|
|
9
|
Suitable for the soil
|
Soil layer, quicksand layer, a small amount of rock layer, pebble, etc
|
|
10
|
Dimension
|
780*1000*1400mm
|
