Quick Details
-
Voltage:
-
220/380
-
Dimension(L*W*H):
-
Different Model
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

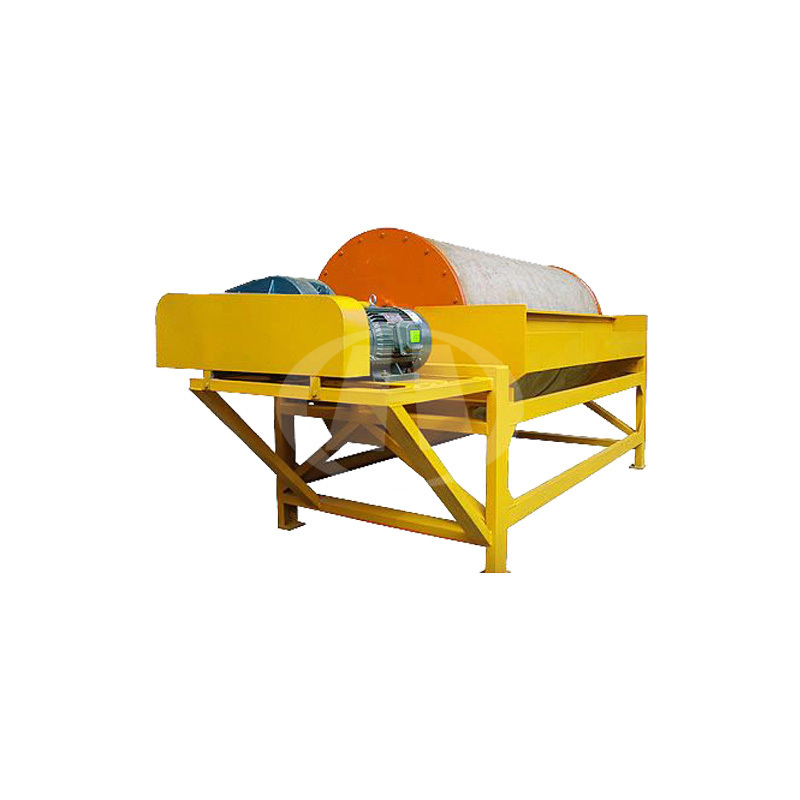

Dry Type Magnetic Roll Separator
-
Process style:
-
Casting
-
test:
-
supply
-
HS Code:
-
8474100000
-
Magnetic intensity:
-
1000GS-15000gauss
-
Installation:
-
under the guide of our engineer
-
Feeding size(mm):
-
3-0
Quick Details
-
Production Capacity:
-
customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongji
-
Voltage:
-
220/380
-
Dimension(L*W*H):
-
Different Model
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Dry Type Magnetic Roll Separator
-
Process style:
-
Casting
-
test:
-
supply
-
HS Code:
-
8474100000
-
Magnetic intensity:
-
1000GS-15000gauss
-
Installation:
-
under the guide of our engineer
-
Feeding size(mm):
-
3-0
Product Description
Product Description
Wet magnetic separator for separating strong magnetic minerals，which can be used for recovery of fine and strong magnetic minerals or removal of small amounts of ferromagnetic materials from non-magnetic minerals. And hongji magnetic separator is suitable for beneficiation of magnetite, pyrrhotite, hematite, limonite, siderite, etc.
Features
1, With permanent magnets, continuous feeding and discharging and short downtime.
2, The high-strength and high-reliability mechanical structure ensures the normal operation of the equipment in various harshenvironments.
3, According to users’ needs, various types of magnetic separation equipment with different surface strengths such as downstream, semi-countercurrent, and countercurrent types can be provided.
Working Principle
Working Principle of magnetic separator for manganese ore
The pulp flows into cell body from the pulp box, and under the water flow of the feeding spray pipe, the mineral grain will go into the feeding area of the cell body in the loose condition. In the magnetic field, the magnetic ore particles will have magnetic gathering and form magnet group or magnet chain which is influenced by the magnetic force inside the pulp and moves to the magnetic pole and finally is absorbed onto the cylinder. magnetic separator for manganese ore is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal, non-metal ore and building material.
Specification
|
Model
|
Cylinder Size
|
Capacity
|
|
Motor Power
|
Drum Speed
|
Weight
|
|
|
|
(mm)
|
(m³/h)
|
|
(kw)
|
(r/min)
|
(kg)
|
|
|
|
|
(t· h)
|
(m³·h)
|
|
|
|
|
|
CTS/CTN/CTB-69
|
600×900
|
8-15
|
24
|
1.1
|
40
|
780
|
|
|
CTS/CTN/CTB-612
|
600×1200
|
10-20
|
32
|
2.2
|
40
|
990
|
|
|
CTS/CTN/CTB-618
|
600×1800
|
15-30
|
48
|
2.2
|
40
|
1330
|
|
|
CTS/CTN/CTB-712
|
750×1200
|
15-30
|
48
|
3
|
35
|
1500
|
|
|
CTS/CTN/CTB-718
|
750×1800
|
20-45
|
72
|
3
|
35
|
2100
|
|
|
CTS/CTN/CTB-918
|
900×1800
|
25-55
|
90
|
4
|
28
|
2500
|
|
|
CTS/CTN/CTB-924
|
900×2400
|
35-70
|
110
|
4
|
28
|
2500
|
|
|
CTS/CTN/CTB-1024
|
1050×2400
|
52-100
|
160
|
5.5
|
22
|
5000
|
|
|
CTS/CTN/CTB-1030
|
1050×3000
|
65-125
|
200
|
7.5
|
19
|
5800
|
|
|
CTS/CTN/CTB-1224
|
1200×2400
|
52-100
|
160
|
5.5
|
19
|
6200
|
|
|
CTS/CTN/CTB-1230
|
1200×3000
|
82-120
|
192
|
7.5
|
19
|
7200
|
|
|
CTS/CTN/CTB-1530
|
1500×3000
|
90-170
|
270
|
11
|
14
|
9700
|
|
|
CTS/CTN/CTB-1540
|
1500×4000
|
115-220
|
350
|
11
|
14
|
11800
|
|
Packing & Delivery
Packaging Details
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the Pe film according to the customer's special requirements.
Deliveray Time
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
