ASI&IP Input satellite uplink dvb-s2 modulator

FOB Reference Price: Get Latest Price

≥1 Sets

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: ASI&IP Input satellite uplink dvb-s2 modulator

Standard:: Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard

Input interface:: ASI and IP input

Constellations:: QPSK, 8PSK, 16APSK, 32APSK

Encryption:: Support BISS

Network:: SFN TS Transmission

Output Frequency:: 950~2150MHz, 10KHz stepping

Management Control:: Web-Server NMS

Application:: Satellite KU Transmission

Quick Details

Place of Origin:: Sichuan, China

Brand Name:: Ustarlink, Ustarlink

Model Number:: WS-M5402

Product name:: ASI&IP Input satellite uplink dvb-s2 modulator

Standard:: Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard

Input interface:: ASI and IP input

Constellations:: QPSK, 8PSK, 16APSK, 32APSK

Encryption:: Support BISS

Network:: SFN TS Transmission

Output Frequency:: 950~2150MHz, 10KHz stepping

Management Control:: Web-Server NMS

Application:: Satellite KU Transmission

Product

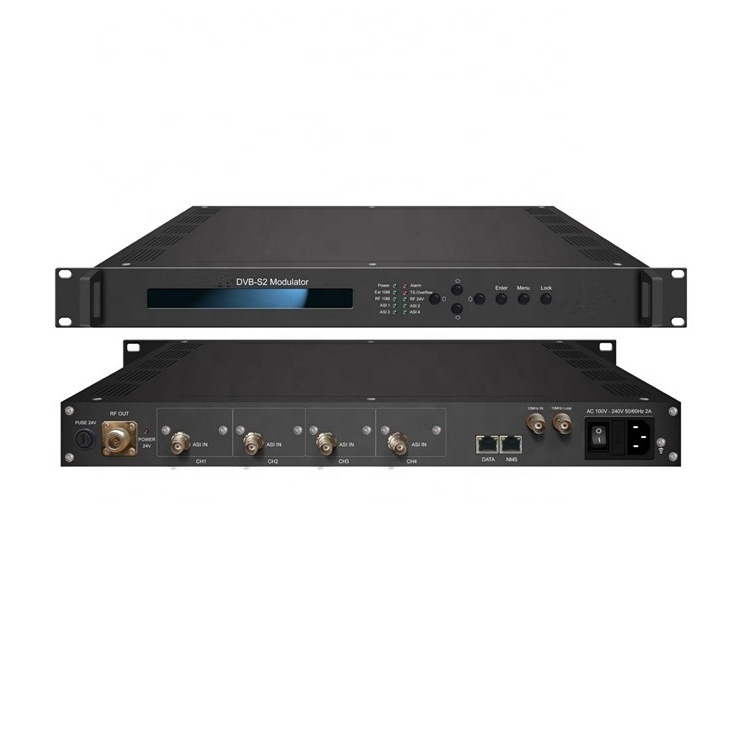

ASI&IP Input satellite uplink dvb-s2 modulator

Outline

WS-M5402 is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2 RF output.

BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with Web-server NMS software and LCD in the front panel.

With its high cost-effective design, WS-M5402 DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.

Features

* Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard

* 4 ASI inputs (3 for backup)

* Support IP (100M) signal input

* QPSK, 8PSK, 16APSK, 32APSK Constellations

* Support RF CID setting (Optional as per order)

* Constant temperature crystal oscillator, as high as 0.1ppm stability

* Support 24V power output through RF output port

* Support BISS scrambling

* Support SFN TS transmission

* Output frequency range: 950~2150MHz, 10KHz stepping

* Support local and remote control with Web-server NMS

Principle Chart

Specifications

ASI Input	Supporting both188/204 Byte Packet TS Input
	4 ASI Inputs, Supporting Backup
	Connector: BNC, Impedance 75Ω
IP Input	1*IP Input (RJ45, 100M TS Over UDP)
10MHz Reference Clock	1External 10MHz Input (BNC Interface); 1Inner 10MHz Reference clock
RF Output	RF Range: 950 ~ 2150 MHz, 10KHz stepping
	Output Level Attenuation:-26 dBm ~ 0 dBm,0.5dBm Stepping
	MER≥40dB
	Connector: N type, Impedance 50Ω
Channel Coding and Modulation	Standard	DVB-S	DVB-S2
	Outer coding	RS Coding	BCH Coding
	Inner coding	Convolution	LDPC Coding
	Constellation	QPSK	QPSK,8PSK, 16APSK,32APSK
	FEC/ Convolution Rate	1/2, 2/3, 3/4, 5/6, 7/8	QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
	Roll-off Factor	0.2, 0.25, 0.35	0.2, 0.25, 0.35
	Symbol Rate	0.05~45Msps	0.05~40Msps (32APSK); 0.05~45 Msps (16APSK/8PSK/QPSK)
	BISS Scramble	Mode 0, mode 1, mode E
System	Web-server NMS
	Language: English
	Ethernet software upgrade
	24V power output through RF output port
Miscellaneous	Dimension	482mm×410mm×44mm
	Temperature	0~45℃(operation), -20~80℃ (storage)
	Power	100-240VAC±10%,50Hz-60Hz
