Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
Green Red
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
6A
-
Max. Voltage:
-
660V
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
Green Red

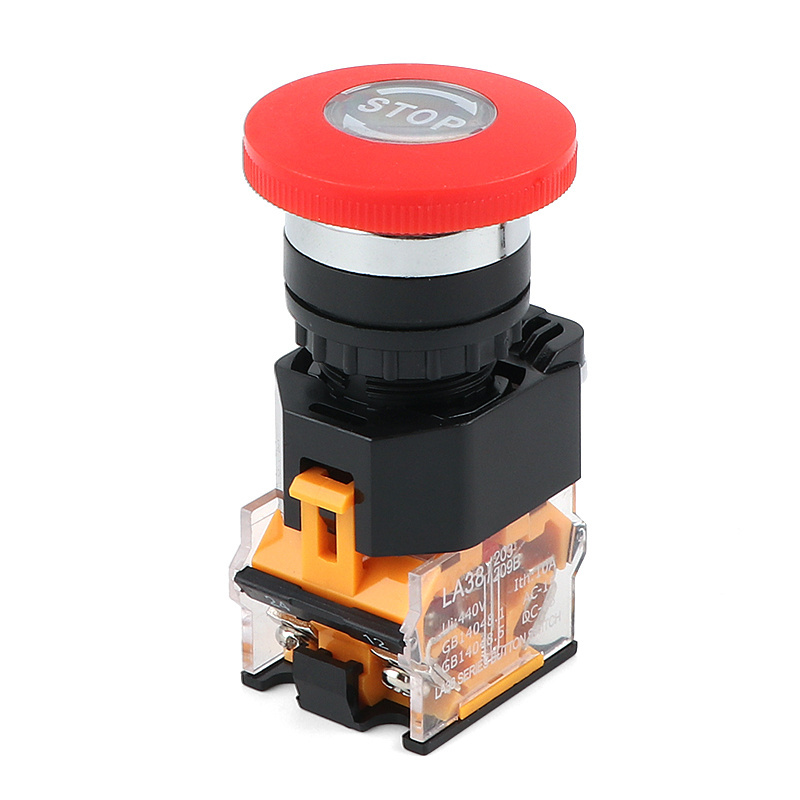

LA38-11ZS Stop Sign emergency stop switch
Should button structure design match nation and Europe total body CE safety attestation request, according to nations IEC947 and En6-0947 and CCC nation the GB14048.5-2001 produce examination.
Touch some switch has to surround to close type structure,usage safety credibility.Connect line convenience,The structure's design is skillful reasonable,Connect linescrew not loose move to shed off to take to have from rise function a square I am then fast to install.
1.Rated insulation voltage: AC660V(50/60Hz)
2. Rated thermal current: Ith:10A
3. Contact resistance:Hard sliver contact ≤50mΩ
4. Rated insulation voltage:-25℃~+55℃
5. Mechanical durability:
Normal push buttons , Mushroom head pushbuttons:3 million operating cycles
Illuminated pushbuttons: 300,000 operating cycles
Selector switches, Key switches, " push-push to release" pushbuttons: 50,000 operating cycles
| Description | Color |
Type of Contact
|
Reference |
Weight |
| NO NC | ||||
|
Emergency stop
pushbuttons
Emergency stop mushroom head pushbuttons, Push-Push to release
|
|
1 1 |
LA38-11S/R |
0.07KG |
| Green | 1 1 | LA38-11S/G | 0.0 7 KG | |
| Red | 1 1 | LA38-11ZS/R | 0.0 7 KG | |
|
Green |
1 1 | LA38-11ZS/G | 0.0 7 KG |
