QD 250/50t Overhead Travelling Crane for sale

Product Application

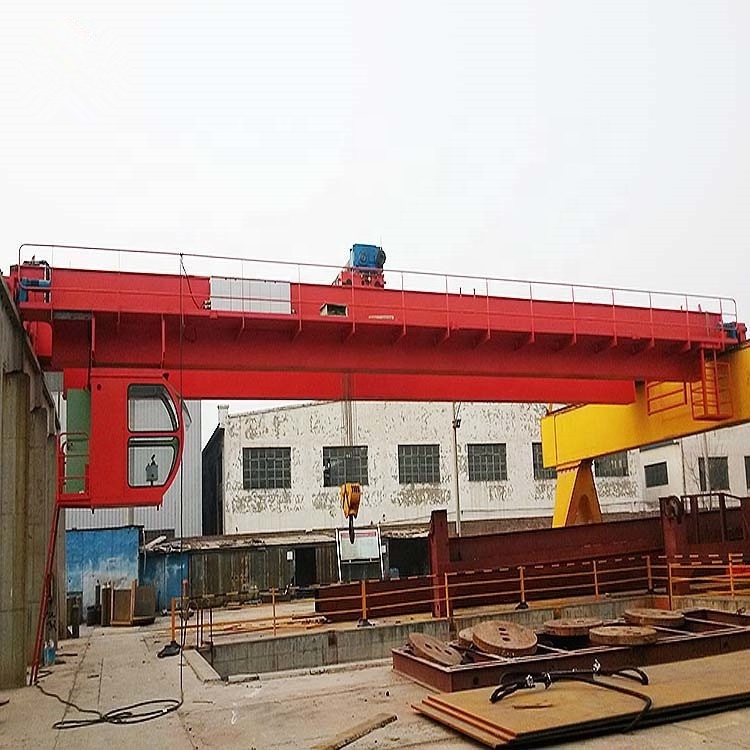

A6 Working Grade Cabin Control 125/32t Double Beam Overhead CraneQD 250/50t Overhead Travelling Crane consists of two main girders, end carriages, trolley type winch with two hooks, rail on two main girders for trolley to travel, operating cabin, electric control box and C rail to hang cable for power supply.

Crane travelling motor and trolley winch motor adopts China famous brand motor, service life is longer, but if you prefer ABM motor, SEW reduction gear box, it is okay, we can equip for you.

Speed of QD 250/50t Overhead Travelling Crane

Lifting speed of main hook 250t of Double Beam Overhead Crane is 3.5m/min, while auxiliary hook 7.5m/min. Trolley travelling speed can reach 40m/min, crane travelling speed can reach 68m/min.

Max lifting height of main hook 250t can reach 22m, while auxiliary hook can reach 24m.

If you don't need auxiliary hook, we can just equip 250t hook for you, or if auxiliary hook capacity doesn't need to be 50t, we can equip 32t, 20t, 16t, 10t hook for you.

Product Type: QD

Lifting Capacity: 250/50t

Span Length: 12-32M

Operation method: room control.

Our factory has been engaged in crane area for over 20 years, crane exports to more than 30 years, and enjoy great reputation in clients.

QD Type A6 Working Grade Cabin Control 125/32t Double Beam Overhead Crane is applied for various workshops indoors. It is divided into two working classes: A5 and A6 according to the usage grade and load-up condition. Reliable performance, long and durable lift, reduces the additional fee during the operation. With high quality, high performance components, reduces the maintainers and repair works.


If you choose operating cabin as control method, there are three kinds of method for entering operating cabin, which are side entering, top entering, and end entering. The operating cabin can be either fixed at the left or at the right end.

Electric conduction of QD 250/50t Overhead Travelling Crane

Electric conduction of crane can adopts both safe slide wire or angle iron, they can be installed at either the opposite side of the operating cabin or at the same side of the cabin. All operations can be fulfilled in the cabin.

Features of QD 250/50t Overhead Travelling Crane

1. Strong beams. The crane beams are of welded construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads.

2. End carriage:  Crane travelling system, Motor-Reducer-Wheel driven system! motor used soft start motor which result in very stable starting!

3. Durable performance and High efficiency!

4. Modern cabin control with Air conditioner to separate operators from harsh environment

5.Electrical equipment: Electric systems are Siemens brand or Schneider brand!

6. Long service life with a low-maintenance.

Machine Parts

Name: upper beam

Brand: MHICRANE

Original: China

Upper beam, high strength

Main Parts

Name: Single bus bar
Brand: MHICRANE
Original: China
Long service life

Machine Parts

Name: Trolley type winch
Brand: MHICRANE
Original: China
Good quality, long sevice life.

Main Parts

Name: End carriage
Brand: MHICRANE
Original: China
High strength steel made, famous brand motor. Travel smoothly. Long service life

Machine Parts

Name: operating cabin

Brand: MHICRANE

Original: China
