Quick Details
-
Model Number:
-
IS-5518
-
Weight:
-
58KG
-
Packing Dimension:
-
1860x220x1160mm
-
Product Dimension:
-
55 inch
-
Warranty:
-
2 years
-
Certificates:
-
BIS,CE,CB,FCC,ROHS
-
Operating system:
-
Android/Win
-
Touch points:
-
20 points touching
-
Brightness:
-
350cd/m2
-
Touch Type:
-
Aluminum Alloy Frame
-
Installation Way:
-
Bracket
-
Contrast Ratio:
-
4000:1
-
RAM:
-
4GB
-
ROM:
-
32GB
Quick Details
-
Panel Size:
-
55inches
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INGSCREEN
-
Model Number:
-
IS-5518
-
Weight:
-
58KG
-
Packing Dimension:
-
1860x220x1160mm
-
Product Dimension:
-
55 inch
-
Warranty:
-
2 years
-
Certificates:
-
BIS,CE,CB,FCC,ROHS
-
Operating system:
-
Android/Win
-
Touch points:
-
20 points touching
-
Brightness:
-
350cd/m2
-
Touch Type:
-
Aluminum Alloy Frame
-
Installation Way:
-
Bracket
-
Contrast Ratio:
-
4000:1
-
RAM:
-
4GB
-
ROM:
-
32GB
Products Description
|

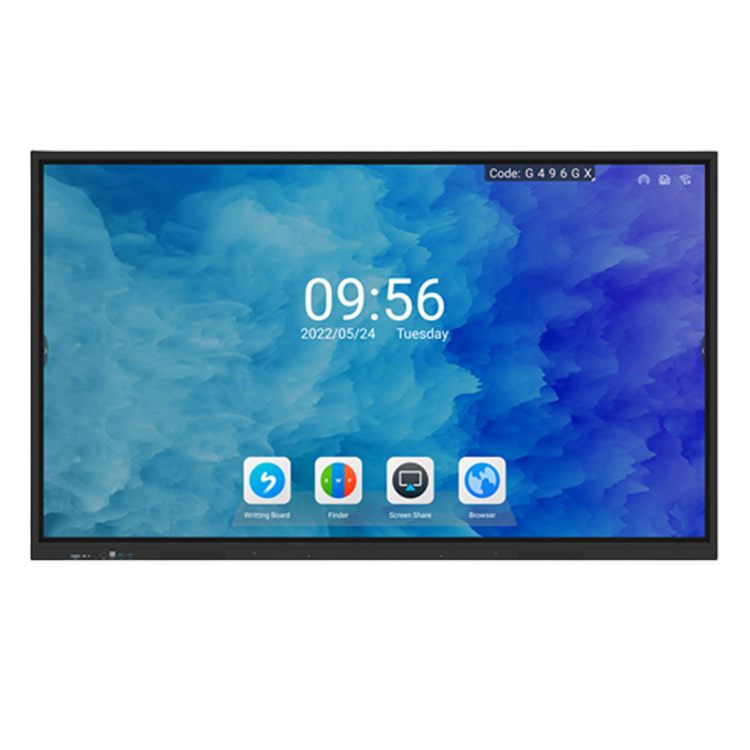

Product name
|
Interactive Touch Panel
|
|
|
Model
|
IS-5518
|
|
|
Panel Size
|
55" 65" 75" 85" 86" 98" 110"(Optional)
|
|
|
Type of panel
|
IPS/VA
|
|
|
VisualRatio
|
16:9
|
|
|
Lightsource
|
DLED
|
|
|
Max Visual Area
|
1429.1(H)×804.1(V)mm
|
|
|
Resloution
|
3840 x 2160pixels
|
|
|
Brightness
|
350cd/m²
|
|
|
Contrast ration
|
4000:1
|
|
|
Frame rate
|
60Hz
|
|
|
Viewing angle
|
178°(H)/178°(V)
|
|
|
Life time
|
30,000hrs
|
|
|
Color saturability(x%NTSC)
|
72%
|
|
|
Pixel pitch
|
0.4935x0.4935
|
|
|
Display colors
|
1.07B(10bit)
|
|
|
|
COAX*1, RS232*1, MINI AV*1, MINI AV OUT*1,EARPHONE*1, MIC IN*1, RJ45 IN*1, RJ45 OUT*1, VGA*1(Optional), PC AUDIO*1(Optional), MINIYPBPR*1(Optional), DP IN*1(Optional), HD MI*2, TOUCH OUT*1, Android USB3.0*1, Public USB3.0*1, HD MI OUT*1(Optional), TF CARD*1, TYPE-C*1(front)
|
|
|
Language
|
OSD (CH, En)
|
|
|
Accessory
|
Power cord*1, Stylus pen*2, Wall mount*1, Operation manual*1
|
|
|
Audio-video parameters
|
|
|
|
Speaker
|
Soundtrack: 2.0
Power: 2×15W |
|
|
Touch Panel
|
|
|
|
Touch specififications
|
Non-contact infrared sensing technology
|
|
|
Support systems
|
Win 10/Win 8/Win 7/Win XP/Android/Linux/Mac OS X/Chrome
|
|
|
Touch points
|
20 PointsTouch
|
|
|
Min.Identifier
|
2mm
|
|
|
Input mode
|
Opaqueo bject(finger,pen,etc)
|
|
|
Respond time
|
≤10ms
|
|
|
Touch depth
|
±1mm
|
|
|
Writing height
|
≤3mm
|
|
|
Writing display
|
Single Stylus pen two-colour
|
|
|
Output coordinates
|
32767(W)×32767(D)
|
|
|
Input method
|
Opaque objects (such as fifingers, pens, etc.)
|
|
|
Operating System
|
|
|
|
System Version
|
Android 11.0
|
|
|
CPU
|
A73*4+A53*4
|
|
|
GPU
|
GPUMali-G52*8
|
|
|
RAM
|
4GB(Standard)/8GB(Optional)
|
|
|
ROM
|
32GB(Standard)/64and128GB(Optional)
|
|
|
Wireless
|
|
|
|
Bluetooth
|
Version: 5.0
Working Frequency: 2.4GHz Working Distance: 0~10m |
|
|
|
Version: 802.11ac/b/g/n/a/ax
Working Frequency: 2.4GHz/5GHz Working Distance: 0~10m
Remark: Viathe wireless module SI07B
|
|
|
Power
|
|
|
|
Voltage
|
100-240V～50/60Hz 4A
|
|
|
Max power consumption
|
280W
|
|
|
Standby power consumption
|
≤0.5W
|
|
|
Environmen
|
|
|
|
Working temperature
|
0℃～40℃
|
|
|
Working humidity
|
10%~90%RH
|
|
|
Storage temperature
|
-20℃～60℃
|
|
|
Working humidity
|
10%〜90%RH
|
|
|
Working Elevation
|
<5000m
|
|
|
Structure
|
|
|
|
Net weight
|
58KGS
|
|
|
Gross weight
|
68KGS
|
|
|
Product dimensions
|
1709×1020×88mm
|
|
|
Packing dimensions
|
1860×220×1160mm
|
|
|
VESA hole site
|
600×400mm
|
|
|
Wall mounting screw specifications
|
M8×25mm
|
|
