Quick Details
-
Weight:
-
5300 KG
-
Drilling Diameter:
-
90-140mm
-
Drilling Depth:
-
Max.35m
-
Product name:
-
DTH Drilling Rig
-
Application:
-
mining, quarries ,breaking works ,construction work
-
Feature:
-
High Drilling Efficiency
-
Keyword:
-
DTH Borehole Drilling Rig
-
Lifting force:
-
25KN
-
Working pressure:
-
0.7-1.8Mpa
-
Air consumption:
-
10-18m3/min
-
Rotate speed:
-
0-140r/min
-
Rotational torque(Max):
-
2500N.m
-
Walking speed:
-
0-2.5km/h
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANROCK
-
Dimension(L*W*H):
-
5550*2290*2600mm
-
Weight:
-
5300 KG
-
Drilling Diameter:
-
90-140mm
-
Drilling Depth:
-
Max.35m
-
Product name:
-
DTH Drilling Rig
-
Application:
-
mining, quarries ,breaking works ,construction work
-
Feature:
-
High Drilling Efficiency
-
Keyword:
-
DTH Borehole Drilling Rig
-
Lifting force:
-
25KN
-
Working pressure:
-
0.7-1.8Mpa
-
Air consumption:
-
10-18m3/min
-
Rotate speed:
-
0-140r/min
-
Rotational torque(Max):
-
2500N.m
-
Walking speed:
-
0-2.5km/h

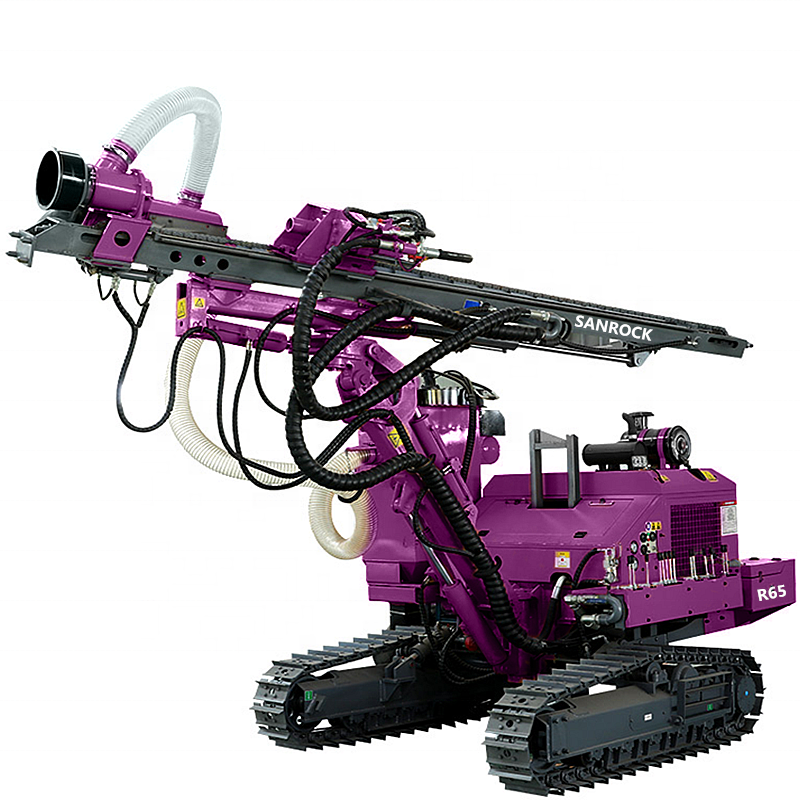

Rotary borehole DTH drilling rig high efficiency mining hydraulic crawler drilling machine
Products Description
1.This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.
2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.
3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency.
4. All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.
5. Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.
