- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZL
-
Model Number:
-
ZL-6001
-
Name:
-

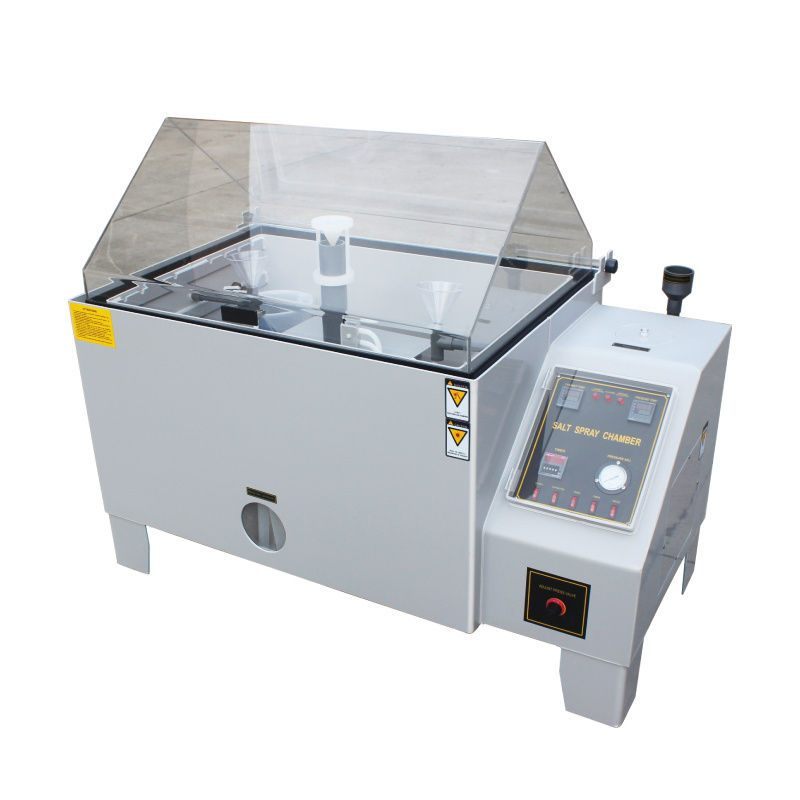

Environment Test Chamber CCT Salt Spray Corrosion Test Machine
-
Inside box size(cm):
-
60*45*40 / Customized
-
Outside box size(cm):
-
107*60*118 / Customized
-
Testing room temperature:
-
Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
-
Pressure barrel temperature:
-
Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
-
Testing room Capacity:
-
60,120,270,480L / Customized
-
Power supply:
-
220V 50Hz or customized
-
Air pressure:
-
1.00±0.01kgf/cm2
-
Brine tank capacity:
-
>15L / Customized
-
PH:
-
6.5~7.2 3.0~3.2
Quick Details
-
Warranty:
-
2 years
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZL
-
Model Number:
-
ZL-6001
-
Name:
-
Environment Test Chamber CCT Salt Spray Corrosion Test Machine
-
Inside box size(cm):
-
60*45*40 / Customized
-
Outside box size(cm):
-
107*60*118 / Customized
-
Testing room temperature:
-
Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
-
Pressure barrel temperature:
-
Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
-
Testing room Capacity:
-
60,120,270,480L / Customized
-
Power supply:
-
220V 50Hz or customized
-
Air pressure:
-
1.00±0.01kgf/cm2
-
Brine tank capacity:
-
>15L / Customized
-
PH:
-
6.5~7.2 3.0~3.2
ASTM G85 / B368 / D1654 / E691 NSS CASS ACSS Simulation Salt Spray Corrosion Test Chamber
Product Overview
Salt Spray Corrosion Chamber used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.
FEATURES AT A GLANCE
Corresponding standard :
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Detailed configurations as follows:
1, according to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control
(A) Salt spray test: NSS, ACSS
1. testing room : 35 ℃ ± 1 ℃
2 saturated air barrels : 47 ℃ ± 1 ℃
(B) anti-corrosion test: CASS (copper acetate)
1.testing room: 50 ℃ ± 1 ℃
2 saturated air barrels: 63 ℃ ± 1 ℃
2, air supply system: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).
(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.
(B) Testing configuration is switch connector designed for SO2.
3, spray form:
(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.
(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.
(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).
4, heating devices:
By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).
5, add water systems:
Using automatic water replenishment system, automatic replenishment when the water level is too low.
6, safe protective device:
(A) low water level, automatically cut off power supply.
(B) over-temperature, automatic cut off the power supply.
(C) attached to the safe warning light device.
(A) Salt spray test: NSS, ACSS
1. testing room : 35 ℃ ± 1 ℃
2 saturated air barrels : 47 ℃ ± 1 ℃
(B) anti-corrosion test: CASS (copper acetate)
1.testing room: 50 ℃ ± 1 ℃
2 saturated air barrels: 63 ℃ ± 1 ℃
2, air supply system: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).
(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.
(B) Testing configuration is switch connector designed for SO2.
3, spray form:
(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.
(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.
(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).
4, heating devices:
By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).
5, add water systems:
Using automatic water replenishment system, automatic replenishment when the water level is too low.
6, safe protective device:
(A) low water level, automatically cut off power supply.
(B) over-temperature, automatic cut off the power supply.
(C) attached to the safe warning light device.
PRODUCT SPECIFICATIONS
|
Model
|
|||||
|
Inside box size(cm)
|
60x45x40
|
90x60x50
|
160x100x50
|
||
|
Outside box size(cm)
|
107x60x118
|
141x88x128
|
210x130x140
|
||
|
Testing room temperature
|
Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ |
|
|
||
|
Pressure barrel temperature
|
Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
|
|
|
||
|
Brine temperature
|
35℃±1℃ 50℃±1℃
|
|
|
||
|
Testing room Capacity
|
108L
|
270L
|
600L
|
||
|
Brine tank capacity
|
15L
|
25L
|
50L
|
||
|
Salt concentration
|
The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)
|
|
|
||
|
Air pressure
|
1.00±0.01kgf/cm2
|
|
|
||
|
Spray volume
|
1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)
|
|
|
||
|
Testing room relative humidity
|
85% above
|
|
|
||
|
PH
|
6.5~7.2 3.0~3.2
|
|
|
||
|
Spray form
|
Programmable spray (Including continuous and intermittent spray)
|
|
|
||
|
Power
|
AC220V1Φ10A
|
AC220V1Φ15A
|
AC220V1Φ20A
|
||
