※CE RoHS Design Standard
※ISO9001 Quality System
※IP68 Waterproof
※Overcurrent protection
※Short circuit protection
※High efficiency
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Calculus
-
Model Number:
-
C10-42A5V3A2S/C10-60J5V3A2S*3L
-
Output Frequency:
-
0-400HZ
-
Size:
-
46*32*18mm/70*40*24mm
-
Weight:
-
65/120G
-
Product name:
-

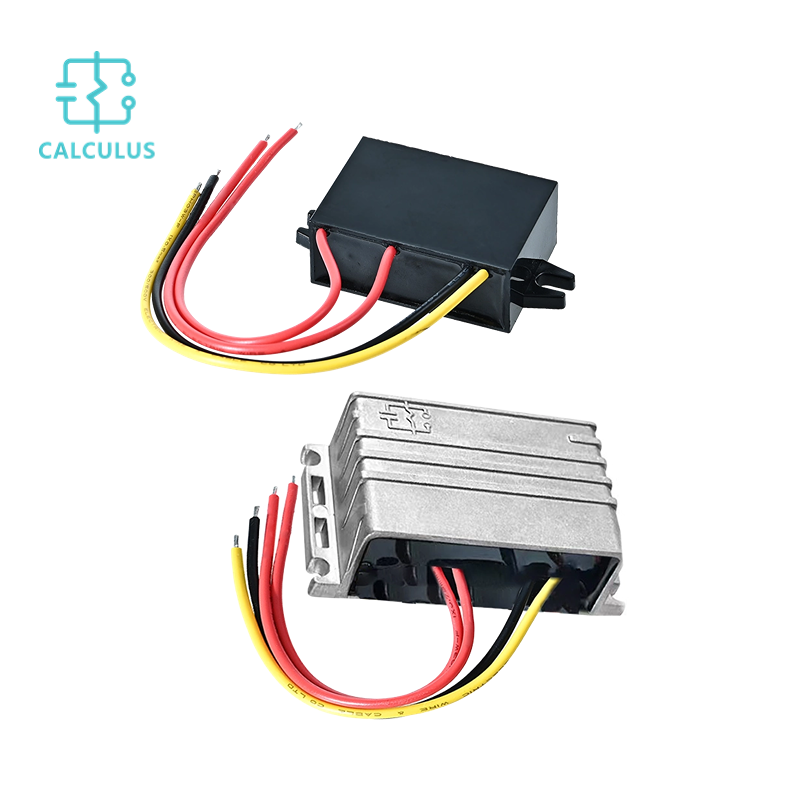

10-42ACV/DC10-60V To 5V 3A Steo Down Converter
-
Warranty:
-
12 Months
-
Efficiency:
-
95%
-
Waterproof rating:
-
IP67
-
Cooling Way:
-
Free air convection
-
Case Material:
-
plastic
-
Customized:
-
Accept customized converter
-
Module Properties:
-
non-isolated buck module
-
OEM:
-
accept OEM logo/label/manual/packing box
-
Cable Length:
-
13-14cm
-
Certificate:
-
CE/RoHS
Quick Details
-
Output Current:
-
3AMax
-
Customized support:
-
accept OEM logo/label/manual/packing box, Accept customized converter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Calculus
-
Model Number:
-
C10-42A5V3A2S/C10-60J5V3A2S*3L
-
Output Frequency:
-
0-400HZ
-
Size:
-
46*32*18mm/70*40*24mm
-
Weight:
-
65/120G
-
Product name:
-
10-42ACV/DC10-60V To 5V 3A Steo Down Converter
-
Warranty:
-
12 Months
-
Efficiency:
-
95%
-
Waterproof rating:
-
IP67
-
Cooling Way:
-
Free air convection
-
Case Material:
-
plastic
-
Customized:
-
Accept customized converter
-
Module Properties:
-
non-isolated buck module
-
OEM:
-
accept OEM logo/label/manual/packing box
-
Cable Length:
-
13-14cm
-
Certificate:
-
CE/RoHS
Specification
10-42ACV/DC10-60V To 5V 3A 2S
※ISO9001 Quality System
※IP68 Waterproof
※Overcurrent protection
※Short circuit protection
※High efficiency
|
Electrical characteristics
|
Model No.
|
C10-42A5V3A2S
|
|
|
|
|||
|
Input parameters
|
Input Voltage Range
|
10-42VAC/DC10-60V
|
|
|
|
|||
|
|
Input Voltage
|
AC12/24/36V DC12/24/36/48V
|
|
|
|
|||
|
|
Conversion Efficiency
|
95%
|
|
|
|
|||
|
|
input line
|
Red+Black- 13-14cm
|
|
|
|
|||
|
Output parameters
|
Output Voltage
|
5V
|
|
|
|
|||
|
|
Output current
|
3A
|
|
|
|
|||
|
|
Output Power
|
15W MAX
|
|
15W Max
|
|
|||
|
|
tatic power
|
20mA
|
20mA
|
|
|
|||
|
|
Ripple/noise
|
0-200mVp-p
|
0-200mVp-p
|
|
|
|||
|
|
Output line
|
Yellow+Black- 13-14CM
|
Yellow+Black- 13-14CM
|
|
|
|||
|
Environmental parameters
|
Operating temperature
|
-20~65°C
|
-20~65°C
|
|
|
|||
|
|
Storage temperature
|
-40~+85℃
|
-40~+85℃
|
|
|
|||
|
|
Working humidity
|
10%~90%RH
|
10%~90%RH
|
|
|
|||
|
Protective function
|
Working humidity
|
IP67
|
IP67
|
|
|
|||
|
|
Protective function
|
Over-current, Over-temperature, Short-circuit
|
Over-current, Over-temperature, Short-circuit
|
|
|
|||
|
Other parameters
|
weight
|
65G
|
45G
|
|
|
|||
|
|
volume
|
46*32*18mm
|
46*27*14mm
|
|
|
|||
|
|
Case Material
|
plastic case
|
Aluminum shell
|
|
|
|||
|
|
Product Weight
|
Free air convection
|
Free air convection
|
|
|
|||
10-42ACV/DC10-60V To 5V 3A 3L
※CE RoHS Design Standard
※ISO9001 Quality System
※IP68 Waterproof
※Overcurrent protection
※Short circuit protection
※High efficiency
|
Electrical characteristics
|
Model No.
|
C10-42A5V3A3L
|
|
|
|
|||
|
Input parameters
|
Input Voltage Range
|
10-42VAC/DC10-60V
|
|
|
|
|||
|
|
Input Voltage
|
AC12/24/36V DC12/24/36/48V
|
|
|
|
|||
|
|
Conversion Efficiency
|
95%
|
|
|
|
|||
|
|
input line
|
Red+Black- 13-14cm
|
|
|
|
|||
|
Output parameters
|
Output Voltage
|
5V
|
|
|
|
|||
|
|
Output current
|
3A
|
|
|
|
|||
|
|
Output Power
|
15W MAX
|
|
15W Max
|
|
|||
|
|
tatic power
|
20mA
|
20mA
|
|
|
|||
|
|
Ripple/noise
|
0-200mVp-p
|
0-200mVp-p
|
|
|
|||
|
|
Output line
|
Yellow+Black- 13-14CM
|
Yellow+Black- 13-14CM
|
|
|
|||
|
Environmental parameters
|
Operating temperature
|
-20~65°C
|
-20~65°C
|
|
|
|||
|
|
Storage temperature
|
-40~+85℃
|
-40~+85℃
|
|
|
|||
|
|
Working humidity
|
10%~90%RH
|
10%~90%RH
|
|
|
|||
|
Protective function
|
Working humidity
|
IP67
|
IP67
|
|
|
|||
|
|
Protective function
|
Over-current, Over-temperature, Short-circuit
|
Over-current, Over-temperature, Short-circuit
|
|
|
|||
|
Other parameters
|
weight
|
120G
|
45G
|
|
|
|||
|
|
volume
|
70*40*24mm
|
46*27*14mm
|
|
|
|||
|
|
Case Material
|
Aluminum shell
|
Aluminum shell
|
|
|
|||
|
|
Product Weight
|
Free air convection
|
Free air convection
|
|
|
|||
Recommend Products
FAQ
1. Are you a manufacturer?
Answer: Yes! Huizhou Calculus Technology Com., Ltd is a professional leading manufacturer engaged in the research, development, production, sale and service of DC-DC, AC-DC switching power, we have developing team with above 15 years experience can offer personalized power solutions. If you have a chance, you can visit us anytime. Our factory address is 6th Floor, Building 8, Yinong Technology Rural Revitalization Technology Industry Demonstration Park, No. 3 Xinhua Avenue, Chenjiang Street, Zhongkai High-tech Zone, Huizhou City, Guangdong Province.
Answer: Yes! Huizhou Calculus Technology Com., Ltd is a professional leading manufacturer engaged in the research, development, production, sale and service of DC-DC, AC-DC switching power, we have developing team with above 15 years experience can offer personalized power solutions. If you have a chance, you can visit us anytime. Our factory address is 6th Floor, Building 8, Yinong Technology Rural Revitalization Technology Industry Demonstration Park, No. 3 Xinhua Avenue, Chenjiang Street, Zhongkai High-tech Zone, Huizhou City, Guangdong Province.
2.
What is your MOQ? Delivery time? Shipping Cost?
Answer: Calculus's normal MOQ is only 1pcs.
The delivery time and shipping cost depends on the quantity of goods, the shipping method and the country. Once the order's details are confirmed. we will calculate the cost correspondingly.
The delivery time and shipping cost depends on the quantity of goods, the shipping method and the country. Once the order's details are confirmed. we will calculate the cost correspondingly.
3.
Can I get samples?
Answer: Yes. We can offer samples for checking. We usually send samples by FedEx, DHL, UPS & TNT etc. If you have carrier account, it will be pleased to ship with your account.
Answer: Yes. We can offer samples for checking. We usually send samples by FedEx, DHL, UPS & TNT etc. If you have carrier account, it will be pleased to ship with your account.
4.
Is it acceptable to print my logo on the product?
Answer: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Answer: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
5.
How to place an order?
Answer: Please send PO to Calculus and we will send back a PI accordingly. You will sign the PI back, wire the payment and send T/T copy for our reference. Then the products will be in preparation. After getting the payment, the items will be sent out ASAP.
Answer: Please send PO to Calculus and we will send back a PI accordingly. You will sign the PI back, wire the payment and send T/T copy for our reference. Then the products will be in preparation. After getting the payment, the items will be sent out ASAP.
6.
How can you make sure your quality? What's your warranty service?
Answer: Quality is the life of Calculus. We only use the best quality (original) components to ensure the standard of our products is the highest. All products we sold out are produced by skilled workers and 100% inspected strictly by QC department before leaving Calculus's factory. Calculus provide 12 months warranty (not including shipping cost). For normal use, any raw materials or the production process by the quality problems cased by the date of purchase within 12 months, we provide free repair service. For improper use, such as improper installation/input voltage/modify the product or any other broken by man-made, the warranty will fail even if in the warranty period.
Answer: Quality is the life of Calculus. We only use the best quality (original) components to ensure the standard of our products is the highest. All products we sold out are produced by skilled workers and 100% inspected strictly by QC department before leaving Calculus's factory. Calculus provide 12 months warranty (not including shipping cost). For normal use, any raw materials or the production process by the quality problems cased by the date of purchase within 12 months, we provide free repair service. For improper use, such as improper installation/input voltage/modify the product or any other broken by man-made, the warranty will fail even if in the warranty period.
