Quick Details
-
Gauge:
-
1.5 GG
-
Knitting width:
-
762mm
-
Applicable Industries:
-
Fancy yarn industry
-
Product Type:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
2310 W
-
Weight:
-
830 KG
-
Dimension(L*W*H):
-
1750*1950*1750mm
-
Marketing Type:
-
Hot product 2023
-
Product Name:
-
VG-980 series crochet machine
-
After-sales Service Provided:
-
Door-to-door installation
-
Weft density range:
-
5~20s/cm
-
The girth of rack frame:
-
170mm
-
Yarn creel count:
-
260
-
Yarn creel distance:
-
200mm
-
Shape size of winding section:
-
2300*2790*2400mm
-
Shape size of yarn frame:
-
2100*1880*2750mm
-
Application:
-
Fabric Knitting
-
Machine Type:
-
Crochet Kniting Machine
Quick Details
-
Type:
-
Fancy Yarn
-
Production Capacity:
-
Main shaft speed:1800r/min
-
Knitting Style:
-
Warp
-
Gauge:
-
1.5 GG
-
Knitting width:
-
762mm
-
Applicable Industries:
-
Fancy yarn industry
-
Product Type:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
2310 W
-
Weight:
-
830 KG
-
Dimension(L*W*H):
-
1750*1950*1750mm
-
Marketing Type:
-
Hot product 2023
-
Product Name:
-
VG-980 series crochet machine
-
After-sales Service Provided:
-
Door-to-door installation
-
Weft density range:
-
5~20s/cm
-
The girth of rack frame:
-
170mm
-
Yarn creel count:
-
260
-
Yarn creel distance:
-
200mm
-
Shape size of winding section:
-
2300*2790*2400mm
-
Shape size of yarn frame:
-
2100*1880*2750mm
-
Application:
-
Fabric Knitting
-
Machine Type:
-
Crochet Kniting Machine
Product Description
VG-980 Crochet Machine
VG-980 model is a traditional high speed fancy yarn crochet knitting machine, first kints cloth with warp and weft yarn, then cuts the warp yarn to form the final yarn. otherwise it kints warp and weft yarn the straightly kit belt yarn.VG-980 machine is suitable to knit various kind of yarns,both natural fibers(wool, silk,cotton, linen, etc) and synthetic fibers(polyester, acrylic etc) This entire material can de dyed before of after knitting, in accordance with the requirements. The characteristic of the patter yarn is the core yarn knitted into ring and the weft one used as its mattress. The finished yarn is of flat shape.

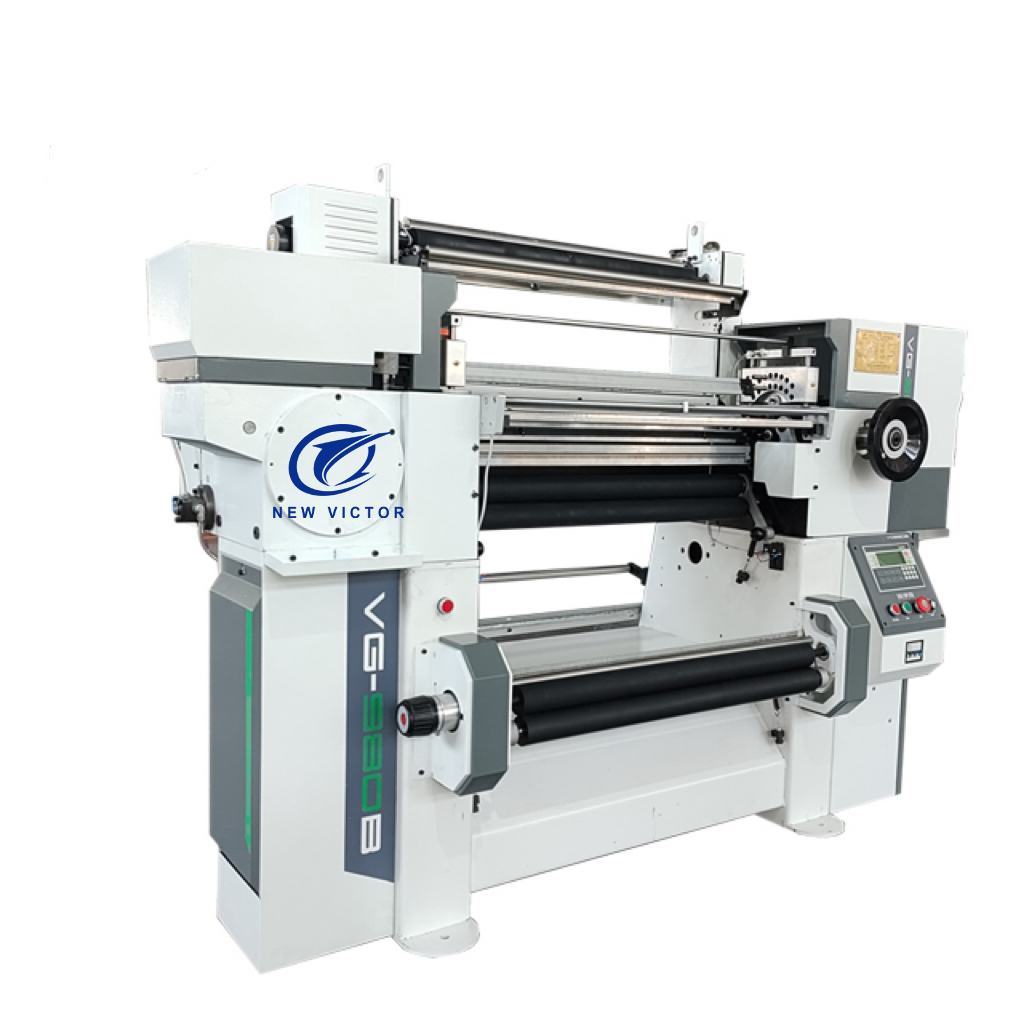

VG-980B Crochet Machine
VG-980B type crochet machine is a new type of crochet machine developed by our company on the basis of extensive absorption of customer experience and similar models. It is an upgraded model of VG-980 type crochet machine in our company and has obtained the national patent. Can greatly increase the speed and output of the whole machine without changing the width of the whole machine.
The advantages of the general 980 are as follows:
• Using servo motor weft feeding, weft feeding speed is higher, more accurate;
• Use touch screen to set process parameters, the replacement process is more convenient and flexible;
• The key parts are imported high quality bearings, the precision is higher, the production speed is higher, and the output is increased more significantly.
VG-980D Crochet Machine
The VG-980D type Crochet machine is a new type of computer crochet machine developed by our company on the basis of extensive absorption of customer experience and similar models. It is the upgrading model of VG-980 type crochet machine in our company. Is used to produce all kinds of complex fancy yarn special model. The range of fancy yarn that can be produced is wider, computerize to change the pattern, the operation of changing the pattern is more convenient and quick, which greatly reduces the labor intensity of the workers and improves the production efficiency.
The advantages of the general 980 are as follows:
• Use servo motor drive, warp and weft receiving wheel and weft needle plate are servo motor drive, transmission more accurate;
• Adopts the special CAD/CAM programming technology of fancy yarn developed independently, sets the process parameters through the touch screen, the replacement process is more convenient and flexible, makes the production of fancy yarn more convenient, and the pattern is more rich and diverse;
• Position processing module adopts the intelligent system design of coding sensor combined with electronic and software technology.
The reaction speed is extremely fast, the precision is higher, the operation is reliable and the maintenance is convenient.
Specification
|
item
|
value
|
|
Applicable Industries
|
Fancy yarn industry
|
|
Condition
|
New
|
|
Product Type
|
Other
|
|
Type
|
Fancy Yarn
|
|
Production Capacity
|
Main shaft speed:1800r/min
|
|
Place of Origin
|
China
|
|
|
Jiangsu
|
|
Power
|
2310W
|
|
Knitting Style
|
Warp
|
|
Weight
|
830KG
|
|
Dimension(L*W*H)
|
1750*1950*1750mm
|
|
Warranty
|
3 years
|
|
Key Selling Points
|
High Productivity
|
|
Gauge
|
1.5 GG
|
|
Knitting width
|
762mm
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
Hot product 2023
|
|
Warranty of core components
|
3 years
|
|
Core Components
|
PLC
|
|
Product Name
|
VG-980 series crochet machine
|
|
After-sales Service Provided
|
Door-to-door installation
|
|
Weft density range
|
5~20s/cm
|
|
The girth of rack frame
|
170mm
|
|
Yarn creel count
|
260
|
|
Yarn creel distance
|
200mm
|
|
Shape size of winding section
|
2300*2790*2400mm
|
|
Shape size of yarn frame
|
2100*1880*2750mm
|
Packing & Delivery
sea-worthy packaging
