Quick Details
-
Product name:
-

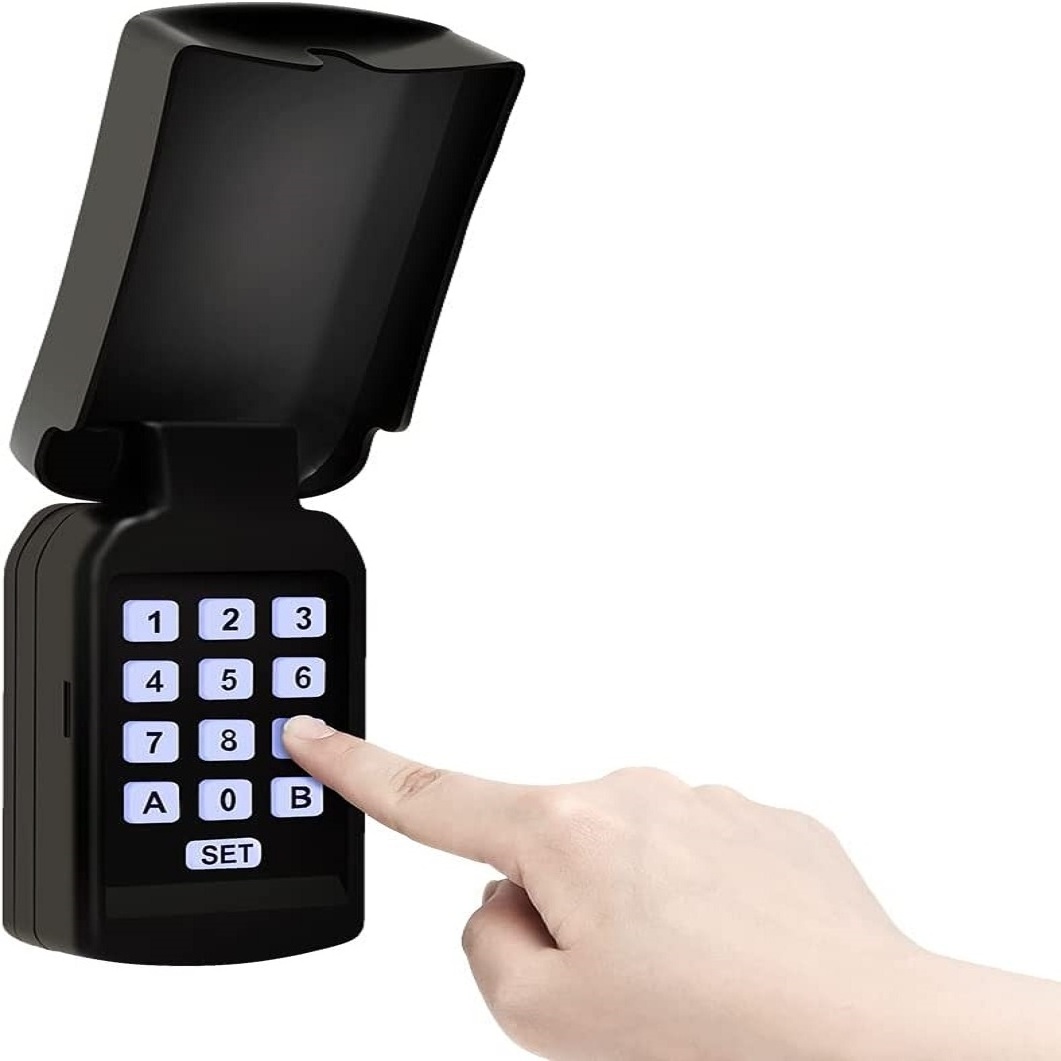

Electronic Wireless Wired Access Control Keypad
-
Connection:
-
Wired and Wireless
-
Power Supply For Wireless Mode:
-
1x9VDC Carbon Battery(incl.)
-
Power Supply For Wired Mode:
-
9-24VDC by Gate Opener System
-
Open mode:
-
Digital mode
-
Access Code:
-
4 Digits
-
Number of codes supported one opener:
-
64 codes
-
Waterproof:
-
IP55 Waterproof degree
-
Compatibility:
-
All the Sanford Gate Openers & most third party gate openers
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LockMaster
-
Model Number:
-
LM188
-
Product name:
-
Electronic Wireless Wired Access Control Keypad
-
Connection:
-
Wired and Wireless
-
Power Supply For Wireless Mode:
-
1x9VDC Carbon Battery(incl.)
-
Power Supply For Wired Mode:
-
9-24VDC by Gate Opener System
-
Open mode:
-
Digital mode
-
Access Code:
-
4 Digits
-
Number of codes supported one opener:
-
64 codes
-
Waterproof:
-
IP55 Waterproof degree
-
Compatibility:
-
All the Sanford Gate Openers & most third party gate openers
Product Description
Standalone Access Controller System IP67 Waterproof Keypad Door Entry Electronic Wireless Wired Access Control Keypad
:
·[Universal Keypad] Sanford LM188 Universal Keypad is a smart access control keypad with advanced SANFORD code technology. Simply enter a short password to open the gate without carrying a key. The flexible connection modes of “wired & wireless” are for your selection. Designed as an ideal accessory for security, this numeric keypad greatly improves the experience of keyless operation. It brings high convenience for controlled access, making an easy way for guests to access your gate opener system.
·[Clever Design] This keypad is suitable for the household, courtyard, farm, ranch, warehouse and other commercial / industrial sites. Weather-resistant for all seasons of the year. The LED backlight automatically illuminates the keypad under low-light conditions. Made of high-quality heat-resistant and durable anti-deformation materials, the device offers stable protection in bad weather conditions and provides a long-lasting performance. The battery lasts up to 2 years at 5 activations per day.
·[Safe to Use] Supports up to 64 individual sets of 4-digit access codes, including the temporary and permanent codes. Temporary password is easy to manage and programmed for the guests / deliveryman. You can add this LM188 Keypad on the entrance, exit, or both sides of your gate. Our advanced SANFORD code technology will prevent unwanted entry, ensuring multiple protection & safety. Additionally, this dual channel transmitter design will access two different openers separately.
·[Wide Compatibility] Works with all Sanford gate openers, and compatible with most third party swing / sliding gate opener or garage door opener whose control board accepts “Normally Open Dry Contact” signal. LM188 can be powered by the 9VDC carbon battery (included in the package), or the control board of the gate opener, or by the external 9-24VAC/DC power source. Kindly note that this keypad works with the gate / garage door openers only, and does not support other door access control system.
·[Wireless & Wired Mode] Comes with a 6F22 carbon battery, the wireless mode is strongly recommended for less wire connections. Easy DIY installation & simple programming within minutes. Connected with our LM138 External Receiver (sold separately), this digital keypad will operate the third-party gate opener in this mode. On the other hand, the wired mode is a good solution in locations where frequency interference is occurred or where the control box is installed far away from the gate operator.
·[Clever Design] This keypad is suitable for the household, courtyard, farm, ranch, warehouse and other commercial / industrial sites. Weather-resistant for all seasons of the year. The LED backlight automatically illuminates the keypad under low-light conditions. Made of high-quality heat-resistant and durable anti-deformation materials, the device offers stable protection in bad weather conditions and provides a long-lasting performance. The battery lasts up to 2 years at 5 activations per day.
·[Safe to Use] Supports up to 64 individual sets of 4-digit access codes, including the temporary and permanent codes. Temporary password is easy to manage and programmed for the guests / deliveryman. You can add this LM188 Keypad on the entrance, exit, or both sides of your gate. Our advanced SANFORD code technology will prevent unwanted entry, ensuring multiple protection & safety. Additionally, this dual channel transmitter design will access two different openers separately.
·[Wide Compatibility] Works with all Sanford gate openers, and compatible with most third party swing / sliding gate opener or garage door opener whose control board accepts “Normally Open Dry Contact” signal. LM188 can be powered by the 9VDC carbon battery (included in the package), or the control board of the gate opener, or by the external 9-24VAC/DC power source. Kindly note that this keypad works with the gate / garage door openers only, and does not support other door access control system.
·[Wireless & Wired Mode] Comes with a 6F22 carbon battery, the wireless mode is strongly recommended for less wire connections. Easy DIY installation & simple programming within minutes. Connected with our LM138 External Receiver (sold separately), this digital keypad will operate the third-party gate opener in this mode. On the other hand, the wired mode is a good solution in locations where frequency interference is occurred or where the control box is installed far away from the gate operator.
Specification
|
item
|
LM188 Universal Wired Wireless Keypad
|
|
Connection
|
Wireless / Wired Button Type
|
|
Power Supply
|
Wireless Mode: 1x9VDC Carbon Battery(incl.) /
Wired Mode: 9-24VDC by Gate Opener System or external power supply |
|
Open mode
|
Digital Mode
|
|
Access Code
|
4 Digits
|
|
Applications
|
Gate Openers
|
|
Compatibility
|
All the Sanford Gate Openers & most third party gate openers which Accept: "Normally open dry contact" signal
|
|
Number of controlled gate openers
|
Wireless mode: Countless gate openers synchronously;
two swing gate openers Separately, or one sliding gate opener. Wired mode: one gate opener |
|
Number of codes supported for one gate opener
|
64 codes
|
|
Control Range
|
Max. 34feet(10m)
|
|
Dimension of the keypad
|
4.5 x 2.8 x1.6"(117 x 70 x 40mm)
|
|
Waterproof
|
IP55 Waterproof degree
|
|
Package
|
1pc per inner white box, 52pcs per carton(26kg / 52x37x42cm)
|
