Quick Details
-
Resolution:
-
800X480
-
Panel Type:
-
TFT
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
LCD Rack Mount Monitor
-
Screen size::
-
5"x3
-
Resolution::
-
800X480pixels
-
Dot pitch::
-
0.045(w)X0.135(H)mm
-
Aspect ratio::
-
16: 9
-
Contrast::
-
500:1
-
Backlight::
-
LED
-
Viewing Angle::
-
70°/70°(L/R) 50°/70°(U/D)
-
Input:
-
3G/HD/SD-SDI HD Video Audio(L/R)
-
Output:
-
3G/HD/SD-SDI HD Video Stereo Headphone
Quick Details
-
Screen Size:
-
5"
-
Brightness:
-
500cd/m
-
Contrast Ratio:
-
800:1
-
Resolution:
-
800X480
-
Panel Type:
-
TFT
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
LCD Rack Mount Monitor
-
Screen size::
-
5"x3
-
Resolution::
-
800X480pixels
-
Dot pitch::
-
0.045(w)X0.135(H)mm
-
Aspect ratio::
-
16: 9
-
Contrast::
-
500:1
-
Backlight::
-
LED
-
Viewing Angle::
-
70°/70°(L/R) 50°/70°(U/D)
-
Input:
-
3G/HD/SD-SDI HD Video Audio(L/R)
-
Output:
-
3G/HD/SD-SDI HD Video Stereo Headphone

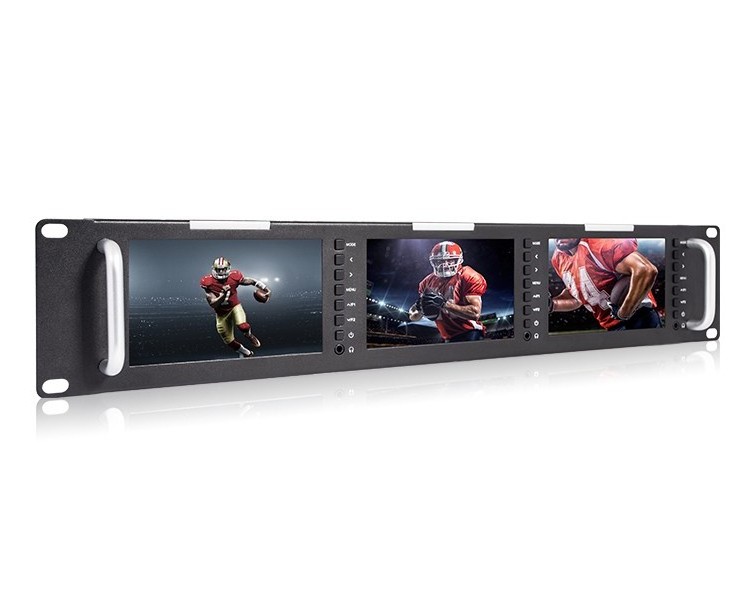

5 inch Triple 2RU 800X480pixels Broadcast LCD Rack Mount Hd Monitor Sdi Monitor
1. Wide view angle, High resolution 800 x 400, bright, colorful display
2. Slim design and 2RU size
3. HD,3G/HD/SD-SDI input and loop-through
4. Special Features:
Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
Check Field (Red, Green, Blue, Mono)
Pixel to Pixel
Center Marker and Safe Marker (80%, 85%, 9
0%, 93%, 96%,2.35:1)
Image Flip (Horizontal, Vertical, Hor&Ver)
Image Freeze
5. Monitoring via front panel 3.5mm stereo headphone jacks
6. Built-in LED tally indicators (Red, Green, Yellow)
7. Power using included 12-volt supply or use standard 4-pin XLR
Monitor parameters:
Model: A3-005
Introduction
Screen size: 5"x3
Resolution: 800 × 48 0pixels
Dot pitch: 0. 045 ( w )×0.1 3 5( H )mm
Aspect ratio: 16: 9
Brightness: 50 0cd/ m2
Contrast: 5 00:1
Backlight: LED
Viewing Angle: 70 °/ 70 °( L/R) 50 °/ 70 °( U/D)
Multi Format Input/Output Interfaces:
| Input |
3G/HD/SD-SDI,HD,Video,Audio,Ethernet |
| Output |
3G/HD/SD-SDI,HD,Video,Stereo Headphone |
Packing by carton, shipping by air or sea
ST Video-film Technology Co., Ltd -Top Ten Chinese National Radio&Television Brand and Enterprise in Broadcasting industry,also the developting producer on Virtual Studio Set in China, is the rmanufacturer and dealer of more kinds of World-Famous professional Broadcasting Equipments. System intergration like 3D Virtual Studio Set, OB Vans,Television Studio, Equipment such as camera crane, teleprompter, rotorcraft, led wall, track&tripod&dolly,etc.
Certifications: FCC,CE , RoHS approved.
