Quick Details
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
0.25-0.35m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GUANGLI
-
Model Number:
-
GL1000-A1-3
-
Warranty:
-
1 Year, Yes
-
Door width(m):
-
3.0
-
Door height(m):
-
2.66
-
Air flow (m3/h):
-
24000
-
vehical suited:
-
Saloon car
-
Usage:
-
Car Painting Baking
-
Color:
-
Red White Orange Blue
-
Filters:
-
High Efficiency Filter
-
Heating System:
-
Italy Riello G20 Diesel Burner
-
Lighting System:
-
Ceiling Light+Side Light
Quick Details
-
Power:
-
13.5KW
-
External Size:
-
7000*5300*3500mm
-
Internal Size:
-
6900*3900*2700mm
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
0.25-0.35m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GUANGLI
-
Model Number:
-
GL1000-A1-3
-
Warranty:
-
1 Year, Yes
-
Door width(m):
-
3.0
-
Door height(m):
-
2.66
-
Air flow (m3/h):
-
24000
-
vehical suited:
-
Saloon car
-
Usage:
-
Car Painting Baking
-
Color:
-
Red White Orange Blue
-
Filters:
-
High Efficiency Filter
-
Heating System:
-
Italy Riello G20 Diesel Burner
-
Lighting System:
-
Ceiling Light+Side Light

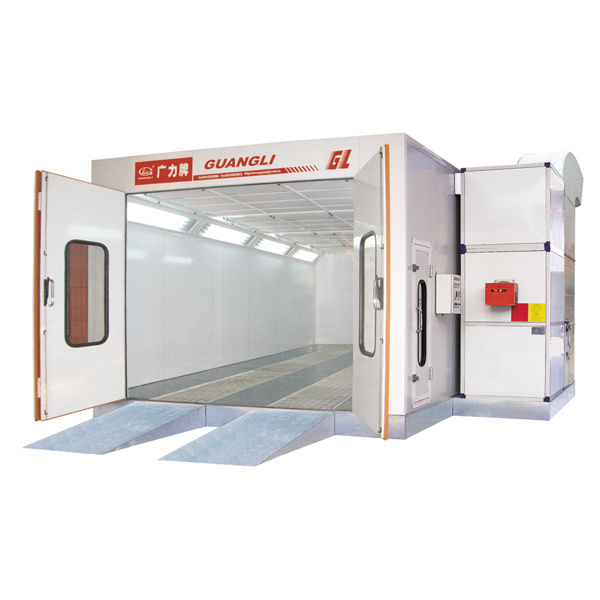

China Supplier Guangli Brand Cheap Car Paint Booth / Spray Painting Oven Prices
GuangLi Spray booth Feature
--Wall panel: sandwich style, δ=50mm, rock wool,polystyrene is available as required.
--Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
--Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
--Ramp: 2 pcs of vein board.--One unit of 7.5kw intake fan and one unit of 4kw exhaust fan .
--4m straight exhaust ducts, one 90° bend, and one 60° bend.4m straight chimney and 2 small bends.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. riello G20 burner.
--Roof filter: 4 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--2 pcs of floor filter and 1 pcs of air mouth filter.--Upper light: 10 sets, 4*40w per set.
--Control box: components made in china, overload, overheat, phase-lacking protection, engine Y star-delta start.
--Automatically stop when preset time is up.
--Constant temperature spraying.
| Technical Specifications | GL1000-A1 |
| External size(m) | 7.0×5.3×3.5 |
| Internal size(m) | 6.9×3.9×2.7 |
| Door width(m) | 3.0 |
| Door height(m) | 2.66 |
| Air flow (m3/h) | 24000 |
| Inside no-load air speed(m/s) | 0.25-0.35 |
| Power (kw) | 13.5 |
| Vehicle suited | Saloon car |
GuangLi Spray booth Show
1. More than 20 -year experience in Spray booth and car lift field .
2.Superb unique technology and Automatic production line.
3.Large order can be placed .
4.Advanced equipment and exquisite workmanship .
5.Durable and reliable .
6.Good pre-sales and after-sale s service .
