high yield, full automation,
simple operation, durable, strong machine, continuous production, high efficiency, less material waste, low production cost.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
15000
-
Product name:
-

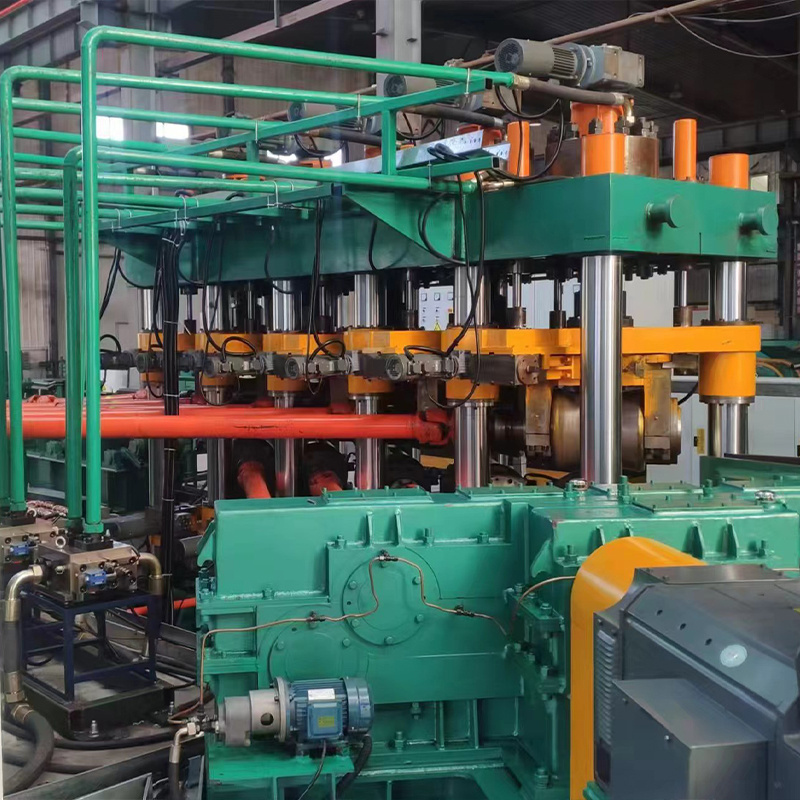

Precision tube machine
-
Delivery Time:
-
8-14 days
-
MOQ:
-
1 Set
-
Payment term:
-
30% TT Deposit+ 70% Balance
-
Packing:
-
Standard Seaworthy Standards
-
Number of Head Work:
-
50-130times/min
-
Head travel:
-
450mm
-
Outside dimension of rolling mill:
-
9000x1300x1400
-
Total weight of rolling mill:
-
15t
-
Connecting rod length:
-
1304.5mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
Hot Product 2023
-
Brand Name:
-
Huihao
-
Weight (KG):
-
15000
-
Product name:
-
Precision tube machine
-
Delivery Time:
-
8-14 days
-
MOQ:
-
1 Set
-
Payment term:
-
30% TT Deposit+ 70% Balance
-
Packing:
-
Standard Seaworthy Standards
-
Number of Head Work:
-
50-130times/min
-
Head travel:
-
450mm
-
Outside dimension of rolling mill:
-
9000x1300x1400
-
Total weight of rolling mill:
-
15t
-
Connecting rod length:
-
1304.5mm
Product Paramenters
|
Name
|
Parameter
|
|
|
Number of Head Work
|
50-130times/min
|
|
|
Head travel
|
450mm
|
|
|
Distance between rolling center and swing shaft
|
225mm
|
|
|
Distance between rolling center and crank Center
|
435mm
|
|
|
Rocker swing angle
|
60°30′
|
|
|
Rocker swing beta angle
|
32°59′
|
|
|
Crank radius
|
150mm
|
|
|
Connecting rod length
|
1304.5mm
|
|
|
Slideway length
|
210mm
|
|
|
Adjust the displacement of oblique block
|
25mm
|
|
|
Adjustment of Slide Block Connecting Head and Upper Link
|
22mm
|
|
|
Adjustment of upper connecting rod and rocker joint
|
20mm
|
|
|
(lower) Adjustment of connecting rod on rocker
|
15mm
|
|
|
Billet feed
|
1.5-2-2.5-3-4-5
|
|
|
Fast Moving Quantity of Tube Block
|
0.16m/s
|
|
|
Total Speed Ratio of Mechanical Drive
|
7.85
|
|
|
Rolling Center Height
|
850mm
|
|
|
Outside dimension of rolling mill
|
9000 × 1300 ×1400
|
|
|
Total weight of rolling mill
|
15t
|
|
|
Liaocheng Huihao Metal Products Co., Ltd.
|
|
|
Products Description
High precision, stable performance,
SIMPLE OPERATION
Reasonable design, easy to operate,
simple and easy to understand
operation panel, mode can be freely
switched, accurate control.
CUSTOMIZATION
Various specifications can be selected to support on-demand processing
customization to meet the needs of different industries
