Quick Details
-
Brand Name:
-
Omenfirst
-
Model Number:
-
NF1024K-P48-4S-10G-M3
-
Place of Origin:
-
Guangdong, China
-
Product name:
-

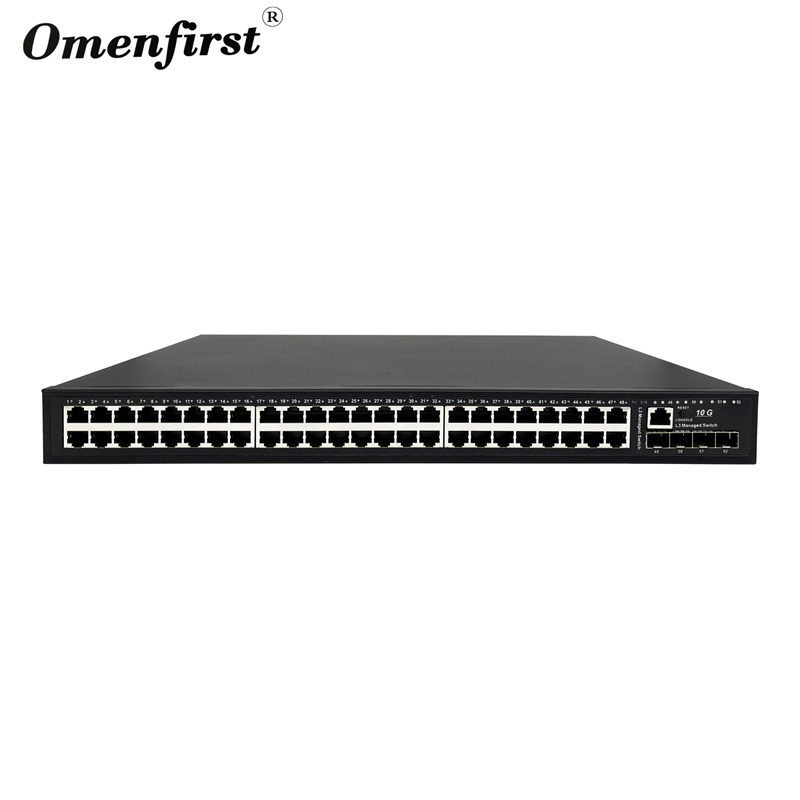

48 GE 4 10G SFP L3 Managed PoE Switch
-
Fixed port:
-
48*10/100/1000Base-TX PoE; 4*100/1000/2500/10000M SFP
-
Bandwidth:
-
256G
-
Packet Forwarding:
-
160.71Mpps
-
FLASH:
-
512MBytes
-
RAM:
-
512MBytes
-
MAC Address:
-
32K
-
External dimensions:
-
440*335*45mm
-
Power supply:
-
AC:100-240Vac 50-60Hz 7.5A max 625W
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
256G
-
Brand Name:
-
Omenfirst
-
Model Number:
-
NF1024K-P48-4S-10G-M3
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
48 GE 4 10G SFP L3 Managed PoE Switch
-
Fixed port:
-
48*10/100/1000Base-TX PoE; 4*100/1000/2500/10000M SFP
-
Bandwidth:
-
256G
-
Packet Forwarding:
-
160.71Mpps
-
FLASH:
-
512MBytes
-
RAM:
-
512MBytes
-
MAC Address:
-
32K
-
External dimensions:
-
440*335*45mm
-
Power supply:
-
AC:100-240Vac 50-60Hz 7.5A max 625W
|
Please Inquire For Batch Price
Support customization and overseas order allocation
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
48 GE 4 10G SFP L3 Managed PoE Switch
48*1000Mbps POE+4*10G SFP
Product parameters
|
Product name
|
48 GE 4 10G SFP L3 Managed PoE Switch
|
|
Model
|
NF1024K-P48-4S-10G-M3
|
|
Fixed Port
|
48*10/100/1000Base-TX PoE
4*100/1000/2500/10000M SFP |
|
PoE Port
|
1-48 port supports IEEE802.3af/at, max 30W/port, PoE out
|
|
PoE type
|
IEEE802.3af/at
|
|
Console Port
|
1*console port
|
|
Reset Key
|
1
|
|
PoE Pin
|
Af/at: 1/2+ 3/6-
|
|
PoE Bridge
|
max 600W
|
|
CPU
|
MIPS-34Kc dual-core 1GHz
|
|
DDR
|
4G DDR3
|
|
FLASH
|
512MBytes
|
|
RAM
|
512MBytes
|
|
Bandwidth
|
256Gbps
|
|
Packet Forwarding
|
160.71Mpps
|
|
MAC
|
32K
|
|
Buffer
|
16Mbit SRAM Packet Buffer
|
|
Jumbo Frame
|
Jumbo frame up to 12KB
|
|
VLAN Address
|
4K
|
|
Link Aggregation
|
Supports 128 trunk groups with up to 8 members per group
|
|
L3 Routing
|
IPV4 supports 12K; IPV6 supports 12K；
|
|
QoS Queue
|
8
|
|
Transmission Distance
|
10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) |
|
LED Indicator
|
PWR:Power LED
SYS:System LED 1-48:10/100/1000M Network connection indicator 49-52:10G SFP connection indicator |
|
Power
|
Built-in power AC：100-240Vac 50-60Hz 7.5A max 625W
|
|
Operating Temperature/Humidity
|
-10～+55°C；5%～90% RH Non coagulation
|
|
Storage Temperature/Humidity
|
-40～+75°C；5%～95% RH Non coagulation
|
|
Product /Packing size（L*W*H）
|
440*335*45mm 576*386*71mm
|
|
N.W/G.W（kg）
|
5.5kg/6.1kg
|
|
Lightning Protection level
|
6KV 8/20us；IP30
|
|
Installation
|
Rack-mount (optional machine hanger spare parts)
|
|
Certificate
|
CE FCC
|
Product application
Product specification
Metal case Bilateral heat dissipation
Efficient heat resistance and anti-interference
Q1.Can we get a sample?
Yes,but we need to charge for samples,we will return sample fee in later order.
Q2.Can you offer a better price?Any discount?
Yes ,price is not a problem,more quantity more attractive price.
Q3.Do you have MOQ?
Depending on the situation, please consult customer service for details.
Q4.OEM,ODM Severice is available?
Yes,Powelink provide good OEM/ODM service to our customers.
Q5.Can you take care for the shipment?
We will organize and schedule all shipping to your office if you want.
Q6.Lead time?
Sample order, 3-15 works days,bulk order, 7-30 work days after geting deposit.
Q7.What is your warranty period?
Warranty period is 12 months.
This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as
natural disasters,earthquakes,fires ,etc.
Yes,but we need to charge for samples,we will return sample fee in later order.
Q2.Can you offer a better price?Any discount?
Yes ,price is not a problem,more quantity more attractive price.
Q3.Do you have MOQ?
Depending on the situation, please consult customer service for details.
Q4.OEM,ODM Severice is available?
Yes,Powelink provide good OEM/ODM service to our customers.
Q5.Can you take care for the shipment?
We will organize and schedule all shipping to your office if you want.
Q6.Lead time?
Sample order, 3-15 works days,bulk order, 7-30 work days after geting deposit.
Q7.What is your warranty period?
Warranty period is 12 months.
This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as
natural disasters,earthquakes,fires ,etc.
