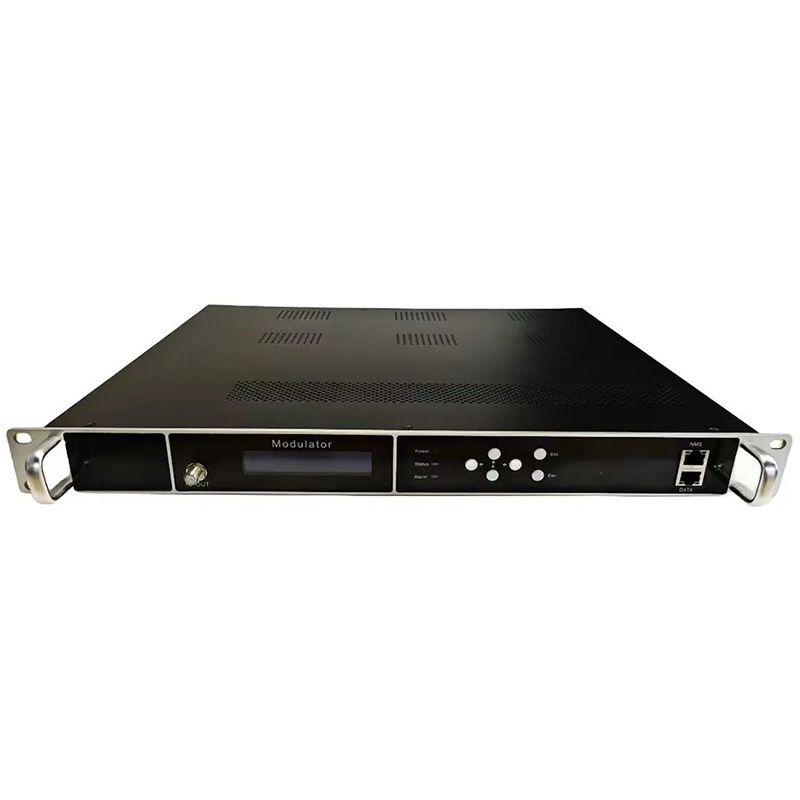

1.RF Out
2.LCD Display
3.Buttons and Indicator lights
4.NMS、DATA Input/ output
5.Tuner input
6.Power
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Tuner to modulator
-
Application:
-
DTV front-end system IPTV System
-
Input:
-
4-24tuner(DVB-C,DVB-S/S2,DVB-T/T2,DTMBT,ISDBT,ATSC optional)
-
Output:
-
8-carrier modulation (ATSC, ISDBT, DTMBT, DVB-C/-T) outputs
-
Protocol:
-
UDP/RTP protocol
-
Support:
-
multiplexing
-
Management:
-
Web NMS
-
Size:
-
482mm*410mm*44mm
-
Power:
-
100-240VAC
-
Material:
-
Metal
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
TUOYING
-
Model Number:
-
TX2408C-9E
-
Product name:
-
Tuner to modulator
-
Application:
-
DTV front-end system IPTV System
-
Input:
-
4-24tuner(DVB-C,DVB-S/S2,DVB-T/T2,DTMBT,ISDBT,ATSC optional)
-
Output:
-
8-carrier modulation (ATSC, ISDBT, DTMBT, DVB-C/-T) outputs
-
Protocol:
-
UDP/RTP protocol
-
Support:
-
multiplexing
-
Management:
-
Web NMS
-
Size:
-
482mm*410mm*44mm
-
Power:
-
100-240VAC
-
Material:
-
Metal
Product Description
The TX2408C-9E series is the latest cost-effective Tuner to modulator. It supports 4-24 tuner inputs(support different types of tuner ( DVB-S2、DVB-C、DVB-T, ATSC、DTMBT、ISDBT, etc. ) ), 1 channel Gigabit IP input / output; 8 channel(ATSC、ISDBT、DTMBT、DVB-C/-T) output,1 MPTS output.With high integration, great performance and low cost, Integrating a complete front-end system functions, this device is highly welcomed in small digital TV transmission systems such as hotels, clubs, hospitals,etc.
Main Features
* 4-24 channels Tuner input(support DVB-S2 ISDBT DTMBT DVB-C etc)，The number of channels you can choose is a multiple of 4
* 1 Gigabit IP input/output, 128 SPTS input and 1 MPTS output, UDP/RTP protocol (multicast)
* All standard modulation (ATSC、ISDBT、DTMBT、DVB-C/-T) output optional.
* Web network management
* Support online software upgrading
Specifications
* 4-24 channels Tuner input(support DVB-S2 ISDBT DTMBT DVB-C etc)，The number of channels you can choose is a multiple of 4
* 1 Gigabit IP input/output, 128 SPTS input and 1 MPTS output, UDP/RTP protocol (multicast)
* All standard modulation (ATSC、ISDBT、DTMBT、DVB-C/-T) output optional.
* Web network management
* Support online software upgrading
Specifications
|
Input
|
(4/8/12/16/20/24 support DVB-S2 DVB-T/T2 ISDBT DTMBT DVB-C etc)
|
|
|
|
|||
|
|
1 Gigabit IP input/output，128 SPTS input
|
|
|
|
|||
|
Output
|
RF output 8 frequencies（DVB-C/DVB-T/ATSC/ISDBT/DMBT）
|
|
|
|
|||
|
|
1 MPTS IP output
|
|
|
|
|||
|
|
DTMBT
|
Standard
|
DTMB GB20600-2006
|
|
|||
|
|
|
Constellation
|
4QAM、16QAM、32QAM、64QAM
|
|
|||
|
|
|
MER
|
≥37dB
|
|
|||
|
|
|
RF frequency
|
96~864MHz，1kHz step
|
|
|||
|
|
|
RF output level
|
-30dBm~0dBm，0.1dB step
|
|
|||
|
|
DVB-T
|
Standard
|
EN300744
|
|
|||
|
|
|
FFT
|
2K
|
|
|||
|
|
|
Bandwidth
|
6M, 7M, 8M
|
|
|||
|
|
|
Constellation
|
DQPSK, QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
|
|||
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥37dB
|
|
|||
|
|
|
RF frequency
|
96~864MHz, 1KHz step
|
|
|||
|
|
|
RF output level
|
-30~0dBm, 0.1db step
|
|
|||
|
|
DVB-C
|
Standard
|
EN300 429/ITU-T J.83A/B/C
|
|
|||
|
|
|
MER
|
≥37dB
|
|
|||
|
|
|
RF frequency
|
96~864MHz, 1KHz step
|
|
|||
|
|
|
RF output level
|
-30~0dBm , 0.1dBm step
|
|
|||
|
|
|
SR
|
5.0Msps~7.0Msps, 1ksps step
|
|
|||
|
|
|
Constellation
|
16/32/64/128/256QAM
|
|
|||
|
|
ATSC
|
Standard
|
ATSC A/53
|
|
|||
|
|
|
MER
|
≥37dB
|
|
|||
|
|
|
RF frequency
|
96~864MHz, 1KHz step
|
|
|||
|
|
|
Constellation
|
8VSB
|
|
|||
|
|
ISDBT
|
Standard
|
ARIB STD-B31
|
|
|||
|
|
|
FFT
|
2K
|
|
|||
|
|
|
Constellation
|
DQPSK, QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
Hierarchical mode
|
A
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
System
|
Web/NMS
|
|
|
|
|||
|
|
中文/English
|
|
|
|
|||
|
Miscellaneous
|
Dimensions
|
482mm×410mm×44mm
|
|
|
|||
|
|
Weight
|
4-8kg（4-24 channel）
|
|
|
|||
|
|
Temperature
|
0~45℃(Operation)；-20~80℃(Storage)
|
|
|
|||
|
|
Voltage range
|
AC100~240V，50/60Hz
|
|
|
|||
|
|
Power consumption
|
<90W
|
|
|
|||
