Qingdao crowns machinery co.,ltd
was located in Huangdao District, the west coast of Qingdao city, Shandong province, China. We
are specialized in rubber and plastic machinery designing,manufacturing and maintenance work.we have been specializing in rubber and plastic machinery and production line for more than 30 years.
- Product Details
- {{item.text}}
Quick Details
-
Filter Rating:
-
99%
-
Thickness:
-
50-1200um
-
Length:
-
1-6m, Width Range Up to 6000mm
-
Width:
-
20-600mm, Width Range Up to 6000mm
-
type:
-
curved screen
-
Meterial:
-
stainless steel 304, 316,904L
-
Slot size:
-
20 micron to 3000 micron
-
Wire Diameter:
-
0.6-2mm
-
Angle:
-
90°,120°,140°,150°,160° etc.
-
Packing:
-
wood case
Quick Details
-
Weight (KG):
-
15
-
Core Components:
-
wedge wire
-
Place of Origin:
-
Shandong, China
-
Filter Rating:
-
99%
-
Thickness:
-
50-1200um
-
Length:
-
1-6m, Width Range Up to 6000mm
-
Width:
-
20-600mm, Width Range Up to 6000mm
-
type:
-
curved screen
-
Meterial:
-
stainless steel 304, 316,904L
-
Slot size:
-
20 micron to 3000 micron
-
Wire Diameter:
-
0.6-2mm
-
Angle:
-
90°,120°,140°,150°,160° etc.
-
Packing:
-
wood case

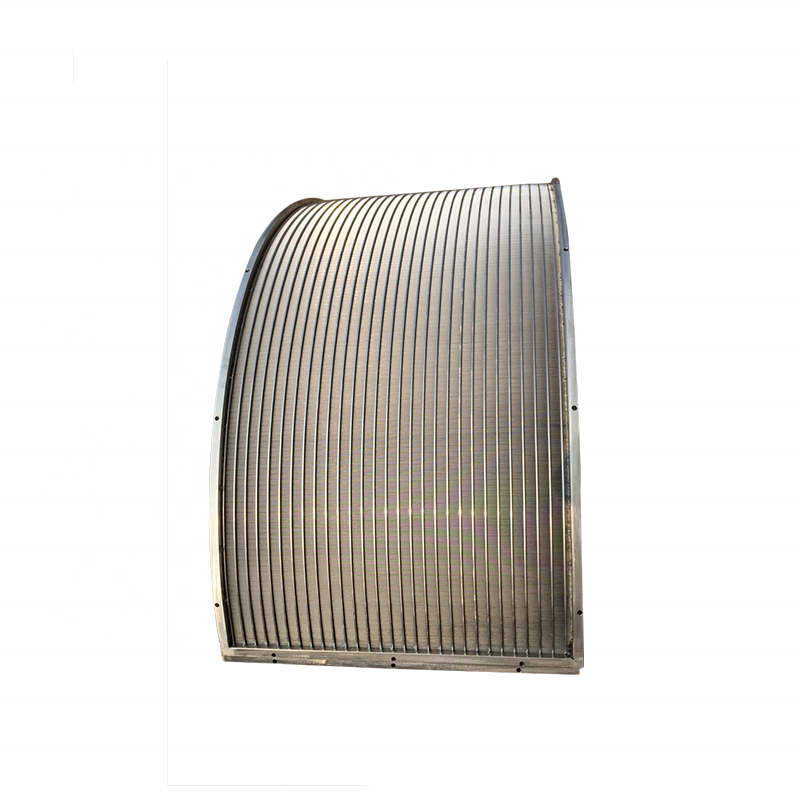

Wedge wire slotted screen sieve bend screen
The sieve bend screen – also called bend screen – comprises a curved screen for filtration. The bend screen provides filtration by guiding the particles along with the curved sieve filter screen. The shape of the sieve bend screen offers a high filtration rate because of the forces exerted by the particles in the flow over the sieve bend. Thus, it is used for different applications that benefit from bend screen geometry.The Sieve Bend is also known as a DSM Screen, as it was developed by the Dutch State Mines.Sieve Bend Screens are useful forsizing and dewatering applications to separate solids from liquids, as well as solid/solid separation for dry feed applications.
|
Material
|
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
|
|
|
|
|
|
|
||||||
|
Length Range
|
Up to 6000mm
|
|
|
|
|
|
|
||||||
|
Width Range
|
Up to 6000mm
|
|
|
|
|
|
|
||||||
|
Slot Range
|
20 micron to 3000 micron (Tolerance:+-5 micron)
|
|
|
|
|
|
|
||||||
|
Wedge Wire
|
0.5x1.5
|
0.75x1.5
|
1x2
|
1.5x2.5
|
2x3
|
2x4
|
3x5
|
||||||
|
Support Rod
|
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5*2.5
2x3 |
2x3
|
3*5
|
3x5
|
3x5
4*6 5*8 |
||||||
|
Angle
|
90°,120°,140°,150°,160° etc.
|
|
|
|
|
|
|
||||||
|
Arc height
|
10mm,15mm,20mm,50mm or depend on you size of screen panel.
|
|
|
|
|
|
|
||||||
|
Frame
|
No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.
|
|
|
|
|
|
|
||||||
|
Note
|
Customized according to requirement
|
|
|
|
|
|
|
||||||
