The main function of the unpowered roller is to push the goods manually to achieve the purpose of conveying the goods. In
addition, there are similar mechanized automatic equipment including case sealing machine, unpacking machine, wrapping machine,
winding machine or palletizing machine.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Srollmart
-
Product name:
-
Gravity Conveyor Roller
-
Material:
-
Carbon Steel,201SUS,304SUS,PVC
-
Surface Treatment:
-
Zinc Plating; Rubberized; SUS
-
Roller Diameter:
-
38mm,50mm,60mm,76mm,80mm
-
Shaft Diameter:
-
12mm,15mm,20mm,25mm
-
OEM:
-
Accept OEM
-
Length:
-
220mm-1500mm Customized
-
Speed:
-
1-40m/s
-
Load capacity:
-
30-300KG/PC
-
Packing:
-
Wooden Box
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
3
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Srollmart
-
Product name:
-
Gravity Conveyor Roller
-
Material:
-
Carbon Steel,201SUS,304SUS,PVC
-
Surface Treatment:
-
Zinc Plating; Rubberized; SUS
-
Roller Diameter:
-
38mm,50mm,60mm,76mm,80mm
-
Shaft Diameter:
-
12mm,15mm,20mm,25mm
-
OEM:
-
Accept OEM
-
Length:
-
220mm-1500mm Customized
-
Speed:
-
1-40m/s
-
Load capacity:
-
30-300KG/PC
-
Packing:
-
Wooden Box
Well-made High Precision Stainless Steel Gravity Conveyor Roller For Flexible Expandable Gravity Roller Line
Product Introduction
Products Description

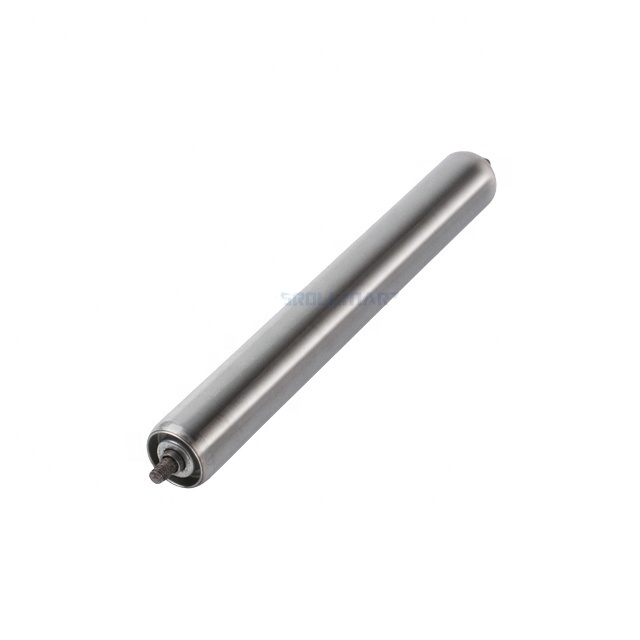

Gravity Conveyor Roller/ Unpowered Conveyor Roller
Specification
|
Roller Length （L）
|
Roller Diameter Φ （D）
|
Shaft Diameter Φ （D）
|
Roller Thickness （T）
|
Bearing
|
|||
|
150-1500 mm
|
25 mm
|
8 mm
|
0.8 mm
|
Mechanical Bearing/ Stamped Bearing
|
|||
|
150-1500 mm
|
38 mm
|
12 mm
|
1.2 mm
|
|
|||
|
150-1500 mm
|
50 mm
|
12/15 mm
|
1.5 mm
|
|
|||
|
150-1500 mm
|
60 mm
|
12/15/20 mm
|
2.0 mm
|
|
|||
|
150-1500 mm
|
76 mm
|
15/20 mm
|
2.5 mm
|
|
|||
|
150-1500 mm
|
89 mm
|
20/25 mm
|
3.0 mm/ 4.0 mm
|
|
|||
|
Tube Material
|
Carbon Steel/ Stainless Steel
|
|
|
|
|||
|
Surface Treatment
|
Hot Dip Galvanized /Ordinary Galvanized/ Chrome /Nickel Plated /Encapsulation /PVC Encapsulation
|
|
|
|
|||
|
Load Bearing
|
30-300KG/PC
|
|
|
|
|||
Performance features:
1.No power roller line features: flexible, stable rotation, no noise, large load capacity. 2.bearing grade: special precision
bearing is installed in carbon steel bearing seat, and precision bearing is installed in nylon dust cover.
bearing is installed in carbon steel bearing seat, and precision bearing is installed in nylon dust cover.
3.structural features:
it is composed of bearing seat, bearing and outer tube press fitting.
it is composed of bearing seat, bearing and outer tube press fitting.
4. rolling shaft center: iron
5. Barrel surface treatment:
galvanized
galvanized
6. Application: gravity roller conveyor and kinetic energy transmission system in light industry, machinery,
electronics, food, furniture, metallurgy and other industries. 7.Applicable place: product transportation in factories, warehouses and logistics centers
electronics, food, furniture, metallurgy and other industries. 7.Applicable place: product transportation in factories, warehouses and logistics centers
8. Axis processing mode: tapping inner teeth and tapping outer teeth
Application
Drive conveyor roller as the power of belt conveyor and lifting equipment:
1. It can replace the motor reducer type external driving device which is widely used at present,
and be used to form the belt conveyor.
2. The structure is simple and compact, and the occupied space is small.
3. Good sealing, suitable for working place with high dust concentration, wet and muddy.
4. Less energy consumption, and easy to achieve centralized control.
5. It can meet the requirements of various backstop, braking, rubber coating, etc.
2. The structure is simple and compact, and the occupied space is small.
3. Good sealing, suitable for working place with high dust concentration, wet and muddy.
4. Less energy consumption, and easy to achieve centralized control.
5. It can meet the requirements of various backstop, braking, rubber coating, etc.
