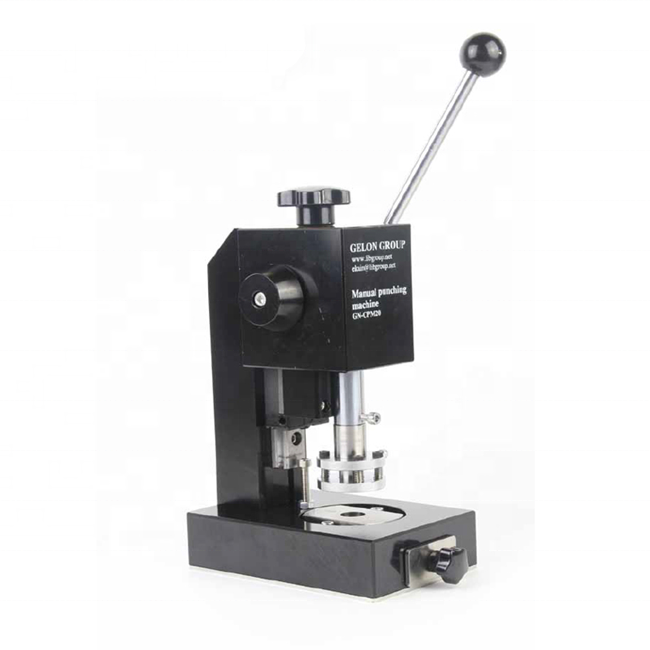

Lithium Ion Battery Making Machine R&D Coin Cell Punching Machine For Battery Equipment

Lithium Ion Battery Making Machine R&D Coin Cell Punching Machine For Battery Equipment

Product Description

coin cell punching machine Specifications

1. Coin Cell Model: All kinds of AG,CR,LIR coin cell,2032,2025,2016 and etc, according to request
2. Mold material: high quality die block steel, heat treatment to HRC60 hardness;
3. Mold precision: ±0.01mm
4. Size:L*W*H=166mm*196mm*233mm
5. Weight:15kg

The punch die match to die: first to mount punch die, make the flat of upper punch aim to screw holes . Shaking the rocker to lower the upper punch to the lower die plate, to ensure the upper punch face and the spindle closely after fastening screw . Then match the die, hand shake rocker to lower upper punch, and gently into the lower die, to move the upper punch in the lower die gently, and balanced the both screw locking slowly until fastening screws. Test, gently shake rocker to move the upper punch into the lower die without questions is the right way, if not, please match the die again. Finally put on elastic unloading (during the match die process, please do not punch hard, in order to avoid edge damage)

Put the separator on the die plate, shake the rocker to move the upper punch to the lower die, the separator will be done, pick up the material box is ok.

Cutting die match : first to fitted to cutter, make the upper cutter flat aim to the screw holes, shake the rocker to low the upper cutter to the flat of the lower shoe, ensure the end face of the upper cutter and the spindle closely after fastening screw, and then fit the lower shoe and fastening screw. Shaking the rocker to cut down the separator, if there is no or small block mark in the lower shoe is the best state. If

the upper cutter lower blade is not enough, there need to adjust the

positioning screw

Maintenance and precautions

1.after use, wipe with a clean rag soaked alcohol molds and various parts of the body. If not use in the next day,

2.regular cleaning rails and other parts to keep clean, and lubricated to keep moving smoothly.

3.regularlycheckallparts ofthepunchingmachinescrew,nuts,pinsand other fasteners checked, to prevent loosening and eliminate punching machine quality accident and personal injury.

Packing Description

Our Services

We could supply one stop solution ( turn key project) for you.

1. Full set of lithium battery materials ,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2. Full set of lithium battery equipments ,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology .

we can design the laboratory and production line,according to customer's request.
