Automatic Paper bag making machine with 2colors printing

Item 1

Adjustable Roll to Square Bottom Paper bag making machine

Application : This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC (inovance) system, equipped with in-touch screenMCGS )( and servo motor for bag length control, this machine can produce different size paper bag

TECHNICAL PARAMETER

MODEL ZX-460D

Width of Paper roll ............................................................. 600-1300 mm

Length of Bag ..................................................................... 225 - 47 0mm

Width of Bag ....................................................................... 220 - 45 0mm

Width of Bag Bottom .......................................................... 80 -1 8 0 mm

Paper weight ......................................................................... 80 -1 6 0g/m2

Max. Diameter of Paper Roll ............................................... 1 5 00 mm

Internal Diameter of Roll Core .............................................. 76 mm

Max.Speed ............................................................................150 pcs/min

Total Power ........................................................................... 1 5 Kw

Weight of Machine ...............................................................Approx 90 00 kg

Overall Dimension................................. ............................... 8600*2500*1800mm

Bottom

Tube Length

Item 2

Performance and Features :

1. Adjustable roll to square bottom bag making machine

2. Introduce In-touch screen human-machine interface, easy for correction and fine adjustment. Alarm and working status can be displayed in screen on-line, easy for operation and maintenance.

3. Equipped with Mitsubishi PLC for centralized control system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.

4. Human oriented security protection, whole housing design, ensure the safety of operator.

5. physiosis roller hydraulic material loading system with chuck, hydraulic up/down system

6. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter, minimize the adjustment time for web alignment.

7. High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 90~180pics/min, even higher. Increased the unit production capacity and higher profit.

8. Original SCHNEIDER electric system, ensure better stability and reliability; perfect after sale service, trouble free for customer.

*Speed will be variable due to different glue quality and operator’s skill.

* Bag Dimension, Adhesive Quality, Operator Knowledge, % Moisture, Type and Basis weight of Paper Can affect Machine Speeds.

Main Configuration

1.Unwind Section

Structure, Features:

( 1 ) Separated single unwind rollstand with hydraulic lift device.

( 2 ) physiosis roller for paper roll load ing , the load arms are driven by two hydraulic cylinders separately, can be adjusted arbitrarily.

( 3 ) magnetic powder brake and constant auto tension control for unwinding tension control.

( 4 ) EPC ( electronic program control ) web guide system for material alignment.

Parameter, Specification:

( 1 ) Unwind Rollstand ................................................. One (1) Supplied

(2) hydraulic lift device for material load ..................... 1 Set

Hydraulic Cylinder 100X500 .........................................................1 PC

Motor for hydraulic pump ( 1.5 kw ) ............................................ 1 Uni t

(3) Roll load Arm Switching Device ..................................................... 1 Set

( 4 ) physiosis roller chuck Device .................................................... 1 Set

(5) Magnetic Powder Brake  (100N.m) ................................................. 1 Unit

(6) Tension transducer ....................................................................... 1PC

(7) EPC web guider system for material edge alignment ........................1 set

Sensor, Motor for drive, Hydraulic Cylinder, Hydraulic Pump etc.

2.Material In-feed Section

Structure, Features:

( 1 ) Separated Material In-feed section

( 2 ) Adjustable side seam glue coating, automatic disengage when machine stop

Parameter, Specification :

(1)  Adjustable Side Seam Glue Coating ( Seam Paste Stand-One (1) Ply Bag ) : 1 Set

Parts for Lateral Adjustment of Seam Glue Applicator

Photo-eye for Controlling Preprint Registration

3. Tube Forming Section

Structure, Features:

(1) Whole unit tube forming frame

(2) Former Mould Support Design , Adjustable Former Support for Precise Former Alignment

( 3 ) Multi Side Tuck Discs Design, Manual Adjustment. Rotary Side Gusseting Tuck Disc—Quick Release Paper Threading & Save Production Setting

( 4 ) Adjustable Pressing Wheel

Parameter, Specification: :

(1) Adjustable Former Support Device .................................... 1 Set

(2) Side Tuck Device ........................................................... 1Set

Side Tuck Discs ............................................................. Each 6 for left and right

Manual Adjustment Device ................................................ 2Set

( 3 ) Pressing Wheel ................................................................... 5 Set

4. Bottom Forming Section

Structure, Features:

( 1 ) Material feeding by INDEPENDENT SERVO Draw roll Drive System , Photo Cell System for Running Preprinted Materials (No Change gears)

( 2 ) Rotary Serrated Cutoff with Elliptical Gears

( 3 )Adjustable Bottom Score Device, can adjust the bag bottom size ,

( 4 )Bottom Opening Cylinder with Split Cam for Full Range Stretch Adjustment

( 5 ) Multi Layer Bottom Forming Drum, Center Grippers, Second Tuck Clamps, and Drum Fingers are adjustable for ease of changeover.

( 6 ) Bottom Glue Applicator with Pneumatic Cylinder for engagement

( 7 )Bottom Impressing Roller with up/down Feature for Easy Operation

Parameter, Specification :

(1) Tube Length Repeat Tolerance: Nominal tube Length +/- 0.5 mm

( 2 ) Servo Motor: ( inovance ) ..................................................  2 Unit

( 3 ) Serrated Cutoff Knife ................................................................ 1 Set

( 4 ) Bottom Score Device ................................................................. 1 Set

( 5 ) Bottom Opening Device ............................................................ 1 Set

6 ) Bottom Form Drum ................................................................... 1 Set

( 7 ) Bottom Glue Applicator ............................................................ 1 Set

( 8 ) Bottom Folder .......................................................................... 1 Set

5.Bag Delivery Section (standard from the Seller)

Structure, Features:

(1) Side Table Delivery with Belt for easy operation

( 2 ) Rubber impress roller for Bag Shape Fixation

Parameter, Specification:

( 1 )Delivery Table ................................................................................. 1Set

( 2 )Conveying Belt .............................................................................. 2 PC

6.Control Section

Structure, Features:

(1) PLC centralized control for whole machine.

( 2 )Human-machine Interface: Touch Screen Operator Control. Ease of Machine Setup for Repeat Changes & Monitoring

Parameter,Specification: :

(1)PLC (inovance)................................................... 1Unit

( 2 )In-touch Screen  10″ ( MCGS ) ......................... 1Unit

7.Others

(1) Main Components introduce NSK ball bearing from Japan

( 2 ) Pneumatic Components: Airtag

( 3 )Low Voltage Components: SCHNEIDER.

(4) Side glue system using home make Correction using sheng zhen

(5) SICK photocell for correction, tracking the printed material accurately

(6) Servo Motor inovance  ,and Electric equipments SCHNEIDER.

Remark:

Due to the availability of imported components and special requirement for customization machine, with the precondition no influence to the performance, the machine specification maybe changed without notice in advance.

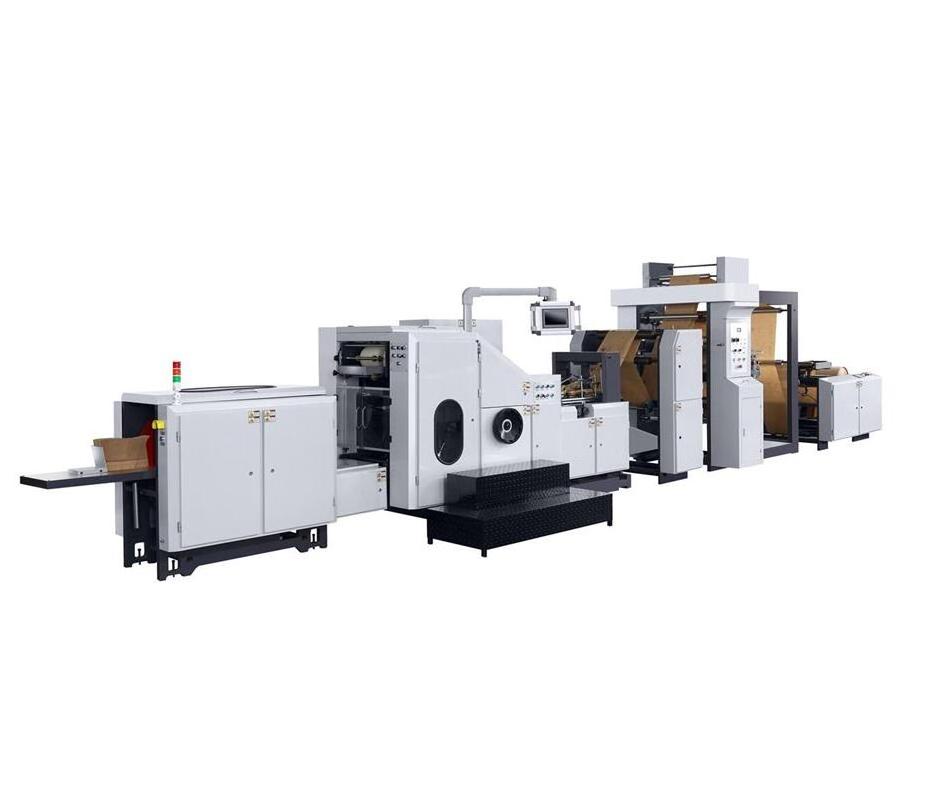

Picture of Machine

Machine model	ZX - 2 1 3 00
Maximum width of printing materail(mm)	1 3 00mm
Maximum width of printing (mm)	120 0mm
Length rang of printing	228-1 3 00mm
Max.diameter of roller material	12 00mm
Printing speed	5- 8 0m/min
Thickness of printing plate (including two faces of glue)	It is decided by customer himself
Weight of machine	3500KG
Overall dimension (mm)	4300x2000x2280mm

SAMPLES SHOW :
