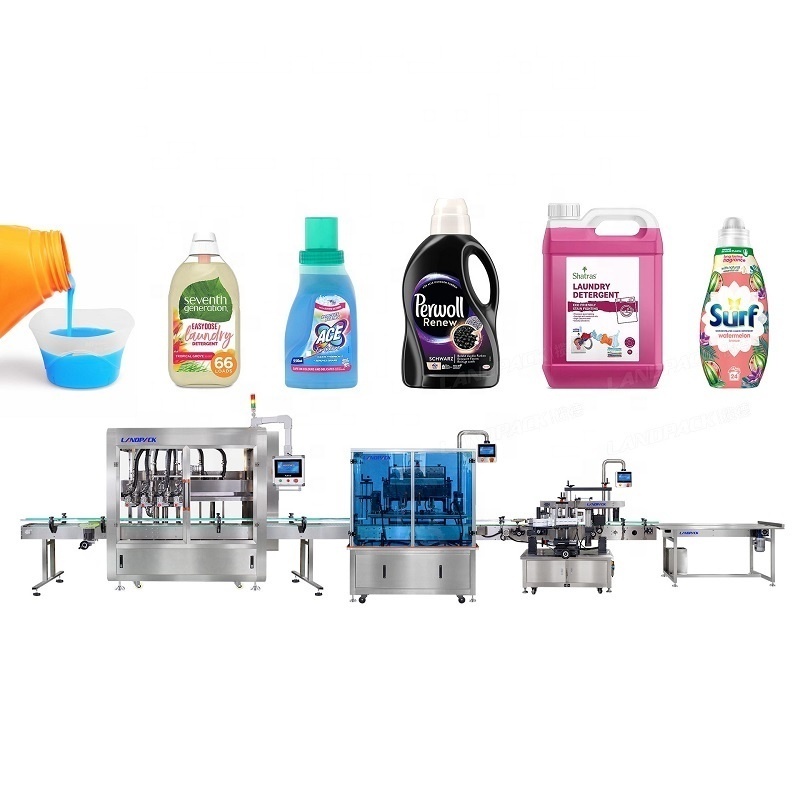

4 Head For 5L Detergent Liquid Tracking Bottling Filling Capping Labeling Line Machine

4 Head For 5L Detergent Liquid Tracking Bottling Filling Capping Labeling Line Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $10200

≥2 Sets

US $9374

≥3 Sets

US $8548

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: ±1%

Voltage:: 220V 50hz

Place of Origin:: Guangdong, China

Brand Name:: Landpack

Dimension(L*W*H):: 4000*1320*2090 mm

Weight:: 600 KG

Packing Film:: OPP/CPP,OPP/PE,BOPP/VMPET/PE etc

Packing speed:: 15-50 bottle/min

After Warranty Service:: 7/24 hours After Service

Suitable for:: Fluid

Processing Types:: Automatic Filling

Filling volume:: 50ml-1000ml can be customized

Control system:: PLC

Type:: Multi-Function Packaging Machine, Filling Machine

Power:: 2 KW

Quick Details

Machinery Capacity:: Other, 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH, 15-50 PCS/min

Packaging Material:: Plastic, Metal, Glass

Filling Material:: Beer, Other, Milk, Water, Oil, Juice

Filling Accuracy:: ±1%

Voltage:: 220V 50hz

Place of Origin:: Guangdong, China

Brand Name:: Landpack

Dimension(L*W*H):: 4000*1320*2090 mm

Weight:: 600 KG

Packing Film:: OPP/CPP,OPP/PE,BOPP/VMPET/PE etc

Packing speed:: 15-50 bottle/min

After Warranty Service:: 7/24 hours After Service

Suitable for:: Fluid

Processing Types:: Automatic Filling

Filling volume:: 50ml-1000ml can be customized

Control system:: PLC

Type:: Multi-Function Packaging Machine, Filling Machine

Power:: 2 KW

4 Head For 5L Detergent Liquid Tracking Bottling Filling Capping Labeling Line Machine

For more details, please click here to send us an enquiry.

Recommend Products

Features

4 Head Tracking Filling Machine Line with Capping Labeling for 5L Detergent Liquid 1. 4 Head Tracking Filling Machine High Speed 50-60bottles per min. 2. It adopts three-speed filling or two-speed filling , and the three-stage speed and filling volume can be adjusted to prevent the liquid from splashing out after full; 3. Intelligent control, automatic photoelectric tracking, no bottle filling; 4. Double Head Capping Machine. 5. Double Side Lableing Machine suitable for square and round bottle. 6. Different Bottle height easy to adjust on the touch screen. 7. Saved for 10 group recipe. Advantages 1. High Speed Filling for Max 5liters Filling range. 2. Filling system, lifting system and tracking system are all controlled by servo motor, with high precision; guardrail is controlled by stepper motor. 3. Filling with Bottom to Up Design. 4. Double Head Capping Machine 5. Double Side Lableing Machine suitable for square and round bottle. Work Flow: 1. Diaphragm Pump Feeding for detergent liquid . 2. Gear Pump 4 Head Tracking Filling Machine. 3. Gear Pump Filling Max 5 liters. 4. Filling with Bottom to Up Design. 5. Cap Feed By manual. 6. Double Head Capping Machine. 7. U shape Conveyor for limited Space. 8. Double Side Labeling Machine. 9. Finished Bottle Collector.

Product Paramenters

Product Name	Automatic Liquid Filling Production Line
Model	LD-ALF01
Filling Range	50-1000ml(Customizable)
Filling Speed	15-50 bottle/min
Measurement accuracy	±1%
Power	2 KW
Working power supply	220V、50Hz
Working pressure	0.6-0.8MPa
Weight	600kg
Size	L4000W1320H2090(mm)

Application

The packing line is mainly suitable for packing all kinds of liquid, fluid and paste material , such as alcohol, oral liquid, lubricant, lube oil, very thick liquid, perfume, essential oil, paste, butter, mayonnaise, high viscosity liquid, thick cream, o yster sauce paste, s alad cream, ketchup salsa, p eanut butter, pomade grease, tomato paste, paint, pesticide, syrup, ginger garlic paste, petroleum jelly, a lioli bbq sauce, chili pepper sauce, soy sauce, mushroom sauce, tomato sauce, ketchup, mayonnaise, jam, paste cosmetic, p alm cooking oil, c osmetic cream, juice, o live c ooking edible food oil, hot sauce, daily necessities, mobility liquid, laundry detergent, automobile oil, glass water, d isposable hand sanitizing gel , shower gel, shampoo, etc;
