Quick Details
-
Product Weight（kg）:
-
0.13
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lebeisenf
-
Connection Mode:
-
Common Anode
-
Product name:
-
Tuya smart WiFi controller
-
Application:
-
Control Lights
-
Function:
-
Smart Home Control
-
Voltage:
-
5-24V DC
-
Keyword:
-
Smart Dimmer Module
-
Features:
-
Dual RGB output ports
-
Certificates:
-
CE ROHS
-
Output Current:
-
6A Max
-
Output signal:
-
Constant Voltage PWM Signal
-
Material:
-
Plastic
Quick Details
-
Warranty(Year):
-
1-Year
-
Type:
-
Remote Control
-
Max. Load Power:
-
144W
-
Product Weight（kg）:
-
0.13
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lebeisenf
-
Connection Mode:
-
Common Anode
-
Product name:
-
Tuya smart WiFi controller
-
Application:
-
Control Lights
-
Function:
-
Smart Home Control
-
Voltage:
-
5-24V DC
-
Keyword:
-
Smart Dimmer Module
-
Features:
-
Dual RGB output ports
-
Certificates:
-
CE ROHS
-
Output Current:
-
6A Max
-
Output signal:
-
Constant Voltage PWM Signal
-
Material:
-
Plastic

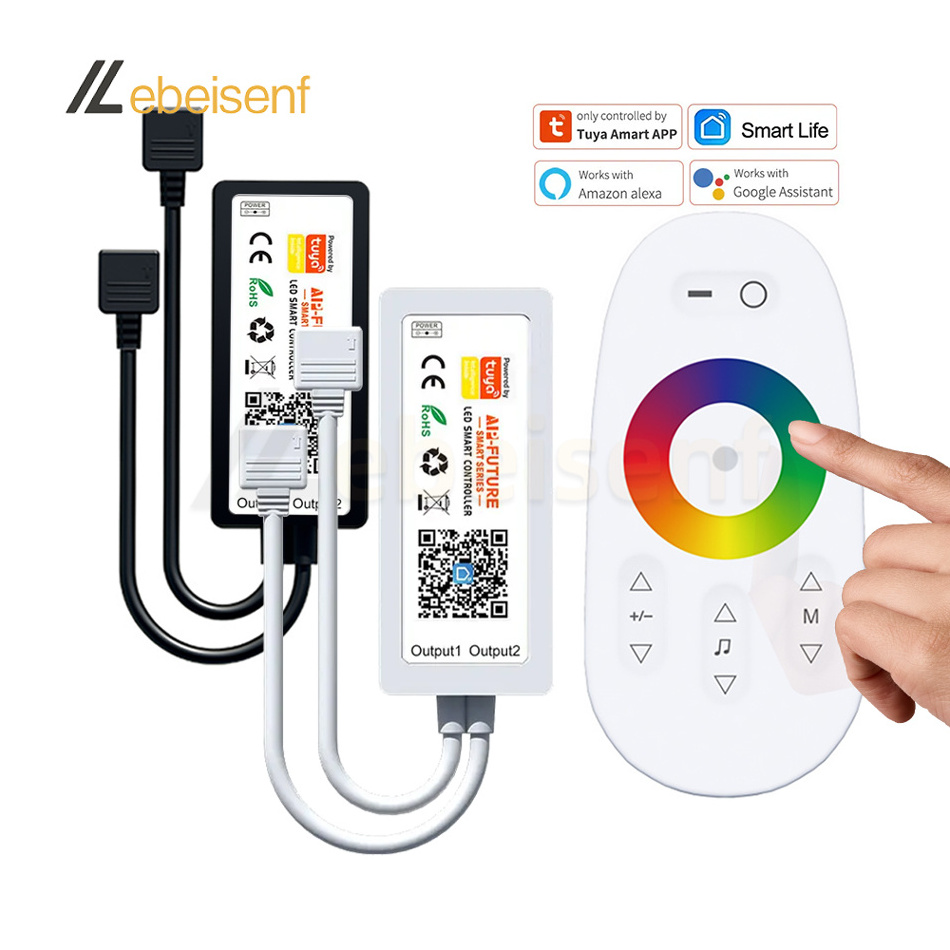

DC 5-24V 6A Tuya Smart RGB Controller add RF 2.4Ghz Remote control
Product features:
[Smart Speaker Control]: Supports common mainstream smart speakers on the market. Custom naming
[Mobile App Control]: Connect through WIFI; Support 4G/55 remote control; Group groups; Control Graffiti Dual Mode Blue tooth
Assisted Search
[Basic functions]: 1. Color debugging; 2. Brightness adjustment; 3. Topic selection; 4. Mode selection
------------------------------------------
Product Specifications:
●. Product Name: Tuya Smart RGB Controller
●. Voltage: 5-24V DC (DC5.5 * 2.1mm)
●. Output channel: RGB (3 channels)
●. Output current: Max ≤ 3A/CH; Total Max. ≤ 6A
●. Output power: 5V ≤ 30W; 12V ≤ 72W; 24V ≤ 144W
●. Output signal: constant voltage PWM dimming signal
●. Connection method: common anode
●. Control method: WiFi APP/voice speaker/RF 2.4G remote control
●. Controller size: L78 * W35.4 * H14 (mm)
●. Controller wire: length 15cm
●. Remote control size: L110 * W55 * H18 (mm)
●. Remote control battery: 2 * AAA battery (not included)
-------------------------------------------------
Lamp strip recommendation:
Please use DC 5V/12V/24V constant voltage 4-wire 3-channel LED lights
[Smart Speaker Control]: Supports common mainstream smart speakers on the market. Custom naming
[Mobile App Control]: Connect through WIFI; Support 4G/55 remote control; Group groups; Control Graffiti Dual Mode Blue tooth
Assisted Search
[Basic functions]: 1. Color debugging; 2. Brightness adjustment; 3. Topic selection; 4. Mode selection
------------------------------------------
Product Specifications:
●. Product Name: Tuya Smart RGB Controller
●. Voltage: 5-24V DC (DC5.5 * 2.1mm)
●. Output channel: RGB (3 channels)
●. Output current: Max ≤ 3A/CH; Total Max. ≤ 6A
●. Output power: 5V ≤ 30W; 12V ≤ 72W; 24V ≤ 144W
●. Output signal: constant voltage PWM dimming signal
●. Connection method: common anode
●. Control method: WiFi APP/voice speaker/RF 2.4G remote control
●. Controller size: L78 * W35.4 * H14 (mm)
●. Controller wire: length 15cm
●. Remote control size: L110 * W55 * H18 (mm)
●. Remote control battery: 2 * AAA battery (not included)
-------------------------------------------------
Lamp strip recommendation:
Please use DC 5V/12V/24V constant voltage 4-wire 3-channel LED lights
|
Package List:
|
|
1 Tuya RGB controller
|
|
1 RF remote control
|
|
1 User manual
|
Product Description
About the power supply:
Please choose the power supply according to the voltage of the LED lights
(e.g.: DC 12V led connected to DC 5-24V controller (adaptive voltage) - need DC 12V power supply)
