Quick Details
-
Brand Name:
-
Haolong Micro flowmeter
-
Model Number:
-
OFZAT04 Oval Gear Flowmeter
-
Product Name:
-
oil Oval Gear Flowmeter
-
Application:
-
Water, oil tap water standardd
-
Connection method:
-
Thread
-
Nominal diameter:
-
G1/4 G3/8 G1/2
-
Maximum flow:
-
0.5~20 L/min within 1%
-
Maximum working pressure:
-
≤ 1.75MPa(Maximum withstand voltage 3Mpa)
-
Medium temperature:
-
0~+80℃ Micro turbine flowmeter
-
Operating voltage range:
-
DC 5~18 V
-
Wiring:
-
Red: positive, black: negative, yellow: pulse signal
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Haolong Micro flowmeter
-
Model Number:
-
OFZAT04 Oval Gear Flowmeter
-
Product Name:
-
oil Oval Gear Flowmeter
-
Application:
-
Water, oil tap water standardd
-
Connection method:
-
Thread
-
Nominal diameter:
-
G1/4 G3/8 G1/2
-
Maximum flow:
-
0.5~20 L/min within 1%
-
Maximum working pressure:
-
≤ 1.75MPa(Maximum withstand voltage 3Mpa)
-
Medium temperature:
-
0~+80℃ Micro turbine flowmeter
-
Operating voltage range:
-
DC 5~18 V
-
Wiring:
-
Red: positive, black: negative, yellow: pulse signal

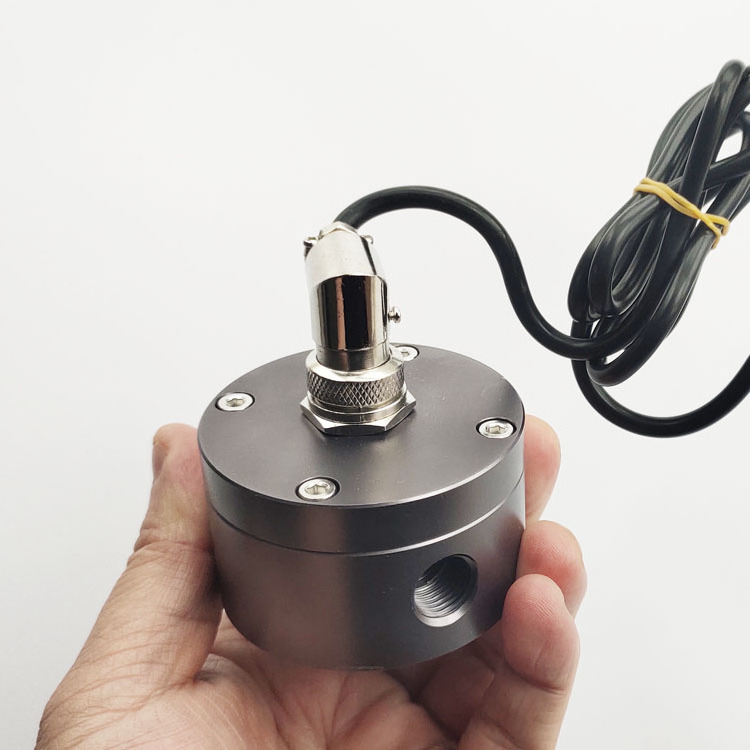

OFZAT04 aluminum alloy material oil oval gear flowmeter sensor
Product
Features
1. This product is light and handy in appearance, small in size and easy to install.
2.The impeller is inlaid with stainless steel beads, which is always wear-resistant.
3.The sealing ring adopts the structure of upper and lower force to never leak.
4. The Hall element is imported from Germany and encapsulated with potting glue.
Prevent water from entering and never age.
Product introduction
The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor. It is installed at the water inlet end of the water heater to detect the water flow rate. When the water passes through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The device judges the size of the water flow and regulates it.
Product Precautions
1. Severe impact and chemical erosion are strictly prohibited.
2. Throwing or collision is strictly prohibited.
3. Vertical installation, the inclination does not exceed 5 degrees.
4. The temperature of the medium should not exceed 120
℃
.
Product parameters
|
Project |
Parameter |
|
|
Minimum rated working voltage |
DC4.5 3.5V-20V |
|
|
Maximum working current |
15 mA (DC 5V) |
|
|
Operating voltage range |
DC 5~18 V |
|
|
load capacity |
≤ 10 mA (DC 5V) |
|
|
Operating temperature range |
≤80C |
|
|
Operating humidity range |
35%~90%RH (no frosting state) |
|
|
Allowable pressure |
Water pressure below 1.75Mpa |
|
|
Storage temperature |
-25~+80C |
|
|
Storage humidity |
25%~95%RH |
|
|
Output pulse high level |
>DC 4.5 V (input voltage DC 5 V) |
|
|
Output pulse low level |
<DC 0.5 V (input voltage DC 5 V) |
|
|
Accuracy (flow rate-pulse output) |
G1/4 |
30~300 L/h within 1% (liquid is diesel) |
|
G3/8 |
30~800 L/h within 1% (liquid is diesel) |
|
|
G1/2 |
30~1200 L/h within 1% (liquid is diesel) |
|
|
Output pulse duty cycle |
50± 10% |
|
|
Output rise time |
0.04μS |
|
|
Output fall time |
0. 18μS |
|
|
Application |
Suitable for liquids with low viscosity |
|
|
Flow-pulse characteristics |
G1/4 |
Horizontal test pulse frequency (Hz)=[ 1.5* Q]±1% (horizontal test) (Q is flow rate L/min) |
|
G3/8 |
Horizontal test pulse frequency (Hz)=[2.3* Q]±1% (horizontal test) (Q is flow rate L/min) |
|
|
G1/2 |
Horizontal test pulse frequency (Hz)=[2.8* Q]±1% (horizontal test) (Q is flow rate L/min) |
|
|
Shock proof |
The product is well packaged, and it falls freely in the X, Y, and Z directions from a height of 50cm to the surface of the concrete without exception. Accuracy change within 10% |
|
|
Insulation resistance |
The insulation resistance between the Hall sensor and the copper valve body is more than 100MΩ . (DC 500V) |
|
|
Heat resistance |
Placed in an environment of 80±3C for 48h, return to normal temperature for 1-2h without abnormality, and the parts have no cracks, relaxation, expansion, deformation, etc., and the accuracy changes within 10%. |
|
|
Cold resistance |
Placed in an environment of -20±3C for 48h, return to normal temperature for 1-2h without abnormality, and the parts have no cracks, relaxation, expansion, deformation, etc., and the accuracy changes within 10%. |
|
|
Moisture resistance |
After being placed in an environment of 40±2C and relative humidity of 90%~95%RH for 72h, the insulation resistance is above 1MΩ . |
|
Fl
