Quick Details
-
Production Capacity:
-
400t/m
-
Power:
-
10.5KW, gasoline engine /electrie
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAOHONG
-
Dimension(L*W*H):
-
3-10m
-
Warranty:
-
1 year
-
Product name:
-
Concrete paver machine with vibrators
-
power:
-
gasoline engine /electrie
-
Model:
-
HHGZ-30
-
Working width:
-
3-16m
-
color:
-
red
-
Paving Thickness(mm):
-
300
-
Drive Tube Motor Rating(Kw):
-
7.5
-
Operating Weight(Kg):
-
1600
Quick Details
-
Max. Paving Thickness:
-
220-300mm
-
Weight:
-
450 kg
-
Engine Brand:
-
CHANGCHAI
-
Production Capacity:
-
400t/m
-
Power:
-
10.5KW, gasoline engine /electrie
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAOHONG
-
Dimension(L*W*H):
-
3-10m
-
Warranty:
-
1 year
-
Product name:
-
Concrete paver machine with vibrators
-
power:
-
gasoline engine /electrie
-
Model:
-
HHGZ-30
-
Working width:
-
3-16m
-
color:
-
red
-
Paving Thickness(mm):
-
300
-
Drive Tube Motor Rating(Kw):
-
7.5
-
Operating Weight(Kg):
-
1600

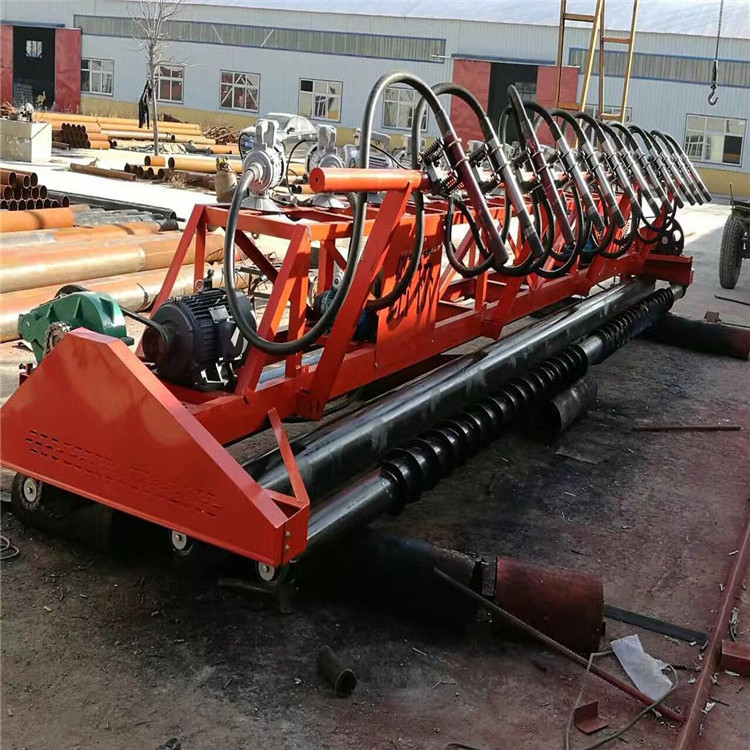

Concrete paver machine with vibrators for road construction
|
SPECIFICATIONS FOR HHGZ-30 CONCRETE VIBRATOR PAVER |
|||
|
Engine |
Engine model |
Electric Motor |
380 V / 50 HZ |
|
Vibrator Motor Power |
Kw |
1.5 |
|
|
Lifting Motor Power |
Kw |
1.5 |
|
|
Traveling Motor Power |
Kw |
3/5.5/7.5 |
|
|
Auger Motor Power |
kw |
4/5.5/7.5 |
|
|
Main performance parameters |
Traveling speed |
m/min |
0-5 |
|
Working width |
m |
3-10 (customized) |
|
|
Diameter of roller |
mm |
159/219/259 |
|
|
Roller Rotation |
rpm |
36 |
|
|
Max Paving thickness |
mm |
300 |
|
|
Vibrators Details |
Quantity |
unit |
6-12 |
|
Diameter |
mm |
50 |
|
|
Length |
m |
2 |
|
|
Distance between two vibrators |
mm |
500 |
|
Jining HaoHong industrial and mining equipment Co., Ltd. is located in high-technology industrial development zone, Jining city, Shandong province, China. Our company is specialized in producing small and medium and special construction machinery used in the area of highway, railway, water conservancy, etc. The products are up to 40 types, many products have applied for national patent. The 40 products are divided into four categories, which are compacting equipments, concrete construction equipments, cutting and breaking equipments and lighting equipments. We will continue spirit of developing "Customer Staff, Innovation, Quality" in the brilliant development in future and work hard for the building the base of investigation and manufacturing of construction machinery.
