- Product Details
- {{item.text}}
Quick Details
-
Applicable Industries:
-
paper bag
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FEIYANG
-
Model Number:
-
FY-190G
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8500*1700*1600mm
-
Weight:
-
6000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Packaging Industry
-
Speed:
-
260pcs/min
-
Bag Width (Max):
-
190mm
-
Bag length(Max):
-
350mm
-
Product Type:
-
Craft Paper Bag
-
Type:
-
Paper Bag Making Machine
-
Name:
-
Roll Feeding Square
-
Product name:
-
Craft Paper Bag
-
Processing Type:
-
Paper Folding
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Applicable Industries:
-
paper bag
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FEIYANG
-
Model Number:
-
FY-190G
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8500*1700*1600mm
-
Weight:
-
6000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Packaging Industry
-
Speed:
-
260pcs/min
-
Bag Width (Max):
-
190mm
-
Bag length(Max):
-
350mm
-
Product Type:
-
Craft Paper Bag
-
Type:
-
Paper Bag Making Machine
-
Name:
-
Roll Feeding Square
-
Product name:
-
Craft Paper Bag
-
Processing Type:
-
Paper Folding

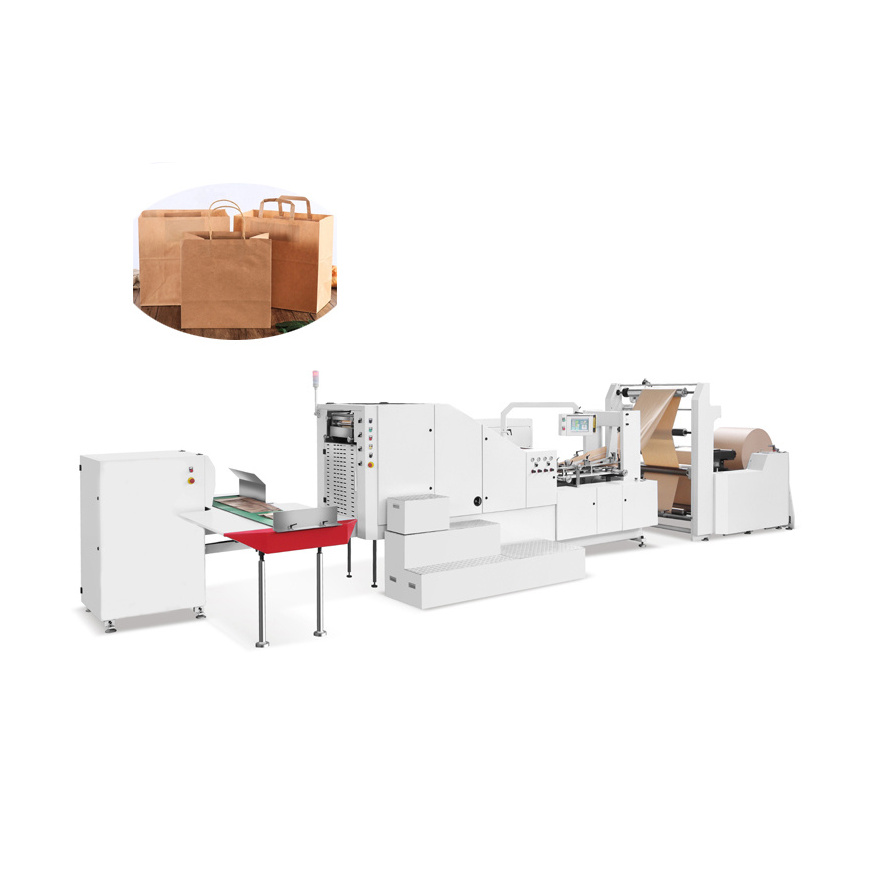

Square bottom Kraft paper bag making machine
Product Description
Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
|
Item No.
|
FY-190G
|
FY-280G
|
FY-330G
|
FY-450G
|
|
Paper Roll Width
|
290-630mm
|
370-890mm
|
620-1050mm
|
710-1300mm
|
|
Max. Paper Roll Diameter
|
1200mm
|
1500mm
|
1300mm
|
1300mm
|
|
Material Core Diameter
|
76mm
|
76mm
|
76mm
|
76mm
|
|
Paper Thickness
|
60-120g/㎡
|
60-140g/㎡
|
60-150g/㎡
|
80-150g/㎡
|
|
Tube Length
|
190-350mm
|
290-530mm
|
270-530mm
|
270-530mm
|
|
Bag Body Width
|
90-190mm
|
120-280mm
|
200-330mm
|
260-450mm
|
|
Bag Bottom Size
|
55-105mm
|
60-150mm
|
60-180mm
|
80-180mm
|
|
Max. Production Speed
|
260bags/min
|
200bags/min
|
180bags/min
|
150bags/min
|
|
Total Power
|
13.5kw
|
18.5kw
|
32kw
|
32kw
|
|
Total Weight
|
6000kg
|
8000kg
|
8500kg
|
10000kg
|
|
Overall Dimension(L×W×H)
|
8500*1700*1600mm
|
9000*3300*1900mm
|
9000*3450*1900mm
|
9000*3500*1
900mm |
