Quick Details
-
Warranty:
-
At Least One Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Donghuan
-
Model Number:
-
JJQ-3
-
Type:
-
Gasoline Powered winch
-
Usage:
-
Construction Hoist
-
Material:
-
Steel
-
Power supply:
-
2.94-6.6KW
-
Weight:
-
94-148KG
-
Package:
-
Wooden Box
-
Capacity:
-
3T,5T,8T
Quick Details
-
Power:
-
710W
-
Application:
-
Power Construction
-
Voltage:
-
24V
-
Warranty:
-
At Least One Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Donghuan
-
Model Number:
-
JJQ-3
-
Type:
-
Gasoline Powered winch
-
Usage:
-
Construction Hoist
-
Material:
-
Steel
-
Power supply:
-
2.94-6.6KW
-
Weight:
-
94-148KG
-
Package:
-
Wooden Box
-
Capacity:
-
3T,5T,8T

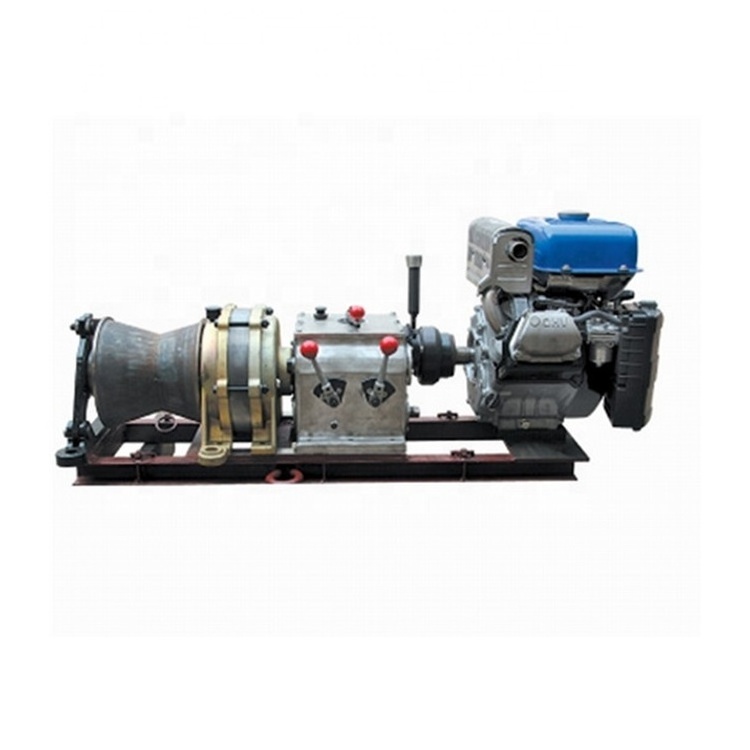

Fast Pilot Wire Gas Powered Winch ,Transmission Line Cable Pulling Engine Powered Winch
Application:
Wire Rope Electric Hoist Winch for Lifting
is used in power transmission and distribution engineering, telephone construction
tower erection, traction cable, line, hoisting tools ,
tower erection , pole setting,stringing wire in electrical power line construction
, the electric winch is driven by a belt,
effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse
gear moment to ensure construction safety.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Characteristic
1. Small Volume & Compact Structure.
2. Light Weight,Easy to Transport.
3. High Efficiency,Save Labor, shart direct connection drive, fast traction speed.
4. Widely Used,pulling,hoisting,lifting and so on.
5. Safe & Reliable,Interlock Brakes System.
6.It is a ideal mechanical equipment traction hoisting in power construction
which is used in a wild field without electricity.
Technical Data
|
Item number |
Model |
Rotation direction |
Gear |
Tractive force
（T）
|
Traction speed
（M/MIN）
|
Power
（KW）
|
Outline size （MM） |
Weight （KG） |
| 09131 |
JJQ-30 6HP Gasoline engine |
corotation |
SlowⅠ |
3.0
|
5 | 4.04 |
900x400x430
|
94 |
|
SlowⅡ |
2.0 | 7 | ||||||
|
FastⅠ |
0.9 | 16 | ||||||
| FastⅡ | 0.6 | 24 | ||||||
|
reversal |
Slow |
No lifting |
4 | |||||
| Fast | 13 | |||||||
| 09131A |
JJC-3 5HP Diesel engine |
corotation |
SlowⅠ |
3.0 |
5 | 2.90 |
1000x450x500 |
115 |
| SlowⅡ | 2.0 | 7 | ||||||
| FastⅠ | 0.9 | 16 | ||||||
| FastⅡ | 0.6 | 24 | ||||||
|
reversal |
Slow |
No lifting |
4 | |||||
| Fast | 13 | |||||||
| 09135 |
JJQ-5B 9HP Gasoline engine |
corotation |
FastⅠ |
0.9 |
24 | 6.6 | 1100x525x600 | 138 |
| FastⅡ | 1.5 | 13 | ||||||
| SlowⅠ | 2.5 | 8 | ||||||
| SlowⅡ | 5.0 | 4 | ||||||
|
reversal |
Slow
|
No lifting |
4 | |||||
| Fast | 18 | |||||||
| 09135A |
JJC-5B 186F Diesel engine |
corotation |
FastⅠ |
0.9 |
24 | 5.7 | 1000x498x600 | 148 |
| FastⅡ | 1.5 | 13 | ||||||
| lowⅠ | 2.5 | 8 | ||||||
| SlowⅡ | 5.0 | 4 | ||||||
|
reversal |
Slow |
No lifting |
4 | |||||
| Slow | 18 |
A: We are manufacturer,factory in Ningbo,Zhejiang,China.
Q: What's your MOQ?
A:Our MOQ is 1 piece,and ideal order quantity for production is 20 foot containers or more.
Q: Can you customize the product in size,design and logo?
A: Yes,we support the size,design and logo of the customized products.
Q: Do you provide samples ?
A: Yes, we could provide samples as your requirement.However your need pay the sample and freight cost.It needs 5-7 days to prepare samples.
Q: What is your terms of payment ?
A: T/T 30% as deposit and pay the balance before delivery.L/C is acceptable,but only IRREVOCABLE 100% at sight.
Q: What is your terms of delivery?
A: EXW,FOB,CIF.NINGBO/SHANGHAI
Q: What is the lead time?
A: 2 weeks after receiving the deposit or L/C.(3-4 weeks in busy season)
Q: Is Certificate or Origin available?
A: Yes,Certificate issued by CIQ and CCPIT are available.
