Quick Details
-
Name:
-
Wireless Crane Remote Control F24-12D
-
Type:
-
Wireless Crane Remote Control F24-12D
-
Material:
-
Glass-Fiber PA
-
Protection level:
-
IP65
-
Frequency range:
-
50-60HZ
-
Transmitter power:
-
<=10dBm
-
Temperature range:
-
-40℃~+85℃
-
Controlling distance:
-
Approx100m(200 meters is customized)
-
Receiver power supply optional:
-
AC 36V ; 220V ; 380V (optional)
Quick Details
-
Use:
-
Universal
-
Place of Origin:
-
Zhejiang, China
-
Certificate:
-
CE, FCC, ISO, EXPLOSION-PROOF
-
Name:
-
Wireless Crane Remote Control F24-12D
-
Type:
-
Wireless Crane Remote Control F24-12D
-
Material:
-
Glass-Fiber PA
-
Protection level:
-
IP65
-
Frequency range:
-
50-60HZ
-
Transmitter power:
-
<=10dBm
-
Temperature range:
-
-40℃~+85℃
-
Controlling distance:
-
Approx100m(200 meters is customized)
-
Receiver power supply optional:
-
AC 36V ; 220V ; 380V (optional)

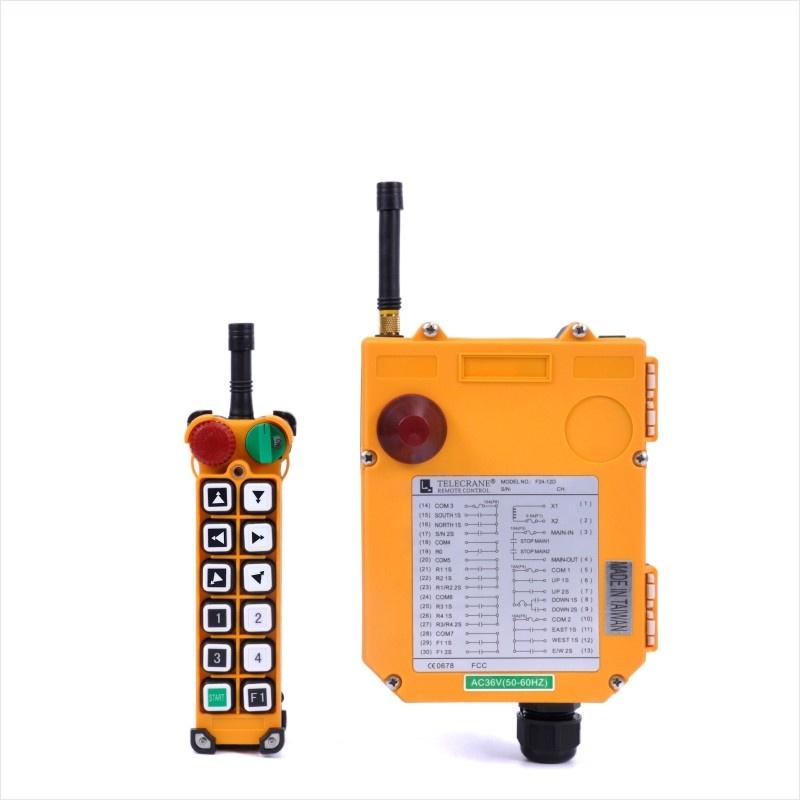

1. With 12 function buttons (11 double speed and 1 single speed) + E-stop + Rotary key switch.
2. Control contact is up to 20.
3. With battery voltage warning device, the power supply is cut off during low power.
4. Safety switch key is to prevent from unauthorized user.
5. Program the button function by computer software.
6. Up/down, east/west, south/north can be programmed to interlock or non-interlock, toggle or normal etc.
7. Spare buttons 1-4 can be programed to be normal, toggle, interlock, on/off etc.
8. Start button can be program to be start, normal, toggle function etc.
9. F1 button can be program to be normal, toggle function etc.
CE
FCC
Explosion-proof certificate
Crane Remote Control are used for tower cranes, overhead cranes, concrete pumps, concrete mixers, shipyard, etc., for industrial, agricultural, clean, drainage and other industries.
1. Overhead Crane Remote Control
Overhead crane is one of the most widely used areas of industrial overhead crane radio remote control systems. In particular, in metallurgy, automobile manufacturing, paper mills and material warehouses, are all equipped with industrial overhead crane radio remote control systems.
2. Mobile crane, truck crane wireless radio remote control system
Typically, the large car crane remote control system is also equipped with a data feedback device, the feedback device can be displayed on the operating system display system, the operator can monitor the data according to the display.
3. Concrete pump truck wireless radio remote control system
The traditional mode of concrete pump operation to be completed with the number of people, low efficiency, limiting the performance of concrete pump truck to play. The use of industrial remote control device can maximize the machine's performance. The driver locates the truck, then carry the remote control system to operate concrete pump truck.
4. Mining machinery
Mine visibility is low. With remote control systems, greatly increased the safety of operation, comfort and accuracy, saving investment and improve efficiency.
5. Crawler slag loader
The use of industrial remote control device, without changing the existing manual mode of operation to achieve the purpose of unmanned to complete the slag operation. The Eliminating the harsh environment, the unclear line of sight, the hidden dangers from high temperature. Improve the efficiency of cleaning operations, improve the working environment of metallurgical workers and reduce the labor intensity of workers.
Our Service Team
Our Technical Team
Exhibition in Brazil
Exhibition in Shanghai
Face of the broad market and with a solid professional competence, is the leadership of innovation and technology and it is committed to break through the limits to become one of the leaders of radio remote controls. With market-oriented and demand-oriented, we develop products and focus on the close cooperation between remote control solutions and customer needs. Therefore, we are very confident to meet the various requirements on the industrial wireless remote control.
More information on other product models, please contact us and we will recommend a more reasonable product model .
