Quick Details
-
Voltage:
-
30kw
-
Dimension(L*W*H):
-
1100/500/430mm
-
Weight:
-
4292 KG
-
Effective Volume:
-
8
-
Capacity:
-
4.0-8
-
ImpellerDiameter:
-
760
-
lmpellerRevolution:
-
191
-
Motor Power ForAgitation:
-
30
-
Weight Of SingleTank:
-
4292
Quick Details
-
Production Capacity:
-
4-8 cub meter /min
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
weida
-
Voltage:
-
30kw
-
Dimension(L*W*H):
-
1100/500/430mm
-
Weight:
-
4292 KG
-
Effective Volume:
-
8
-
Capacity:
-
4.0-8
-
ImpellerDiameter:
-
760
-
lmpellerRevolution:
-
191
-
Motor Power ForAgitation:
-
30
-
Weight Of SingleTank:
-
4292

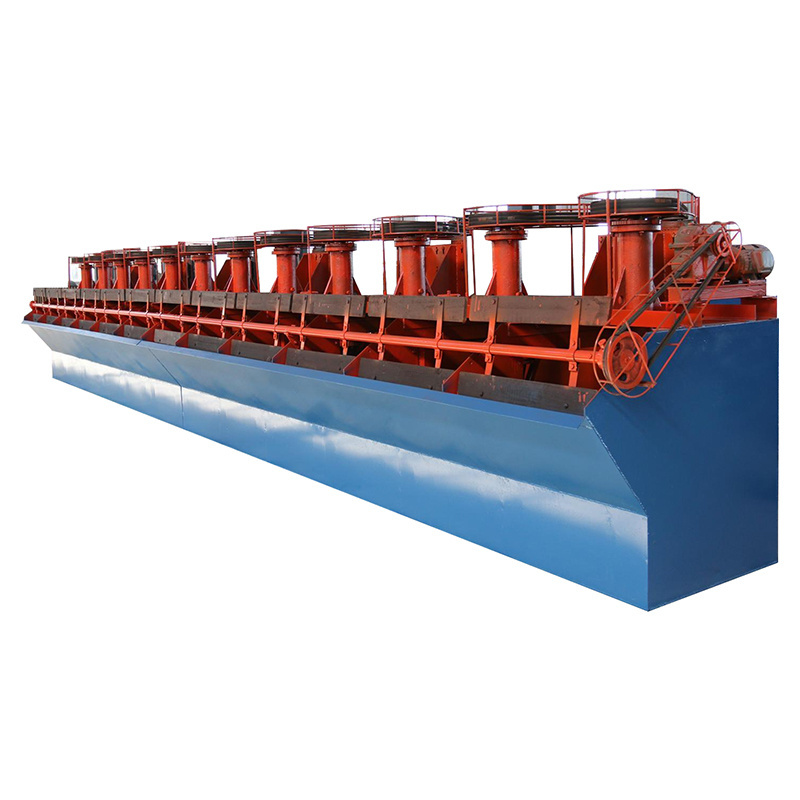

FLOTATION MACHINE
The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal.It is subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
PRODUCT DETAILS
1.
Belt
2.Motor
3.
Pulley
4. Bearing Seat
5.Motor
6. Screw Lifter
7.outlet
8.Flotation Cell
9.Rotor
10.
Flotation Column
11.
Air Inlet Pipe
12
.Feeding Pipe
13.
Feeding Branch Pipe
14.
Branch Inlet
15.
Scraper Device
16.
Scraper Blade
SCOPE OF APPLICATION
TECHNICAL PARAMETERS
|
SF Model
|
Diameter (mm)
|
Rotational Speed (r/min)
|
Capacity (m³/min)
|
Main Motor
|
|
Scraper Motor
|
|
Size (mm)
|
||
|
|
|
|
|
Model
|
Power (kw)
|
Model
|
Power(kw)
|
|
||
|
SF0.15
|
200
|
536
|
0.06-0.18
|
Y100-6
|
1.5
|
Y80L-4
|
0.55
|
500×500× 600
|
||
|
SF0.37
|
296
|
386
|
0.2-0.4
|
Y90L-4
|
1.5
|
Y80L-4
|
0.55
|
700×700× 750
|
||
|
SF-1.2
|
450
|
312
|
0.6-1.2
|
Y32M-6
|
5.5
|
90S-4
|
1.1
|
1100×1100× 1100
|
||
|
SF-2.8
|
550
|
268
|
1.5-3.5
|
Y180L-6
|
11
|
Y100L6
|
1.5
|
1700×1600× 1150
|
||
|
SF-4
|
650
|
220
|
2-4
|
Y200L-8
|
15
|
Y100L6
|
1.5
|
1850×2050× 1200
|
||
|
SF-8
|
760
|
191
|
4-8
|
Y250M8
|
30
|
Y100L6
|
1.5
|
2200×2900× 1400
|
||
|
SF-10
|
760
|
191
|
5-10
|
Y250M8
|
30
|
Y100L6
|
2.2
|
2200×2900× 1700
|
||
|
JIF-4
|
410
|
305
|
2-5
|
Y160L-6
|
11
|
Y100L6
|
1.5
|
1600×2150× 1250
|
||
|
JIF-8
|
540
|
233
|
4-10
|
Y200L26
|
22
|
Y100L6
|
1.5
|
2200×2900× 1400
|
||
|
JIF-10
|
540
|
233
|
4-12
|
Y200L26
|
22
|
Y100L6
|
2.2
|
2200×2900× 1700
|
||
AVAILABLE FROM STOCK
