Widely used in biological products, chemical and food industries. On the heat-sensitive substances such as blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BIOBASE
-
Voltage:
-
AC220V, 50/60Hz; 110V, 60Hz
-
Power:
-
0.9KW
-
Dimension(L*W*H):
-
/
-
Weight (KG):
-
120
-
Evaporation Capacity(kg/h):
-
/
-
Product name:
-
Pilot Freeze Dryer
-
Cold Trap Temperature:
-
≤-60℃
-
Cold Trap Capacity:
-
9.5L
-
Cold Trap Size (Diameter*H):
-
215*260mm
-
Vacuum Degree:
-
<10 Pa
-
Water Capture Capacity:
-
3kg/24h
-
Brand:
-
biobase
-
Gross Weight:
-
50kg
-
Packing Size(W*D*H):
-
705*590*530
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Capacity (kg/batch):
-
0.12 m2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Voltage:
-
AC220V, 50/60Hz; 110V, 60Hz
-
Power:
-
0.9KW
-
Dimension(L*W*H):
-
/
-
Weight (KG):
-
120
-
Evaporation Capacity(kg/h):
-
/
-
Product name:
-
Pilot Freeze Dryer
-
Cold Trap Temperature:
-
≤-60℃
-
Cold Trap Capacity:
-
9.5L
-
Cold Trap Size (Diameter*H):
-
215*260mm
-
Vacuum Degree:
-
<10 Pa
-
Water Capture Capacity:
-
3kg/24h
-
Brand:
-
biobase
-
Gross Weight:
-
50kg
-
Packing Size(W*D*H):
-
705*590*530

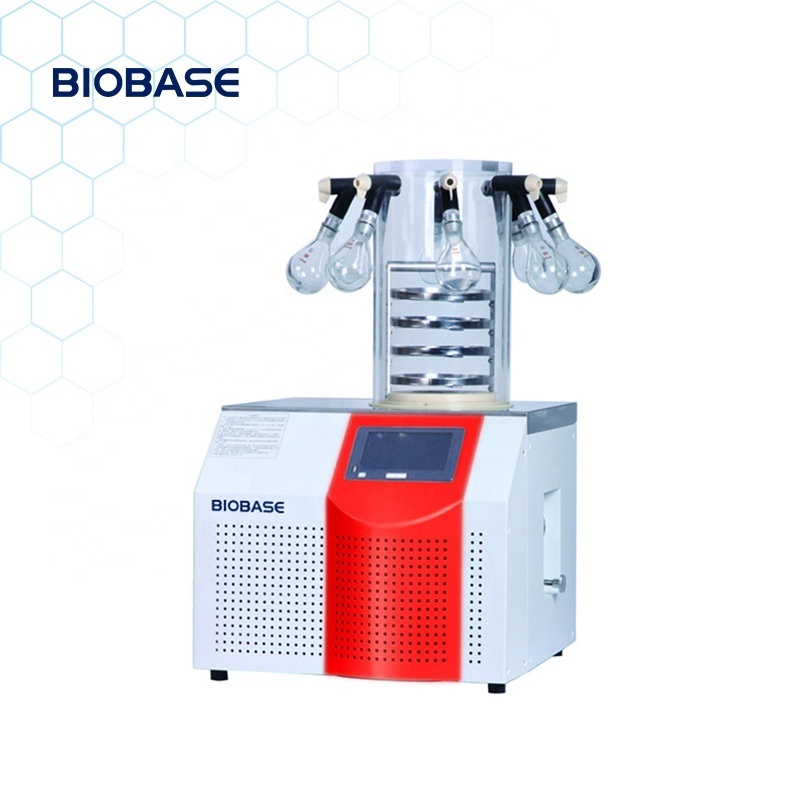

Laboratory
Mini Tabletop
Freeze Dryer
BK-FD10P
Product Description
Widely used in biological products, chemical and food industries. On the heat-sensitive substances such as blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Feature:
1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
Product Paramenters
|
Model
|
|
BK-FD10S
|
BK-FD10P
|
BK-FD10T
|
BK-FD10PT
|
||||
|
Type
|
|
Standard chamber
|
Standard chamber with 8 port manifold
|
Stoppering chamber
|
Stoppering
chamber with 8 port manifold |
||||
|
Freeze Drying Area
|
|
0.12 m²
|
|
0.09 m²
|
|
||||
|
Tray
|
|
4/6(Optional)pcs
|
|
3pcs
|
|
||||
|
Height Between Trays
|
|
76/50mm
|
|
70mm
|
|
||||
|
Cold Trap Temperature
|
|
-60℃
|
|
|
|
||||
|
Cold Trap Capacity
|
|
6.9L
|
|
|
|
||||
|
Cold Trap Size (Diameter*H)
|
|
Φ215*190mm
|
|
|
|
||||
|
Vacuum Degree
|
|
<10Pa
|
|
|
|
||||
|
Water Capture Capacity
|
|
3kg/24h
|
|
|
|
||||
|
Tray Size (D*H)
|
|
Φ200*20mm
|
|
|
|
||||
|
Freeze Drying Time
|
|
24h
|
|
|
|
||||
|
Loading Capacity/Shelf (Liquid)
|
|
0.3L
|
|
|
|
||||
|
Total Loading Capacity (Liquid)
|
|
1.2L
|
|
0.9L
|
|
||||
|
Drying Chamber Size (Diameter*H)
|
|
Lower circle Φ260mm, Upper circle Φ240mm Height 450mm
|
|
|
|
||||
|
Total Qty. Of Vial Φ22
|
|
260
|
|
195
|
|
||||
|
Total Qty. Of Vial Φ16
|
|
480
|
|
360
|
|
||||
|
Total Qty. Of Vial Φ12
|
|
920
|
|
690
|
|
||||
|
Refrigerant
|
|
R600a+R290+R23
|
|
|
|
||||
|
Cooling System
|
|
Air cooling
|
|
|
|
||||
|
Power Consumption
|
|
0.9KW
|
|
|
|
||||
|
Power Supply
|
|
AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase)
|
|
|
|
||||
|
Standard Accessory
|
|
Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover(for all models),
Conical-mouth flask 500ml*8pcs, Switch valve*8 pcs (only for model BK-FD10P/PT) |
|
|
|
||||
|
Optional Function & Accessory
|
|
Electric defrost function, Nitrogen gas filling valve, Oil mist filter(for all models)
800ml wide-mouth flask(for BK-FD10P/PT) |
|
|
|
||||
|
External Size (W*D*H)
|
|
600*560*374/820mm
|
|
600*560*374/880mm
|
|
||||
|
Package Size(W*D*H)mm/
Gross Weight |
Main Body
|
670*700*560 (80kg)
|
|
|
|
||||
|
|
Drying Chamber
|
400*400*620 (15kg)
|
|
|
|
||||
|
|
Vacuum Pump
|
570*240*360 (22kg)
|
|
|
|
||||
