Quick Details
-
Model Number:
-
APDM
-
Max. Current:
-
630A
-
certification:
-
ISO9001,CE,TEST REPORT
-
ORIGINAL:
-
CAVANNA
-
OEM:
-
OEM
-
MATERIAL:
-
PA66,CU,AL
-
BRAND:
-
SMICO/CAVANNA
-
Current:
-
400A
-
insulation level:
-
1000V
-
Frequency:
-
50/60HZ
-
Short time current(1s):
-
12KA
-
Dinamic current(crest):
-
50KA
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
500V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SMICO,CAVANNA
-
Model Number:
-
APDM
-
Max. Current:
-
630A
-
certification:
-
ISO9001,CE,TEST REPORT
-
ORIGINAL:
-
CAVANNA
-
OEM:
-
OEM
-
MATERIAL:
-
PA66,CU,AL
-
BRAND:
-
SMICO/CAVANNA
-
Current:
-
400A
-
insulation level:
-
1000V
-
Frequency:
-
50/60HZ
-
Short time current(1s):
-
12KA
-
Dinamic current(crest):
-
50KA
-
Certification:
-
CE
You are here: Home >> Aerial Electric Fittings >>

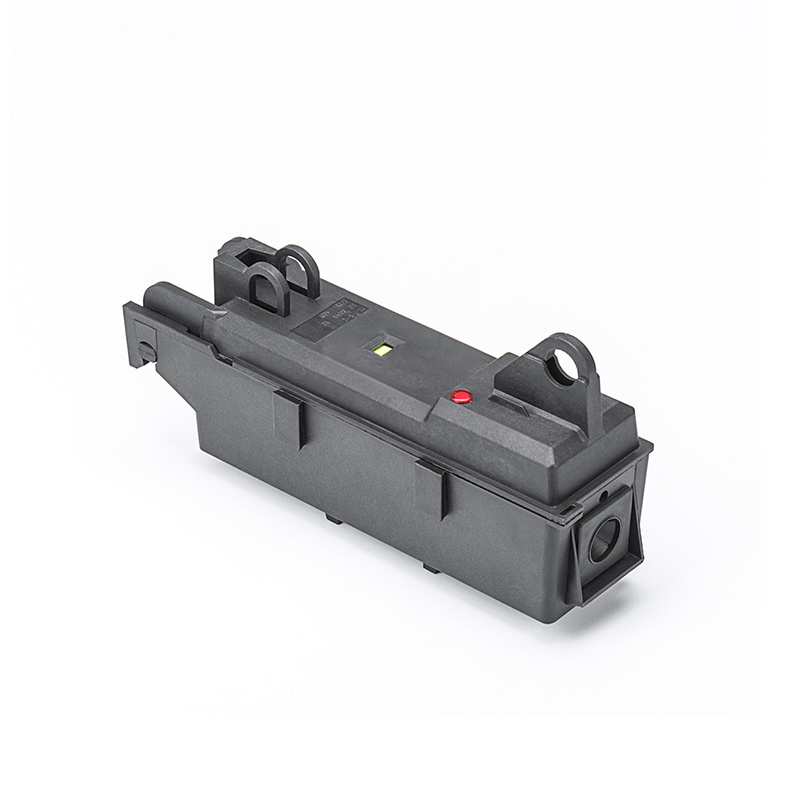

SMICO APDM 400A Three Poles Mounted Fuse Box/Fuse Switch Discount
| voltage | 500V |
| insulation level | 1000V |
| frequency | 50/60HZ |
| Operational current with fuse | 400A |
| Operational current with blades | 800A |
| Installation category | AC22 |
| Interruption capacity | 100KA |
| Minimum mechanical life | 1000 |
| Weight | 1.8kg |
| Protection range | IP23 |
Good electrical specification, strong mechanical strength,tensile bending intension of the e poxy glass fiber rod of internalload bearing is double than normal rolled products,8-10 times of high strength porcelain material, can effectively improve the reliable safe operation.
Fine anti-polIution, strong prevent flash accident, and the wet withstand voltage and pollution withstand voltage is 2-2.5 times than the same creepage distance porcelain insulator,and not to cleanup,can safe operate in the serious pollution areas.
Function:
- it is used either as an operation or protection device for LV lines.
- used with NT-2 size fuses offering a maximum of 400A of line protection without blades.
- In case blades are used,the maximum switching load would be 630A.
- It is manufactured in reinfored fiberglass polyamide
- and fulfills all the necessary requirements for outdoor installation and operation.
In the APDM model:
- the connection is made with terminals lugs
- and both models can be installed with single phase or three phase opening.
- They have special sockets to obtain a compact set.
- The switch is operated from the ground with an operating rod and also has an indicator to show if the fuse is placed.
- It can be sealed with security ties.
