Quick Details
-
Place of Origin:
-
Hubei, China
-
Dimension(L*W*H):
-
1230*730*1155mm
-
Weight:
-
637
-
Rated power/speed:
-
2200
-
Key Selling Points:
-
Global Warranty Service
-
Title:
-
motor 6ct 8.3 engine for sale
-
Engine Model:
-
6CT8.3
-
Application:
-
Trucks, Drill, Construction /Mining Eqpt, Marine
-
Quality:
-
high-quality
-
Warrenty:
-
1 year
-
Packing:
-
Wooden case
-
RPM:
-
2200
-
Engine type:
-
6 cylinders, In-line
-
Payment:
-
T/T
Quick Details
-
Displacement:
-
8.3L, 8.3L
-
Emission Standard:
-
EPA Tier3
-
Power:
-
160KW-194KW
-
Place of Origin:
-
Hubei, China
-
Dimension(L*W*H):
-
1230*730*1155mm
-
Weight:
-
637
-
Rated power/speed:
-
2200
-
Key Selling Points:
-
Global Warranty Service
-
Title:
-
motor 6ct 8.3 engine for sale
-
Engine Model:
-
6CT8.3
-
Application:
-
Trucks, Drill, Construction /Mining Eqpt, Marine
-
Quality:
-
high-quality
-
Warrenty:
-
1 year
-
Packing:
-
Wooden case
-
RPM:
-
2200
-
Engine type:
-
6 cylinders, In-line
-
Payment:
-
T/T
Products Description
|
S

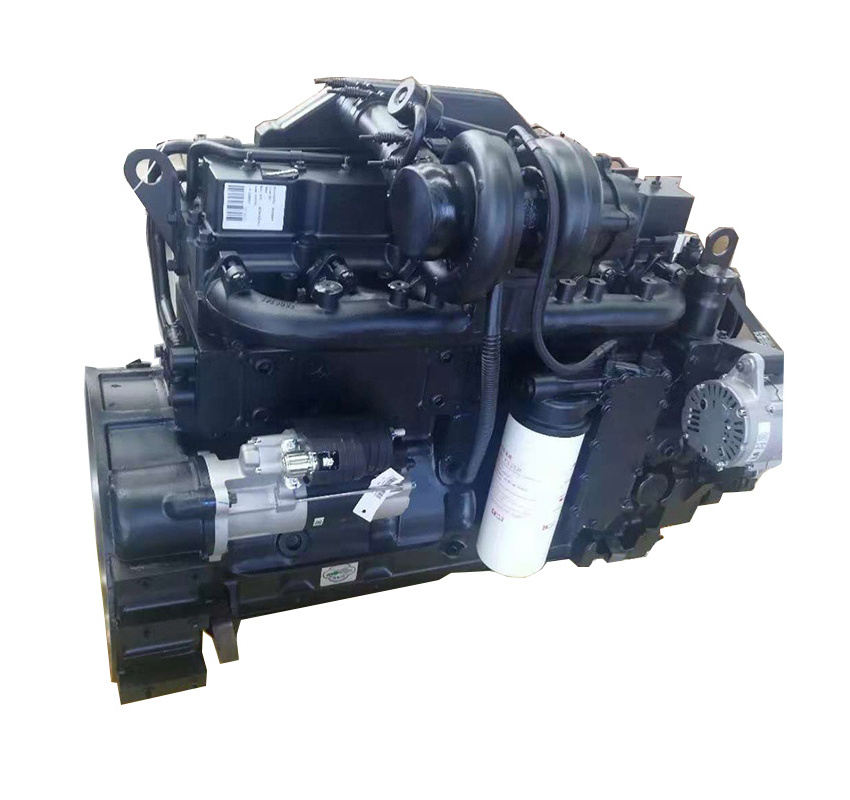

pecifications for Engine 6CT8.3
|
|
|
|
|
|
|||||
|
Engine Model
|
6CT8.3
|
Rated Power
|
215HP-260HP
|
Aspiration
|
Inline 6, Turbo
|
|||||
|
Rated Speed
|
2200RPM
|
Peak Torque
|
1080NM
|
stroke
|
4-stroke
|
|||||
|
Displacement
|
8.3L
|
Stroke
|
114X135MM
|
Code Style
|
ECM
|
|||||
|
Fuel
|
Diesel
|
Package
|
Wooden case
|
Weight
|
647KG
|
|||||
|
Length
|
1230MM
|
Width
|
730MM
|
Height
|
1155MM
|
|||||
Main features
• advanced design, exquisite manufacturing technology, reliable and durable, suitable for high intensity and heavy load operation under severe working conditions
• high pressure fuel pump, more sufficient combustion under high injection pressure, less energy loss, strong power, strong fuel adaptability, lower emissions
• Holset supercharger with integral exhaust by-pass valve, low speed responsiveness and high power performance
• integral cylinder design, the number of parts is about 25% less than similar products, lower failure rate, more convenient
maintenance
• the cylinder liner is designed with platform honing and corrosion-resistant high nickel cast iron piston, which greatly reduces oil loss, enhances durability and provides longer service life
• advanced design, higher engine power ratio, up to 23.4 kw/l
• three-stage combustion filters ensure a balanced level of particle dispersion, protect key components of the fuel system, and maximize engine life
• the electronic control system can switch working modes intelligently according to the environment and operating conditions, and has self-diagnosis, alarm and remote monitoring functions
• mature intelligent electronic control technology, improve the overall performance of the engine, according to the application requirements can be tailored to the engine specifications
• high pressure fuel pump, more sufficient combustion under high injection pressure, less energy loss, strong power, strong fuel adaptability, lower emissions
• Holset supercharger with integral exhaust by-pass valve, low speed responsiveness and high power performance
• integral cylinder design, the number of parts is about 25% less than similar products, lower failure rate, more convenient
maintenance
• the cylinder liner is designed with platform honing and corrosion-resistant high nickel cast iron piston, which greatly reduces oil loss, enhances durability and provides longer service life
• advanced design, higher engine power ratio, up to 23.4 kw/l
• three-stage combustion filters ensure a balanced level of particle dispersion, protect key components of the fuel system, and maximize engine life
• the electronic control system can switch working modes intelligently according to the environment and operating conditions, and has self-diagnosis, alarm and remote monitoring functions
• mature intelligent electronic control technology, improve the overall performance of the engine, according to the application requirements can be tailored to the engine specifications
Send Inquiry
>>>
Click to Contact Us Now
<<<
Main Engine Model
|
KTA19
|
KTAA19
|
KTTA19
|
QSk19
|
QSKTAA19
|
|
NT855
|
NTA855
|
NTAA855
|
KT38
|
KTA38
|
|
KT50
|
KTA50
|
KTTA50
|
M11
|
MTA11
|
|
MTAA11
|
4BT
|
6BT
|
6CT
|
ISF
|
Products include
|
Injector
|
Cylinder head
|
Crankshaft
|
|
Camshafts
|
Valve train parts
|
Connecting rod
|
|
Cylinder liners
|
Piston
|
Piston ring
|
|
Bearings and bush
|
Fuel pump
|
Oil pumps
|
|
Water pump
|
Air compressors and parts
|
Turbocharger
|
|
Flywheels and vibration dampers
|
Gasket
|
Bolts
|
|
Starter
|
Alternator
|
Related electrical parts
|
About us
Chongqing Ogem Trading Co., Ltd
Chongqing Ogem Trade Co., Ltd has been specialized in service and supply of diesel engines and parts over 15 years, mainly focus on diesel engine models NT855, KTA19, KTA38, KTA50, QSM11, 4BTA, 6BTA, 6CTA etc. In April 2018, Ogem was launched to provide better more service to global markets, with alternative quality parts for Generators, Mining& Truck, Marine Engines and Construction Equipments.
Warehouse
Our team
Our Service
Pre-Sales Service
*
Inquiry and consulting support.
* Sample testing support.
* View Factory.
* Sample testing support.
* View Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Certifications
Recommend Products
The five-star high praises were commented by our clients
Packing & Delivery
Packing
Acoording to your ordered goods, we offer three types of outer packing as following. About package of engine parts, we can use
neutral packing and original packing in accordence with your requests.(If have other requests, pls negotiate with supplier)
Delivery
According to your requests, we provide three shipping way as followed. We have some long-term cooperated forwarders. So don't worry, we can help you to handle everythings.
FAQ
Q1: What is the quality of your parts?
A: We supply 100% engine assy and engine parts. And if you think the price of genuine parts is high, we also can provide OEM parts with good quality to you.
Q2: How about the delivery time?
A: Normally, within 3-5 days after payment, we pack done all goods and then delivery to our farwarders.
Q3: What engine model you supply?
A: IS/QSF2.8, IS/QSF3.8, 4B3.9, 6B5.9, IS/QSB5.9, IS/QSB6.7, 6C8.3, IS/QSM11, NTA/QSNTA855, KTA/QSKTA19, KTA/QSKTA38, KTA50, etc.
Q4. What is your popular engine model?
A. 1. KTTA19-C700 used on dump truck 755B, we sold 8 units in 2019.
2. new brand QSM11 used on Belaz dump truck 7540 and Doosan MEGA500, we sold 10 units in 2019.
